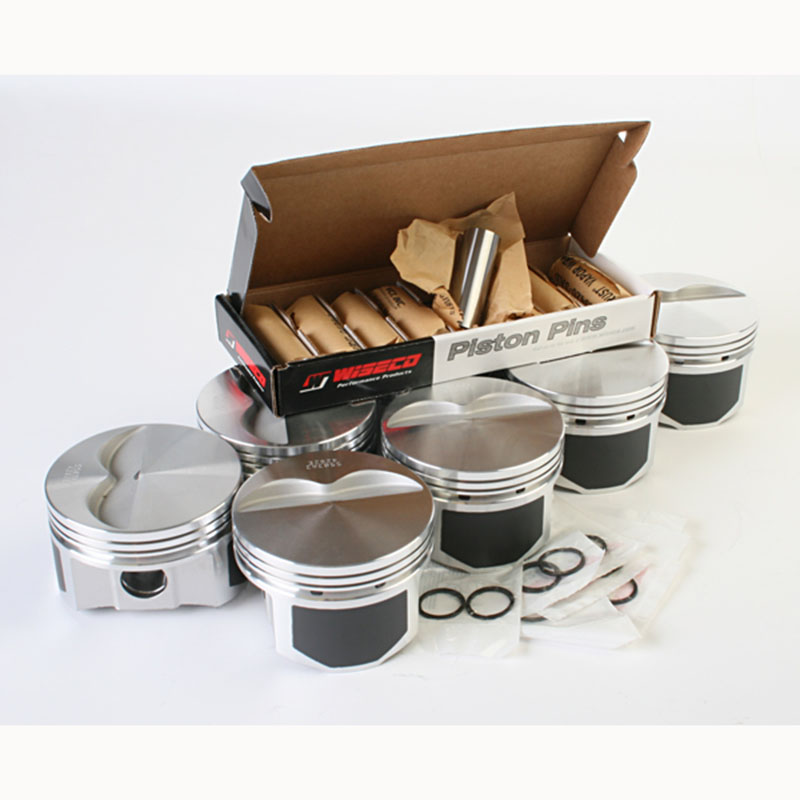

WISECO Performance Products: ProTru Street Forged Pistons & Rings Set
State-of-the-art quality minus the cost. Featuring forged 4032 aluminum with as forged dome and valve pockets. Over-sized, symmetrical, radiused valve pockets. Precision finished pin bores with pin oilers. ArmorGlide™ skirt coating. Features 1/16", 1,16" and 3/16" plasma moly rings. Sets of 8.
- Performance Quality at a Budget Price
- 4032 Forged Aluminum Dome with Crown Features & Oil Drain Backs
- ArmorGlide® Skirt Coating is a Standard Feature
- Chromium Alloy Steel Piston Pins & Spirolox® Included
Part Type: Pistons and Rings Set
Model: ProTru Street 4032 Forged Aluminum
Application: Chrysler 340/360 V8
Piston Style: Flat Top
Cylinder Bore: 4.060”
Compression Distance: 1.460”
Crankshaft Stroke/Rod Length: 4.000” with 6.123" Connecting Rod (414ci)
Deck Height (Zero Deck): 9.583
Dome Volume: -5cc
Compression Ratio: 4.000" Stroke w/65cc Heads: 11.6
Compression Ratio: 4.000" Stroke w/68cc Heads: 11.2
Piston Material: Forged 4032 Aluminum Alloy
Intake Valve Relief Depth: N/A
Intake Valve Relief Diameter: N/A
Exhaust Valve Relief Depth: N/A
Exhaust Valve Relief Diameter: N/A
Accumulator Groves: No
Forced Pin Oilers: Yes
Gas Ports: No
Skirt Coating: ArmorGlide Skirt Coating
Lock Removal Indents: No
Average Piston Weight: N/A
Wrist Pin Style: Floating
Wrist Pins Included: Yes
Wrist Pin Size: 0.984"
Average Wrist Pin Weight: N/A
Pin Lock Included: Spirolox
Ring Grove Sizes: 1/16”, 1/16”, 3/16”
Piston Rings Included: Yes, Plasma Moly Rings
Manufacturer: Wiseco Performance Products
Manufacturer's Part Number: PTS528A6
Weight: 14 lbs.
Warranty: Race Application, No warranty expressed or implied
Quantity: Sold as Sets of 8
Note: Plasma Moly File Fit Ring Set.
|
