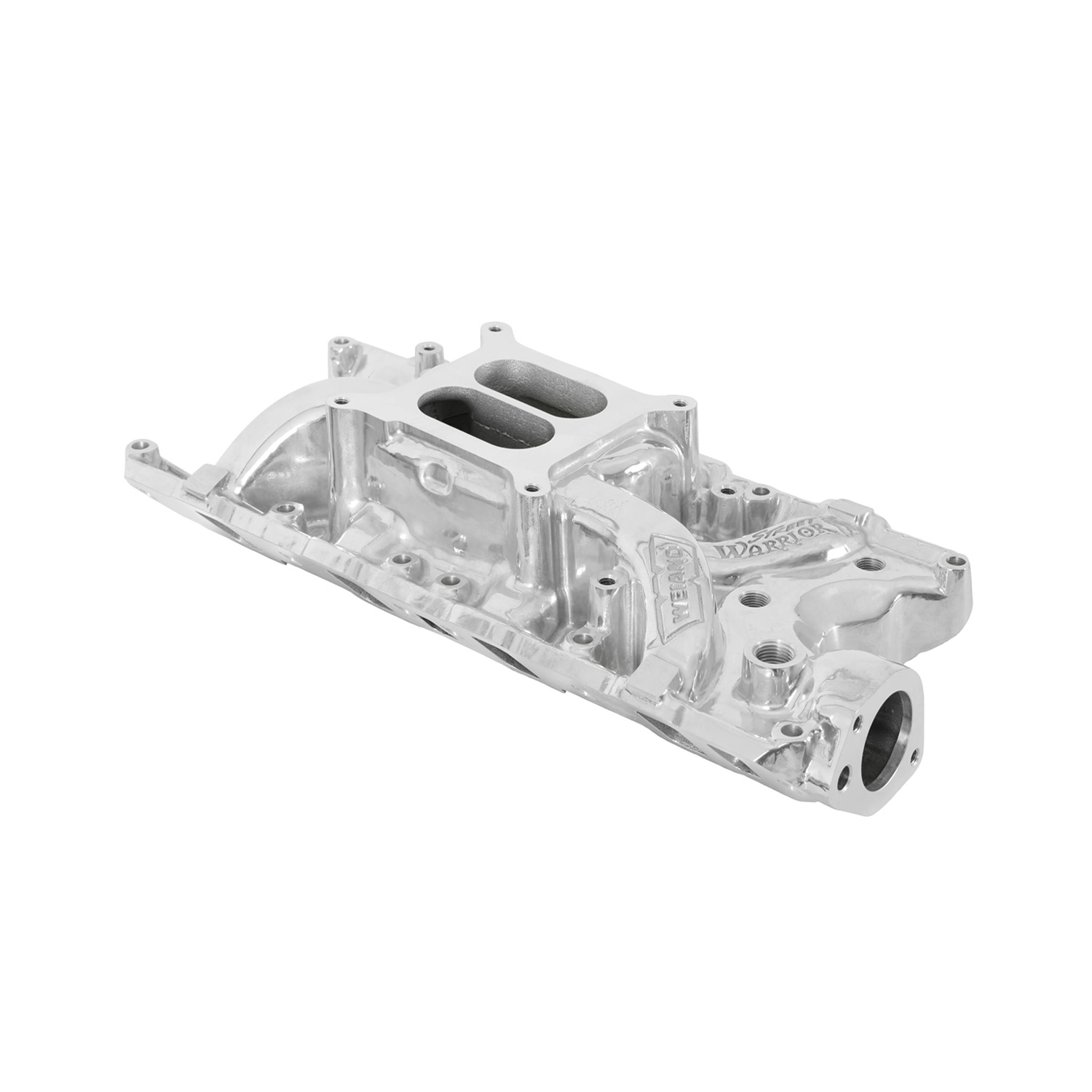

Intake Manifolds
Looking for the ultimate in high performance street intakes? A lot has changed in the performance world since the time many of the manifolds on the market were introduced 20+ years ago. With the popularity of larger stroker engines and more efficient cylinder head/cam designs has come a need for manifolds to support these larger displacements. Weiand recognized this and has developed a new line of Street Warrior™ manifolds designed with Computational Fluid Dynamics (CFD) to generate maximum horsepower and torque out of today's engines. Dyno testing of the new Weiand 8124 found an additional 14 peak HP and 13lb/ft torque over brand E – p/n 2121. Average torque was increased by 9.5 and HP by 8.5 from 2,200 to 6,000 RPM! Testing was performed on a 302 with high flow 58cc heads, 268/279 dur/.522 lift Lunati cam P/N 51023, 600 cfm carb & 1-5/8" headers.
Features:
- Low Rise Dual Plane Design builds maximum torque for street performance engines
- Polished Finish
- Square Bore Carburetor Mounting Flange
- Permanent mold casting process for lighter, smoother & better looks
- Exhaust crossover for improved street drivability
- Power band: Idle-5500 RPM
- Height: Front 3.82", Rear 4.75"
- Port Size: 1.82” height 1.02" width
Part Type: Intake Manifold, Carbureted
UPC: 090127648032
Style: Dual Plane
Finish: Polished
Color: Polished
Material: Aluminum
Style: Dual Plane
EGR: No
1-Piece/2-Piece: 1-Piece
Operating Range Flow: Idle
Operating Range High: 5500 RPM
Manifold Pad Height: 4.285"
Manifold Rear Height: 4.75"
Manifold Front Height: 3.82"
Port Height Width: 1.02"
Port Size Height: 1.82"
Cast/Fabricated: Cast
Carburetor Flange: Square Bore
Carburetor Quantity: 1
Warranty: Limited 1-Year
Quantity Sold as: Individually
|
