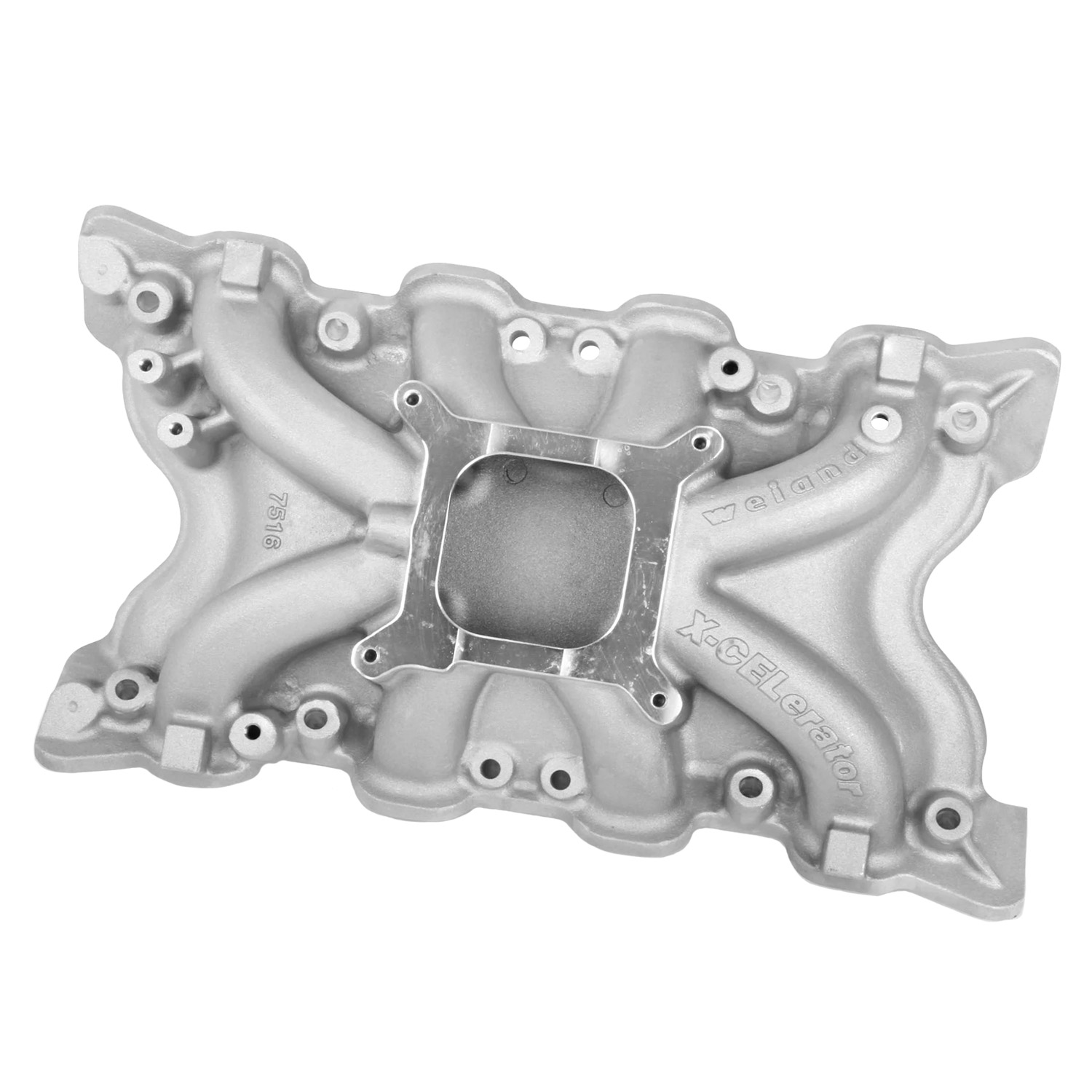

Intake Manifolds
The WEIAND X-CELerator™ SERIES: 360°, single-plane, open plenum manifold designed primarily for high-performance street, drag, marine and oval track use. With an effective rpm range of 2000 to 6500 rpm, this series works best with a higher compression ratio, 280° or more of cam duration and headers with 1-5/8" primary tubes. Being a mid- to high-rpm manifold, a standard transmission, or an automatic transmission with a 3000 rpm stall converter, is highly recommended. The carburetor mounting pad is designed to accept current performance aftermarket carburetors. The WEIAND X-CELerator Series is the ultimate street/strip performance manifold for single 4V applications where increased torque and power is required in the mid and high rpm ranges.
Features:
- Single Plane Design
- Square Carburetor Mounting Flange
- Power band: 1500-7000 RPM
- Height: Front 4.28", Rear 5.36"
- Port Size: 1.95” height 1.34" width
- No EGR provision
- New updated casting design
Part Type: Intake Manifolds, Carbureted
UPC: 032474751607
EGR: No
Intake Color: Natural
Intake Style: Dual Plane
Intake Material: Aluminum
Intake Manifold Height: 4.820"
Basic Operating RPM Range: 1,500-7,000
Intake Section Included: Complete
Carburetor Quantity: 1
Engine Block Deck Height: Standard Deck
Manifold Pad Height: 4.82"
Manifold Rear Height: 5.36"
Manifold Front Height: 4.28"
Port Height Width: 1.34"
Port Size Height: 1.95"
1 Piece/2-Piece: 1-Piece
Hardware Included: No
Gaskets Included: No
Engine Deck: OEM
Carburetor Flange: Square Bore
Quantity Sold as: Individually
|
