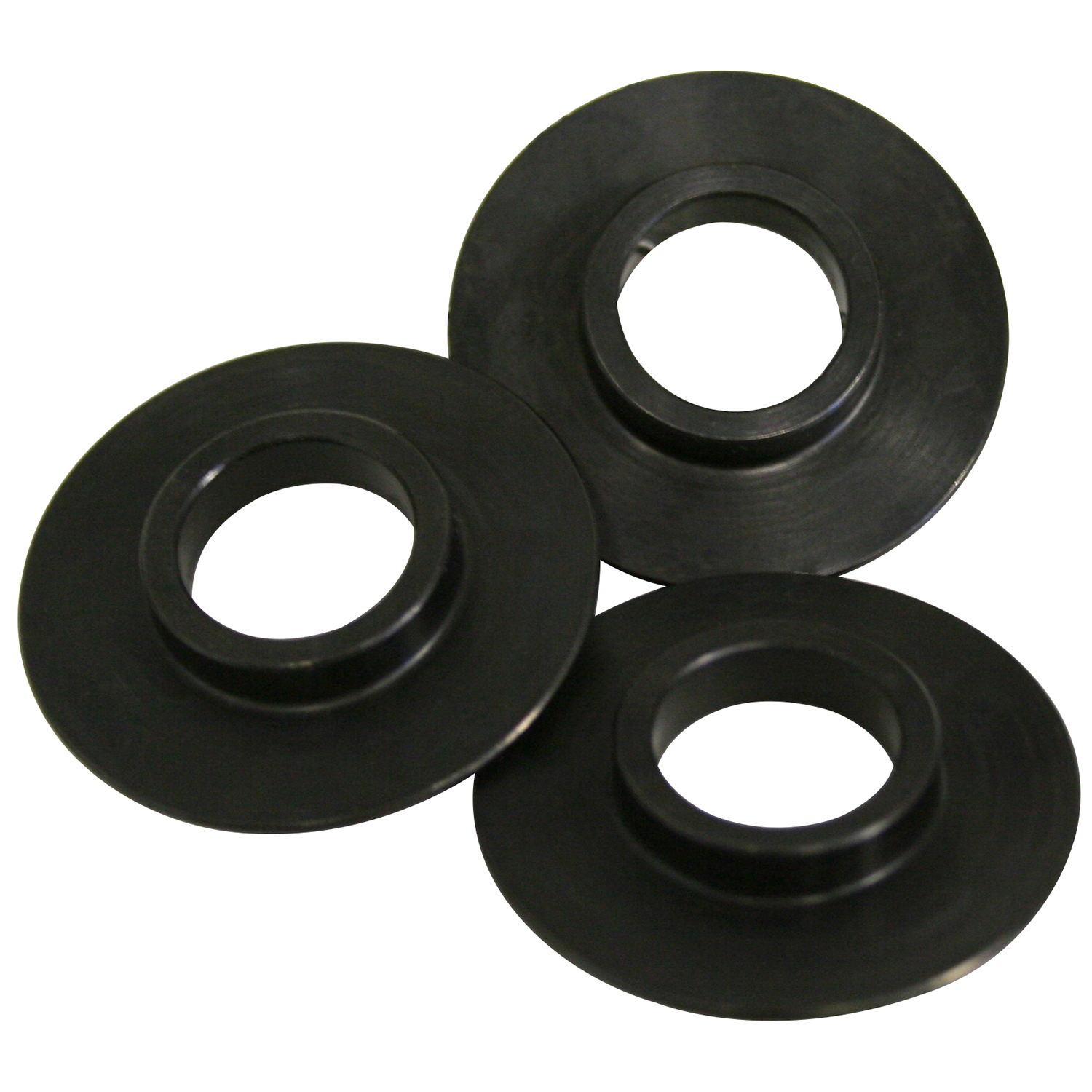

VTO Valve Spring Locators
CNC machined chrome moly steel for accuracy and durability. Heat-treated and black oxided for protection. With the locating shoulder on the instide, locators have a smaller O.D., requiring less machining of the valve spring pocket. .060" Thick. Sets of 16.
Part Type: Valve Spring I.D. Locators
Locator Cup Outside Diameter: 1.270"
Locator Cup Inside Diameter: .505"
Valve Spring Max Outside Diameter: 1.290"
Shoulder Diameter: .675"
Locator Cup Thickness: .060"
Material: CNC Chrome Moly Steel
Manufacturer's Part Number: 6138
Valve Spring Locator Cup Weight: 1.0 lbs.
Warranty: Race Application, No warranty expressed or implied

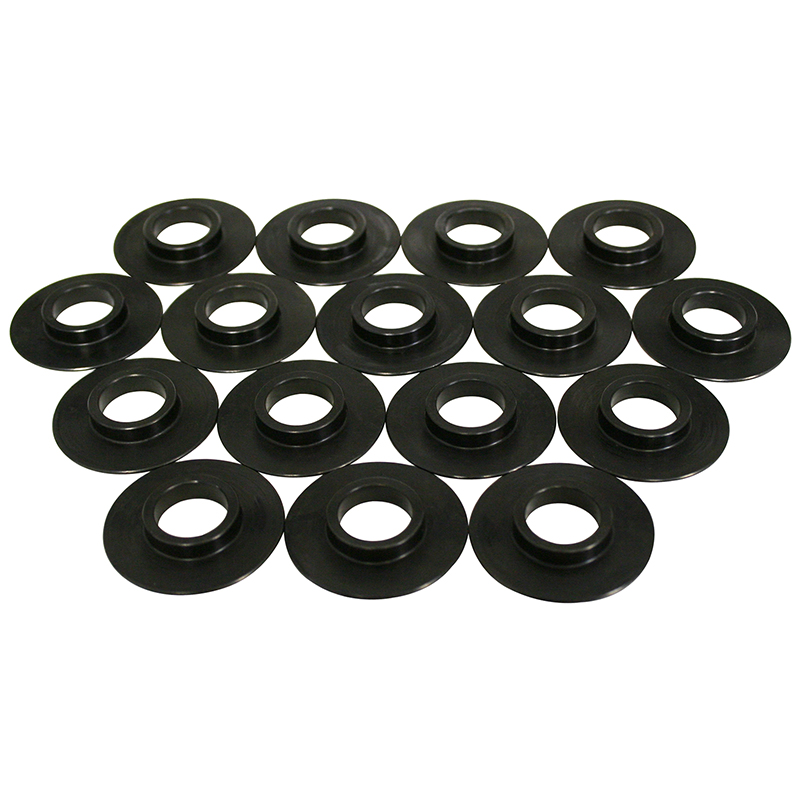

Quantity: Sold in Sets of 16
