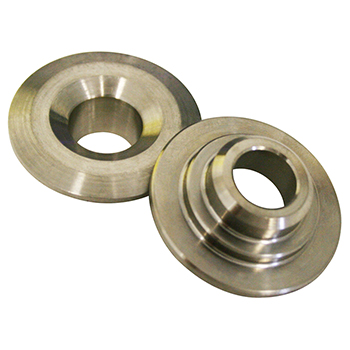

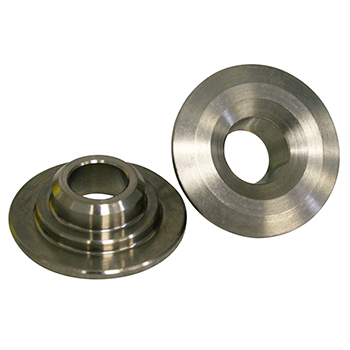

VTO American Made Titanium Retainers
These high quality American made retainers are designed for the most demanding engine builder. Up to 50% lighter than steel retainers. Manufactured to precise tolerances of special 6AL 4V titanium for maximum strength and durability. Set of 16.
Part Type: Valve Spring Retainers
Spring Outside Diameter: 1.250"
Valve Lock Angle: Std. 7 Degree
Valve Stem Size: 11/32"
Height: Standard
Retainer Outside Diameter (A): 1.225" (See Chart Above)
Outer Spring Inside Diameter (B): .870"
Middle Spring Inside Diameter (C): .650"
Inner Spring Inside Diameter (D): NA
Material: 6AL4V Titanium
Valve Spring Type: Single/Dual
Valve Spring Retainer Weight: 11 Grams Each
Manufacturer: VTO
Manufacturer's Part Number: 3350
Weight: 1.0 lbs.
Warranty: Race Application, No warranty expressed or implied

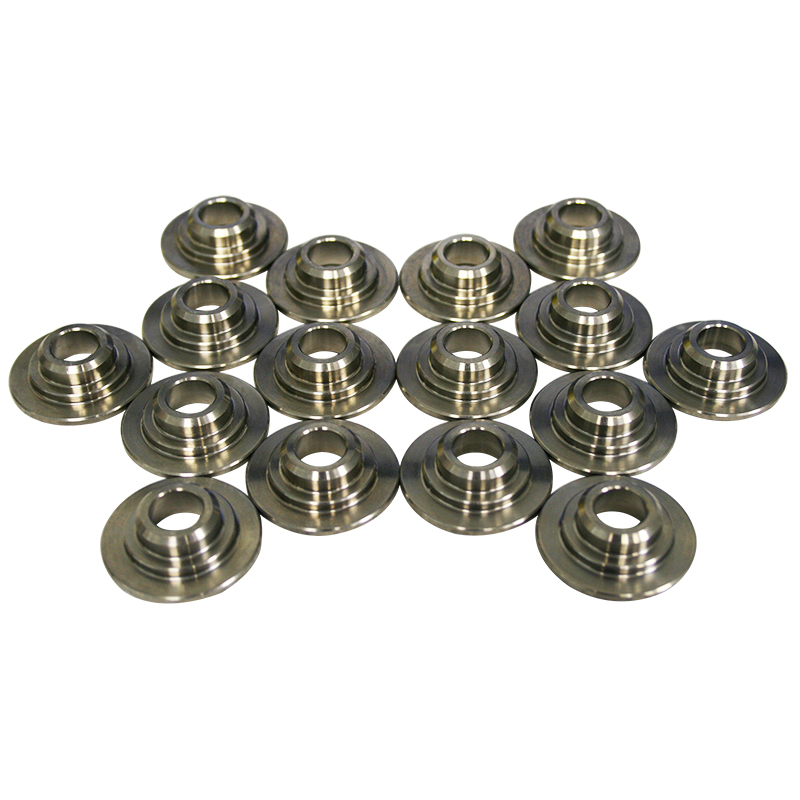

Quantity: Sold in Sets of 16
|
