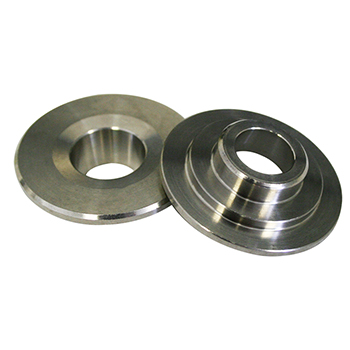

VTO American Made Titanium Retainers
These high quality American made retainers are designed for the most demanding engine builder. Up to 50% lighter than steel retainers. Manufactured to precise tolerances of special 6AL 4V titanium for maximum strength and durability. Set of 16.
Part Type: Valve Spring Retainers
Spring Outside Diameter: 1.437"-1.550"
Valve Lock Angle: 10 Degree
Valve Stem Size: All
Height: Standard
Retainer Outside Diameter (A): 1.440" (See Chart Above)
Outer Spring Inside Diameter (B): 1.050"
Middle Spring Inside Diameter (C): .700"
Inner Spring Inside Diameter (D): NA
Material: 6AL4V Titanium
Valve Spring Type: Dual
Valve Spring Retainer Weight: 14 Grams Each
Manufacturer: VTO
Manufacturer's Part Number: 3400
Weight: 1.0 lbs.
Warranty: Race Application, No warranty expressed or implied

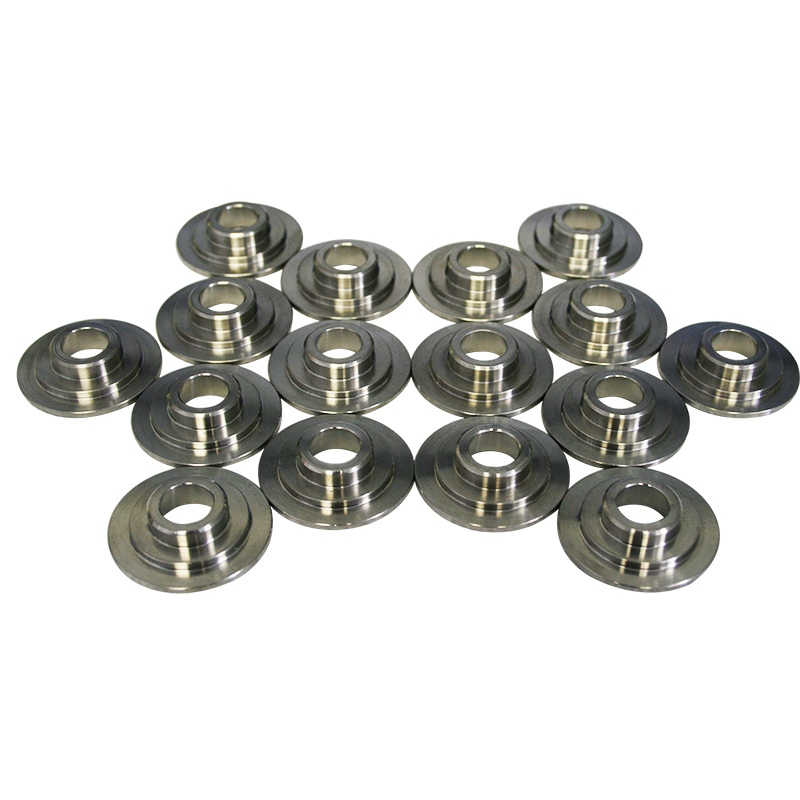

Quantity: Sold in Sets of 16
|
