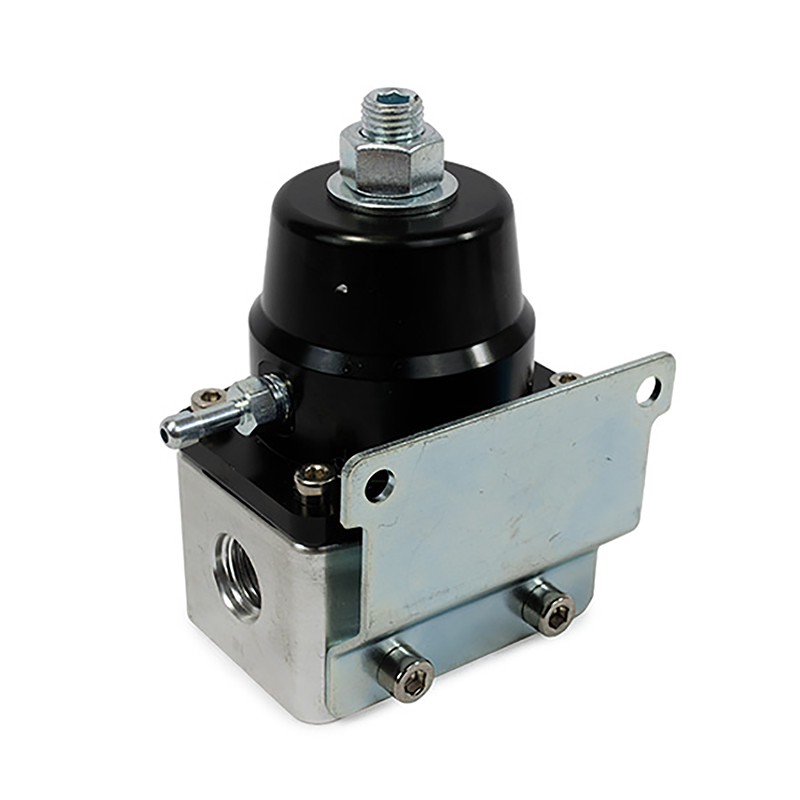

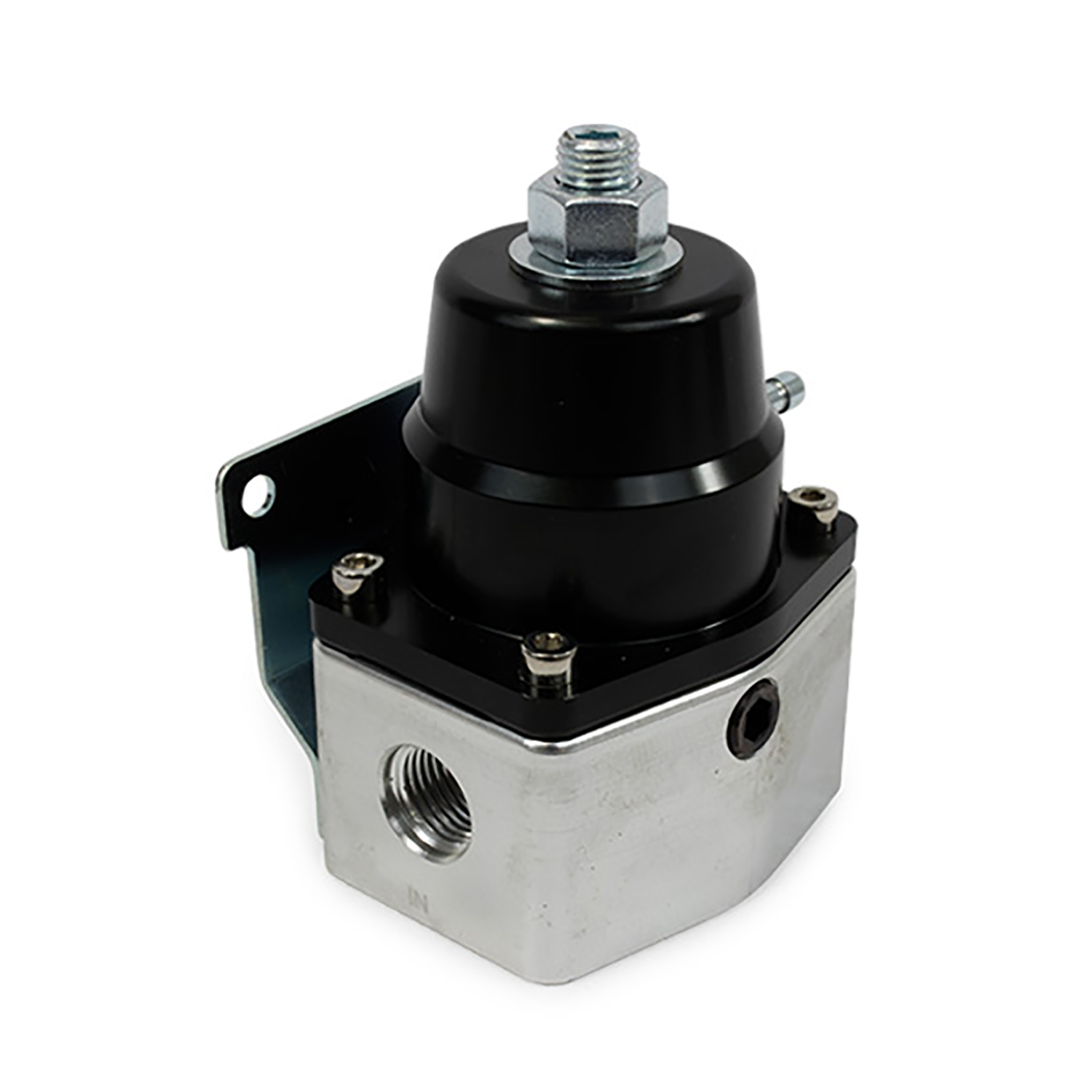

Power Products Billet 2-Port Regulators
CNC machined from lightweight billet aluminum. The internal spring and diaphragm are composed of high quality materials to guarantee consistant and reliable performance. 1/8" NPT Gauge port. Mounting bracket included.
Part Type: Fuel Pressure Regulator
Regulator Style: Return (Bypass)
Regulator Location: In-Line
Alcohol Compatible: No
Diesel Compatible: No
Operating Pressure: 40-75 psi
Boost/Vacuum Reference Port: Yes
Boost/Vacuum Rise Ratio: 1:1
Gauge Port: Yes
Mounting Bracket Included: Yes
Fittings Included: No
Rebuildable: Yes
Rebuild Kit Part Number:
Inlet Quantity: 1
Inlet Attachment: Female Threads
Inlet Size: -6 AN O-Ring
Outlet Quantity: 2
Outlet Attachment: Female Threads
Outlet Size: -6 AN O-Ring
Return Attachment: NA
Return Fitting Size: NA
Regulator Material: Billet Aluminum

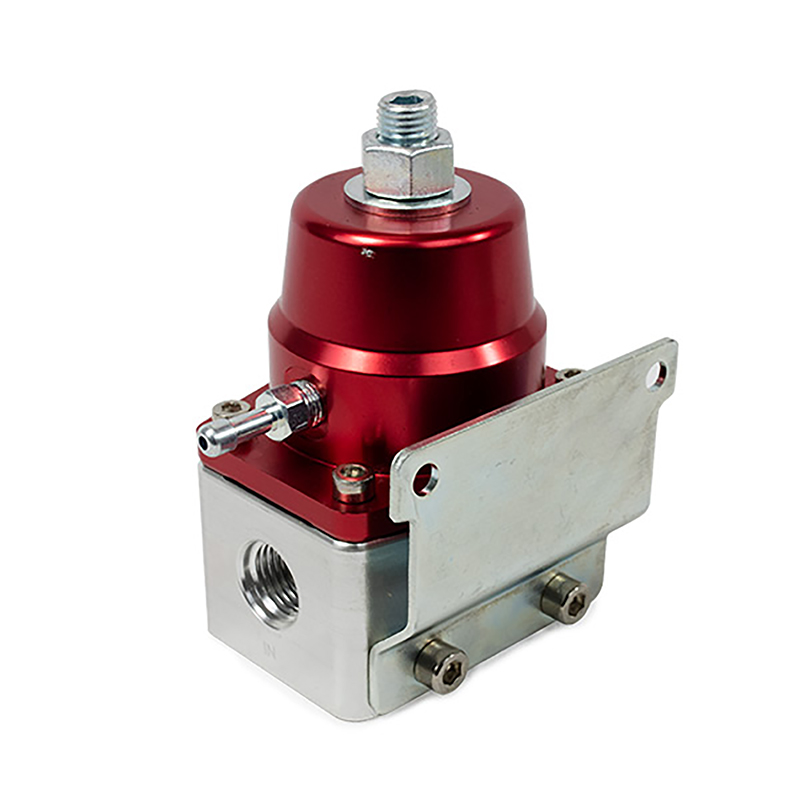

Regulator Finish: Black or Red
Manufacturer: Power Products
Manufacturer's Part Number: PVT29-4293
UPC: 859181001760
Weight:
Warranty: Limited Warranty
Quantity: Sold as Each
|
