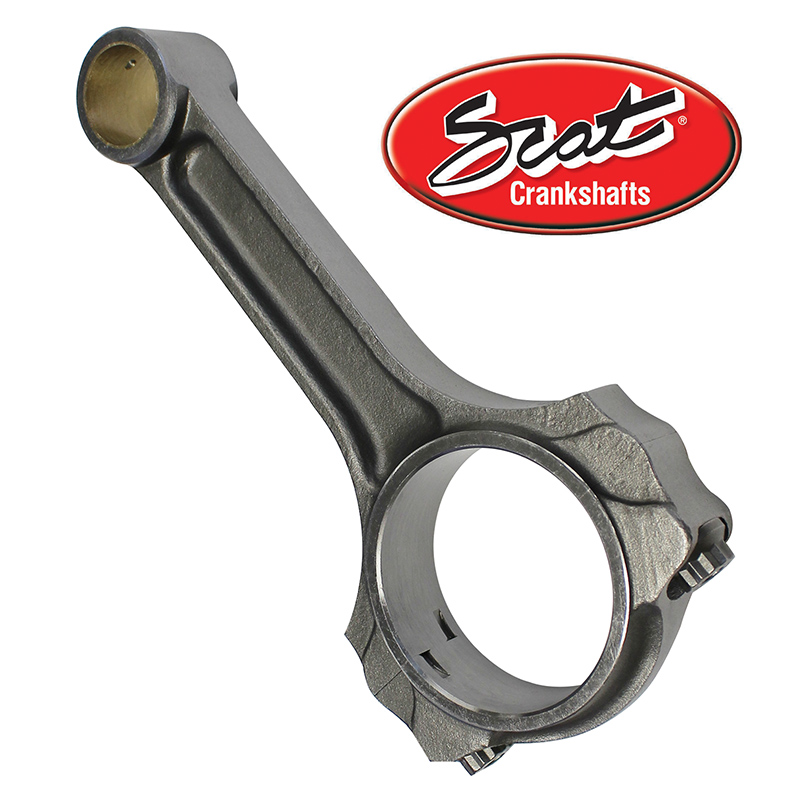

Scat 4340 Forged I-Beam Rods
Incorporates the strength and technology of the H-beam rod. One rib cap design for added strength and bearing support. Polished beams to eliminate stress risers. Dowels and 7/16" cap screw bolts for increased horsepower capabilities. Profiled for stroker clearance.
- SCA 4340 steel forgings
- Lightweight I-Beam Design
- Single Rib Cap Design for Added Strength & Bearing Support
- 7/16" APR 8740 cap screws
Part Type: Connecting Rods
Application: Chevrolet Small Block
Connecting Rod Beam Style: I-Beam
Material: 4340 Forged Steel
Connecting Rod Finish: Polished and Shot-Peened
Magnafluxed: No
Connecting Rod Length Center to Center: 5.700”
Connecting Rod Journal: 2.100”
Housing Bore: 2.225”
Pin Bore Diameter: .927”
Big End Width: .940”
Pin End Width: 1.000”
Remanufactured: No
Pin Fit: Bushed
Typical Rod Weight: 590g
Weight Matched Set: Yes
Cap Alignment: Alignment Sleeve
Stroker Clearanced: Yes
Fastener Type: Cap Screw
Fasteners: 7/16” ARP 8740
Fastener Head Style: 12 Point
Fastener Yield Strength: 180,000 psi
Fastener Torque: 68 ft/lbs. with ARP moly lube on threads
Recommended Bearings: Clevite CB663, King CR807, ACL8B663, Enginetech BB253
Manufacturer: Scat
Manufacturer's Part Number: 2-ICR5700-7/16
UPC: 8460901011040
Connecting Rod Set Weight: 11.80 lbs.
Warranty: Scat's conditional and limited warranty covers manufacturing defects only, for a period of one year from date of purchase. Any parts returned for Scat inspection, under Scat's conditional and limited warranty, must be returned freight prepaid. It is Scat's sole discretion to determine whether to repair a part, replace a part, or deny a customer's claim. Any claims are limited to Scat products and no other component parts. This warranty is expressly in lieu of all other warranties, express or implied.
Quantity: Sold in Sets of 8
|
