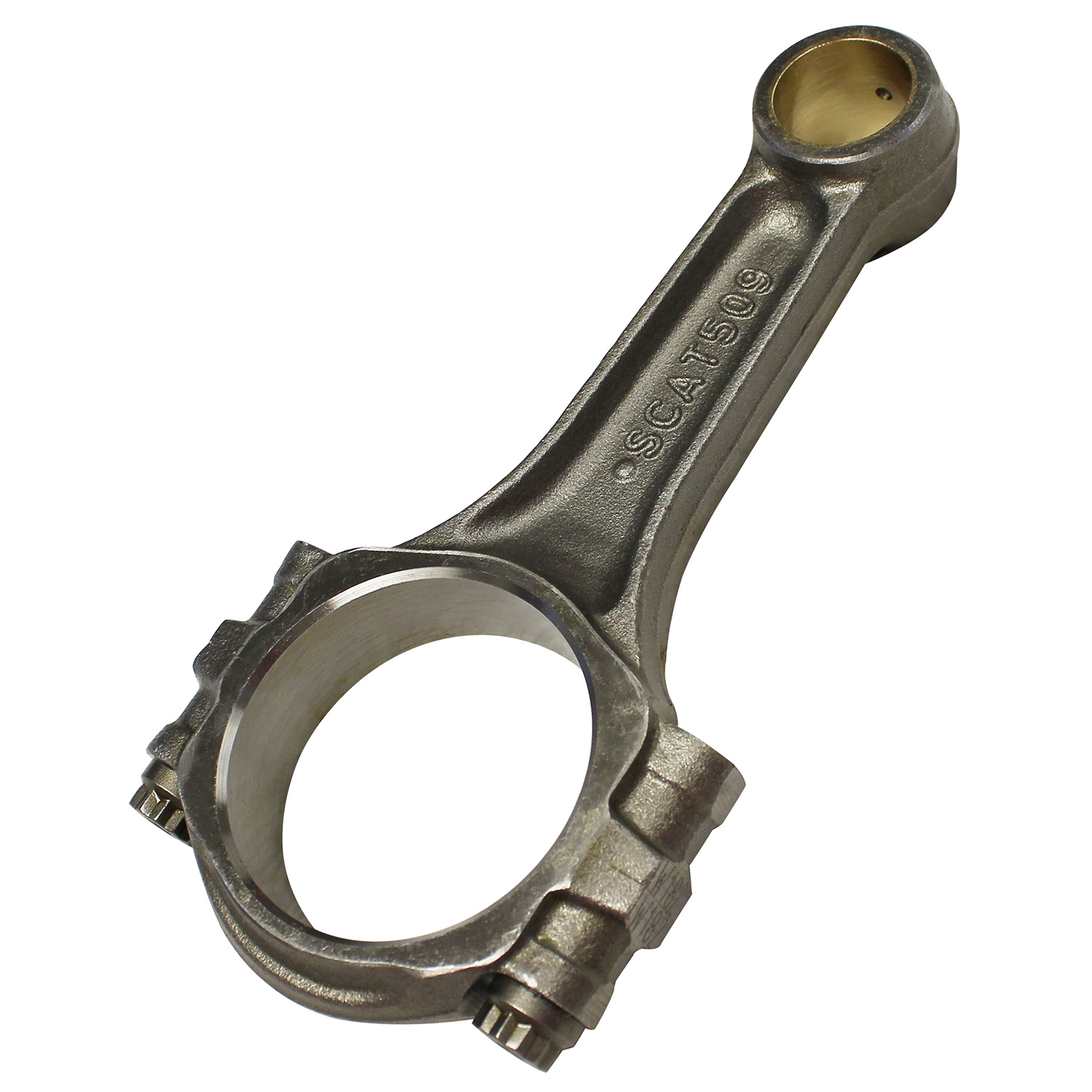

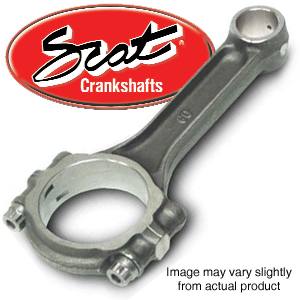

Scat 4340 Forged I-Beam Rods
Lightweight I-beam design for increased power and quicker RPMs. 12-point ARP 8740 cap screw bolts (3/8" SB, 7/16" BB). Special doweled cap for perfect cap-to-rod alignment. Extra clearance for stroker applications. Sized and balanced to +/- 1 gram. Sets of 8.
- SCA 4340 steel forgings
- Lightweight I-Beam Design
- Single Rib Cap Design for Added Strength & Bearing Support
- Apr 8740 cap screws (3/8" Small Block, 7/16" Big Block)
- IMCA, Wissota Sanctioned
Part Type: Connecting Rods
Application: Ford 302
Connecting Rod Beam Style: I-Beam
Material: 4340 Forged Steel
Connecting Rod Finish: Shot-Peened
Magnafluxed: Yes
Connecting Rod Length Center to Center: 5.090”
Connecting Rod Journal: 2.123”
Housing Bore: 2.250”
Pin Bore Diameter: .912”
Big End Width: .830”
Pin End Width: 1.060”
Remanufactured: No
Pin Fit: Bushed
Typical Rod Weight: 785g
Weight Matched Set: Yes
Cap Alignment: Alignment Sleeve
Stroker Clearanced: No
Fastener Type: Cap Screw
Fasteners: 3/8” ARP 8740
Fastener Head Style: 12 Point
Fastener Yield Strength: 200,000 psi
Fastener Torque: 45 ft/lbs. with ARP moly lube on threads
Recommended Bearings: Clevite CB634P, King KEBCR804Si, EngineTech ENGBB214J
Manufacturer: Scat
Manufacturer's Part Number: 2-ICR5090
UPC: 846091046141
Connecting Rod Set Weight: 12.0 lbs.
Warranty: Scat's conditional and limited warranty covers manufacturing defects only, for a period of one year from date of purchase. Any parts returned for Scat inspection, under Scat's conditional and limited warranty, must be returned freight prepaid. It is Scat's sole discretion to determine whether to repair a part, replace a part, or deny a customer's claim. Any claims are limited to Scat products and no other component parts. This warranty is expressly in lieu of all other warranties, express or implied.
Quantity: Sold in Sets of 8
|
