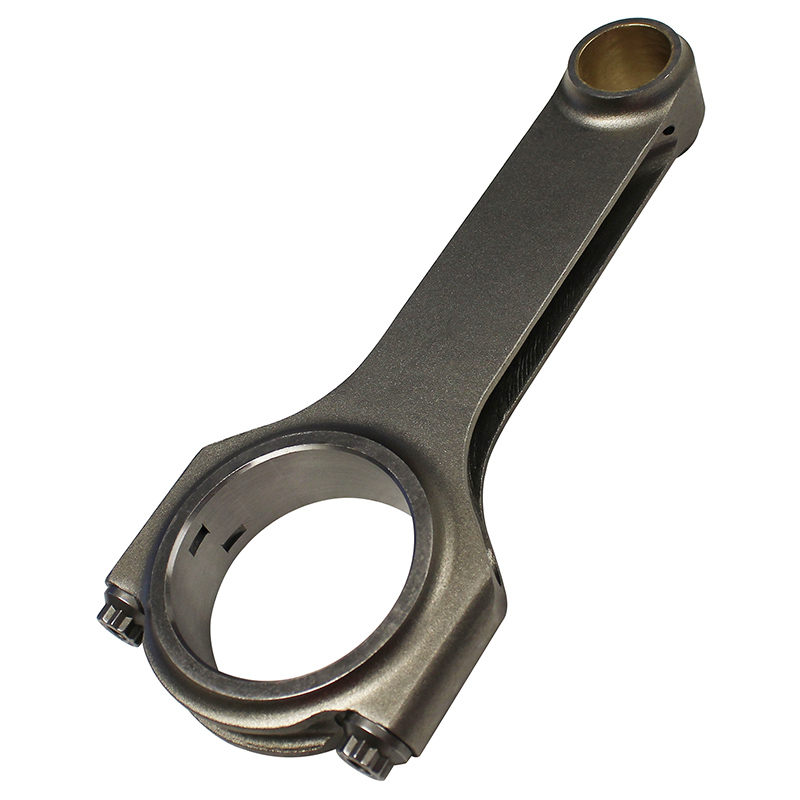

Scat 4340 Forged H-Beam Rods with 7/16" Capscrews
Scat connecting rods feature the same high-quality craftsmanship that has led them to the forefront of the performance industry. Made from a 2-piece chrome moly steel forging to ensure maximum strength and durability. Precision finished at Scat on the newest and most modern machinery available by Scat's master machinists. Sets of 8
Part Type: Connecting Rods
Application: Chevrolet Big Block
Connecting Rod Beam Style: Scat Pro Sport H-Beam Connecting Rods
Material: 4340 Forged Steel
Connecting Rod Finish: Shot-Peened and tumbled
Magnafluxed: No
Connecting Rod Length Center to Center: 6.135”
Connecting Rod Journal: 2.200”
Housing Bore: 2.325”
Pin Bore Diameter: .990”
Big End Width: .992”
Pin End Width: 1.125”
Remanufactured: No
Pin Fit: Bushed
Typical Rod Weight:
Weight Matched Set: Yes
Cap Alignment: Alignment Sleeve
Stroker Clearanced: No
Fastener Type: Cap Screw
Fasteners: 7/16” ARP 8740
Fastener Head Style: 12 Point
Fastener Yield Strength: 180,000 psi
Fastener Torque: 68 ft/lbs. with ARP moly lube on threads
Recommended Bearings: Clevite CEPCB743, King KEBCR808, ACL8B743, EngineTech ENGBB619
Manufacturer: Scat
Manufacturer's Part Number: 2-454-6135-2200
UPC: 846091010562
Connecting Rod Set Weight: 15.25 lbs.
Warranty: Scat's conditional and limited warranty covers manufacturing defects only, for a period of one year from date of purchase. Any parts returned for Scat inspection, under Scat's conditional and limited warranty, must be returned freight prepaid. It is Scat's sole discretion to determine whether to repair a part, replace a part, or deny a customer's claim. Any claims are limited to Scat products and no other component parts. This warranty is expressly in lieu of all other warranties, express or implied.
Quantity: Sold in Sets of 8
|
