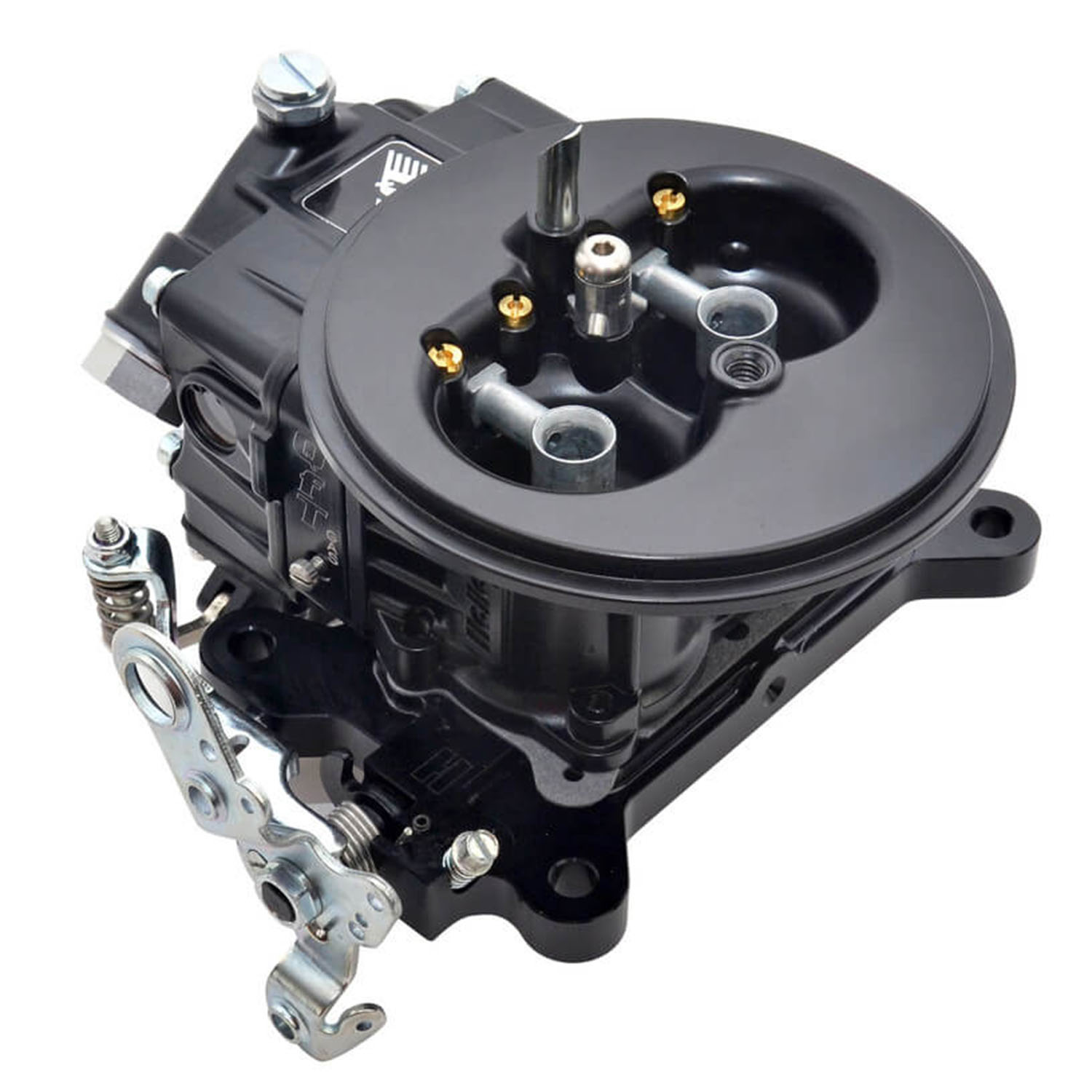

Quick Fuel XP Series Circle Track Carburetor
Quick Fuel's new 2-BBL high performance carburetors for circle track applications are designed with all the features and tuneability you expect from QFT.
Black anodized billet metering block and throttle body
High flow aluminum main body with centered venturi for improved performance and better distribution
Throttle body incorporates roller bearing seals which provide smoother operation and less wear on shaft
Anti-siphon check valve in main body to reduce pump pull over
No choke tower for improved airflow
Changeable emulsion bleeds and power valve channel restrictions for better tuning capabilites
Adjustable idle mixture screws
Changeable air bleeds
Power valve blow-out protection
Dual inlet fuel bowl with -8AN fitting
Built-in dual sight glass windows for easy float adjustment
Single wedge circle track float
Exclusive Black Diamondฎ coating for enhanced corrosion protection and appearance, provides a 6% reduction in fuel temperature
Part Type: Carburetor
Model: 2300
Fuel Type: Methanol
Application: Circle Track
Number of Barrels: 2
CFM: 500
Choke Type: None
Fuel Inlet: Dual
Fuel Inlet Fitting Size: -8 AN
Secondary Type: NA
Throttle Linkage Type: Universal
Ford Auto Trans Kickdown: No
Main Body: Aluminum
Booster Type: Down Leg
Screw-In Air Bleeds: Yes
Primary Venturi Diameter: 1.375"
Base Plate: Billet Aluminum
Base Plate Pattern: 5.16" x 3.46"
Primary Throttle Bore Diameter: 1-11/16"
Secondary Throttle Bore Diameter: NA
Primary Metering Block: Billet Aluminum
Secondary Metering Block: NA
Primary Fuel Bowl: Center Hung Float, Billet Aluminum
Secondary Fuel Bowl: NA
Externally Adjustable Floats: Yes
Fuel Bowl Sight Windows: Yes
Primary Accelerator Pump: 50cc
Secondary Accelerator Pump: NA
Primary Main Jets: 128
Secondary Main Jets: NA
Jet Extensions: No
Quick Change Jet Ports: No
Needle & Seat: .130" Stainless Steel
Idle Bleed: .055"
Intermediate Bleed: NA
Hi-Speed Bleed: .031"
Primary Power Valve: 4.5" Hg
Secondary Power Valve: NA
Primary Pump Nozzle Size: .055"
Secondary Pump Nozzle Size: NA
Secondary Spring Color: NA
Finish: Black Diamond Satin Black
Vacuum Port - Timed (Spark):
Vacuum Port - Full Vacuum:
Manufacturer: Quick Fuel Technologies
Manufacturer's Part Number: XP-4412-A
Weight: 9.0 lbs.
Warranty: Quick Fuel Technology warrants to the original purchaser only that its new and remanufactured products shall be free from defects in material and workmanship for a period of 90 days from date of purchase. In the event of a defect in material or workmanship, QFT will, at its option, repair or replace the product, or any defective part or parts thereof, without charge to the original purchaser. This warranty does not apply to products that have been modified or altered, subjected to misuse, neglect, accident, improper installation or adjustment, dirt or other contaminants, water, corrosion, faulty repair or used in other than those applications recommended by QFT.
Quantity: Sold as Each
|
