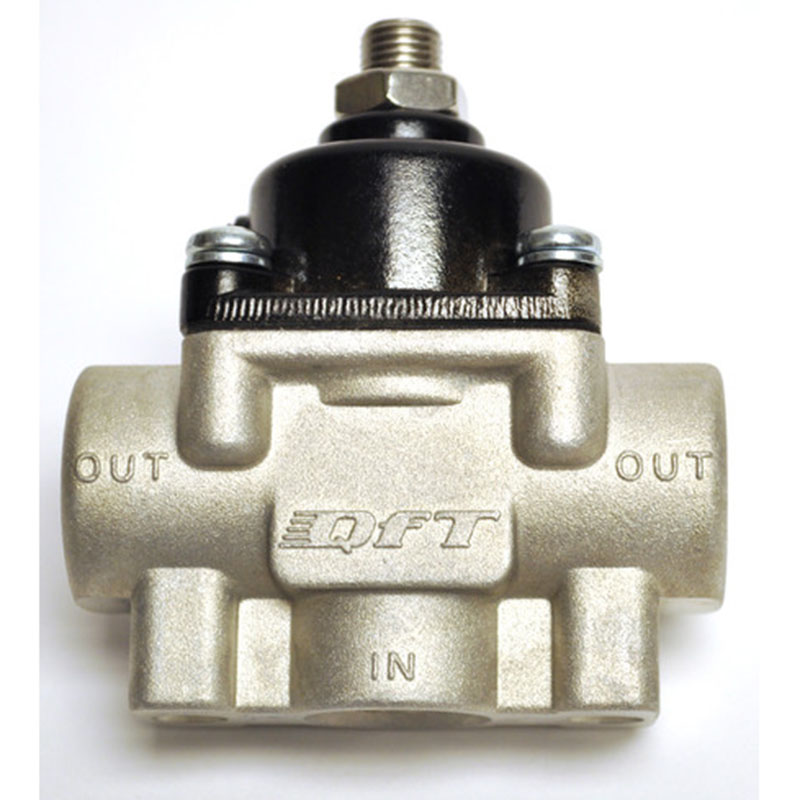

Quick Fuel | 2-Port Regulator
Used to adjust for fuel pressure requirements of various carburetors. Too much fuel pressure may cause flooding or drivability problems. Features ball and stem activation. High flow capacity that can satisfy single four barrel gasoline engines. 4.5-9.0 psi.
Part Type: Fuel Pressure Regulator
Regulator Style: Non-return
Regulator Location: In-Line
Alcohol Compatible: No
Diesel Compatible: No
Operating Pressure: 4.5-9.0 psi (preset at 7psi)
Boost/Vacuum Reference Port: No
Boost/Vacuum Rise Ratio: NA
Gauge Port: No
Mounting Bracket Included: Yes
Fittings Included: No
Rebuildable: No
Rebuild Kit Part Number: QFT35-100
Inlet Quantity: 1
Inlet Attachment: Female Threads
Inlet Size: 3/8" NPT
Outlet Quantity: Two
Outlet Attachment: Female Threads
Outlet Size: 3/8" NPT
Return Attachment: NA
Return Fitting Size: NA
Regulator Material: Aluminum
Regulator Finish: Zinc Plated
Manufacturer: Quick Fuel Technology
Manufacturer's Part Number: 30-803QFT
UPC: 849804006968
Weight: 1.0 lbs.
Warranty: Sold with or without warranty, Limited 90 Day
Quantity: Sold as Each
|
