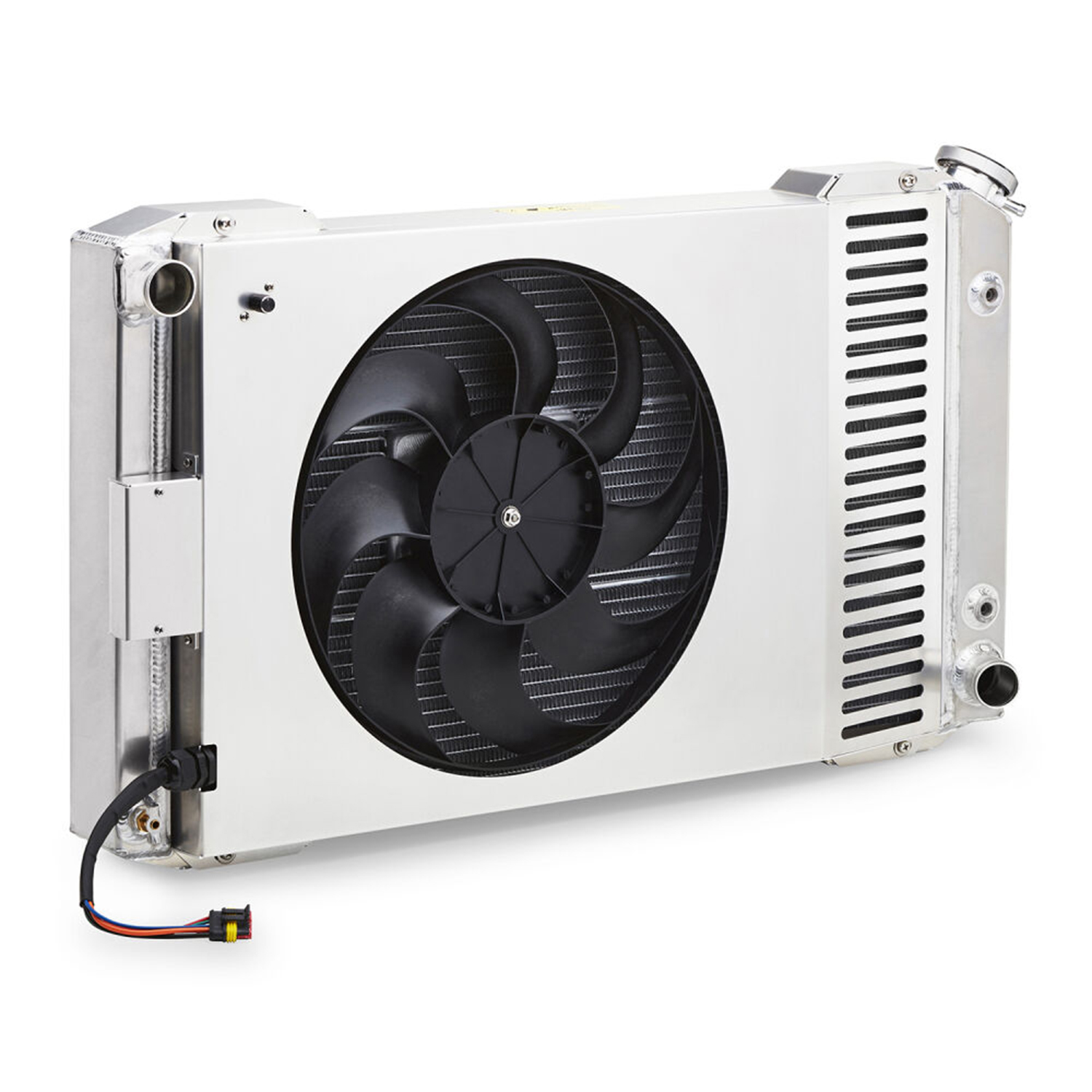

Proform Parts | Slim-Fit Radiator System
Only four inches thick, and is pre-assembled right out of the box! That includes the radiator, shroud and electric fan combined! This amazing engineering feat was accomplished by inventing and integrating a patented 3rd tank directly into the radiator core. The fan motor is then mounted into the special 3rd tank to eliminate all the extra hang-off from traditionally mounted fan. An adjustable thermostat is included.
Part Type: Slim-Fit Radiator System
Application: Chev ’70-’81 Camaro, w/Auto, Most
Pontiac ’70-‘81 Firebird, w/Auto
Overall Width: 31.8"
Overall Height: 18.5"
Core Width: 27.0"
Core Height: 17"
Core Thickness: 2.40"
Inlet Location: Upper Driver Side
Inlet Size: 1.50"
Outlet Location: Lower Passenger Side
Outlet Size: 1.50"
Blade Material: Plastic | Black
Transmission Type: Automatic
Adjustable Thermostat Included: Yes
Mounting Type: Chassis | Direct Fit
Electric Fan Included: Yes | 12 Volts
Fan CFM: 2100
Shroud Included: Yes
Trans Cooler Thread: 1/2”-20
Radiator Cap Included: Yes | Silver
Radiator Material: Aluminum
Radiator Finish: Natural
Manufacturer: Proform Parts
Manufacturer's Part Number: 69605-2
Warranty: Sold without warranty, expressed or implied
Quantity: Sold as Kit
|
