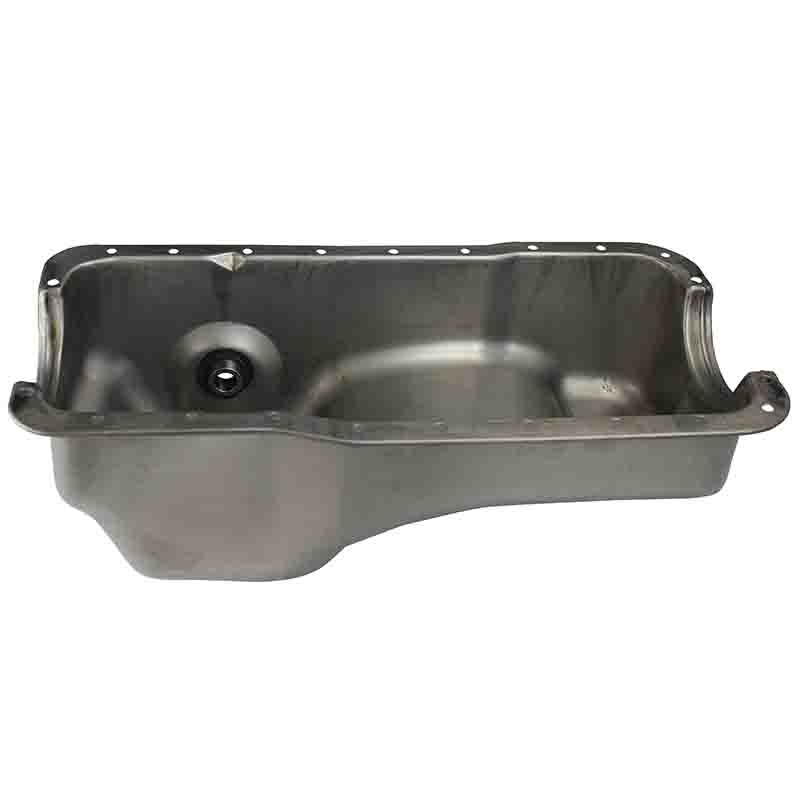

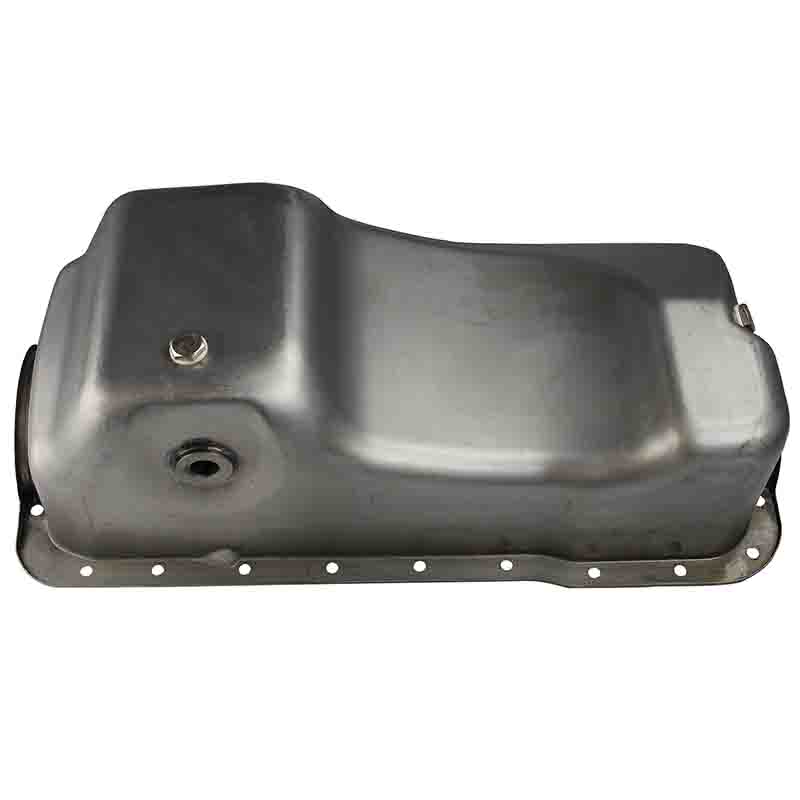

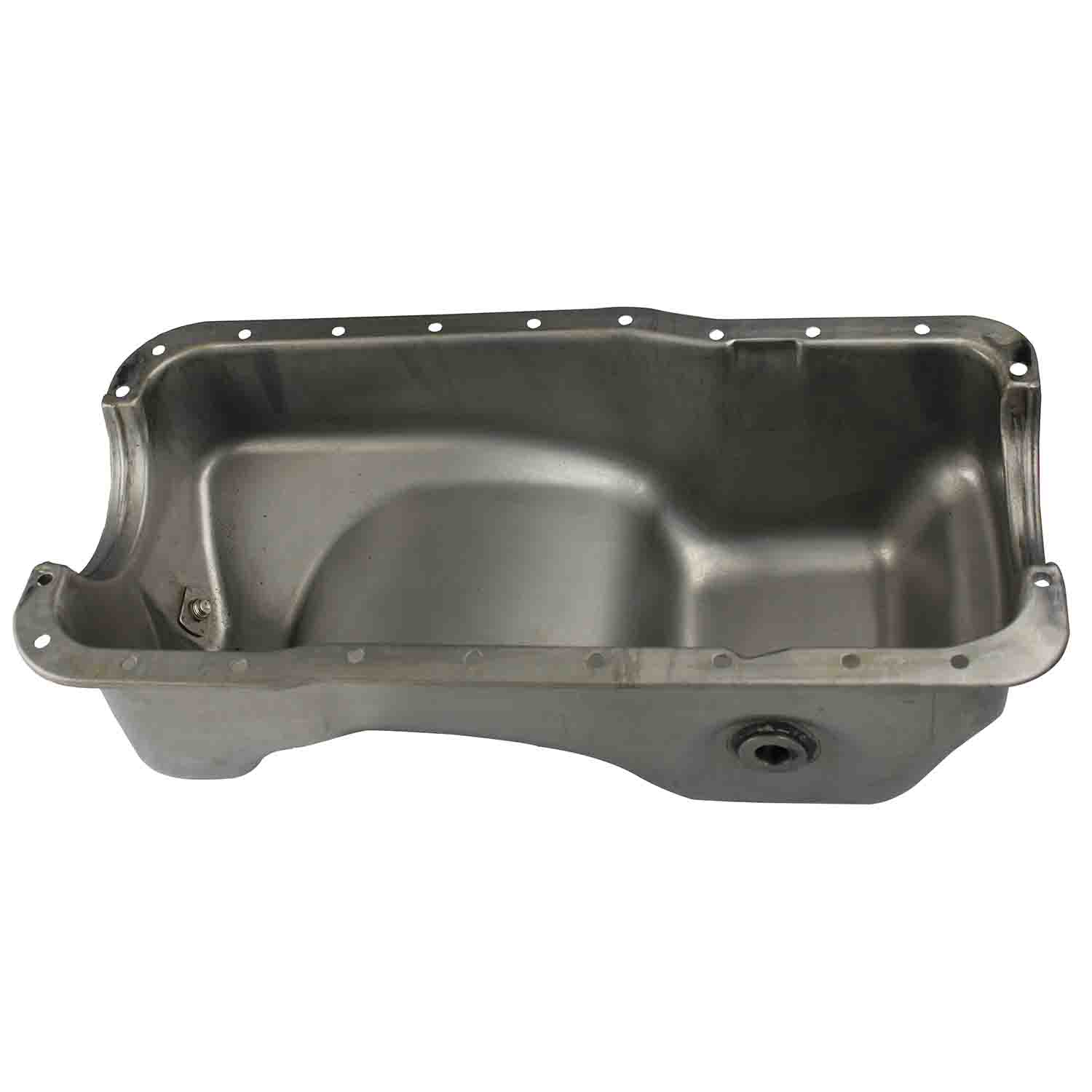

Power Products Stock Replacement Oil Pan
These stamped steel pans are ideal for stock rebuilds. Each pan includes a stock style baffle, drain plug, and corner bolt hole reinforcements.
Part Type: Oil Pan
Application: Ford 302/5.0L 1983-1993
Oil Pan Style: Stock Replacement
Oil Pan Capacity: 5 Quarts Plus Filter
Oil Pan Depth: 8.250"
Oil Pan Sump Depth: 7.750"
Sump Location: Front & Rear
Sump Style: Wet
Kicked Out Sump: No
Stroker Clearanced: Yes
Maximum Stroke with Steel Rod: 3.470"
Dipstick Provision: No
Dipstick Location: NA
Dipstick Included: No
Baffled: Yes
Trap Door Baffle: No
Crank Scraper Included: No
Windage Tray Included: No
Sump Tray Included: No
Oil Level Sight Plug: No
Oil Temp Fitting: No
Pickup Included: No
Recommended Pickup for M68 or M68HV Style Pump: MEL68-S4
Oil Pump Included: No
Oil Pump Driveshaft Included: No
Drain Plug Included: Yes
Gaskets Included: No
Hardware Included: No
Oil Pan Material: Steel
Oil Pan Finish: Natural
Manufacturer: Power Products
Manufacturer's Part Number: 21-8754
Weight: 6.50 lbs.
Warranty: Race Application, No Warranty express or implied
Quantity: Sold as Each
|
