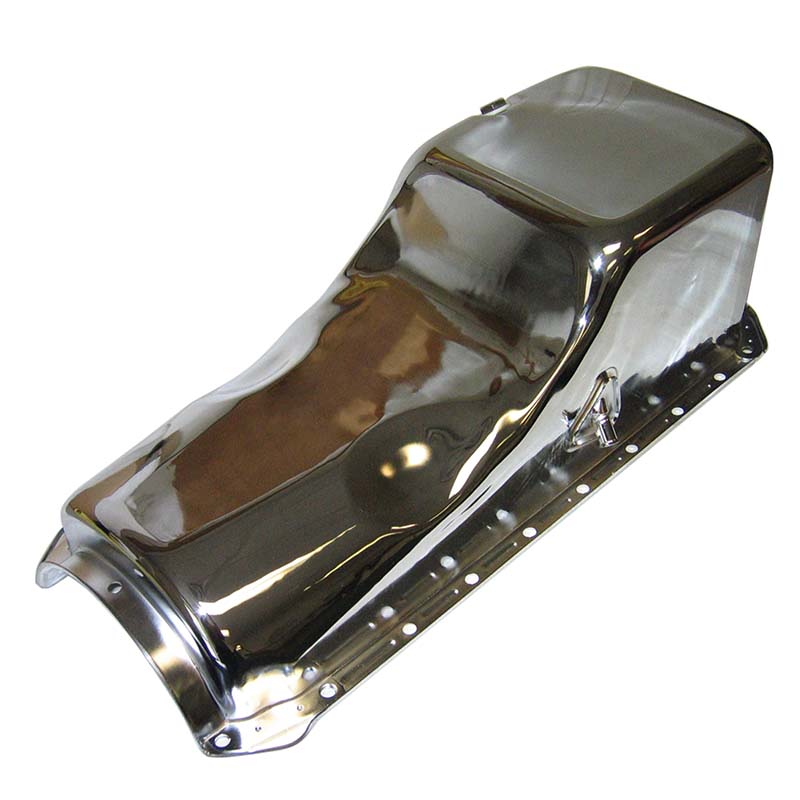

Power Products Stock Replacement Oil Pan
These stock stamped steel pans are ideal for stock rebuilds. Each pan includes a stock style baffle, drain plug, and corner bolt hole reinforcements.
Part Type: Oil Pan
Application: Chevrolet Big Block Mark IV, Mid-Size & Corvette
Oil Pan Style: Stock Replacement
Oil Pan Capacity: 5 Quarts
Oil Pan Depth: 8.125"
Oil Pan Sump Depth: 8.000"
Sump Location: Rear
Sump Style: Wet
Kicked Out Sump: No
Rear Main Seal Style: 2-Piece
Stroker Clearanced: No
Maximum Stroke with Steel Rod: 4.500"
Dipstick Provision: Yes
Dipstick Location: Passenger Side
Dipstick Included: No
Baffled: Yes
Trap Door Baffle: No
Crank Scraper Included: No
Windage Tray Included: No
Sump Tray Included: No
Oil Level Sight Plug: No
Oil Temp Fitting: No
Pickup Included: No
Recommended Pickup for M77 Style Pump: MEL305S
Oil Pump Included: No
Oil Pump Driveshaft Included: No
Drain Plug Included: Yes
Inspection Fitting: No
Gaskets Included: No
Hardware Included: No
Oil Pan Material: Stamped Steel
Oil Pan Finish: Chrome
Manufacturer: Power Products
Manufacturer's Part Number: 21-8253C
Weight: 10.0 lbs.
Warranty: No Warranty express or implied
Quantity: Sold as Each
|
