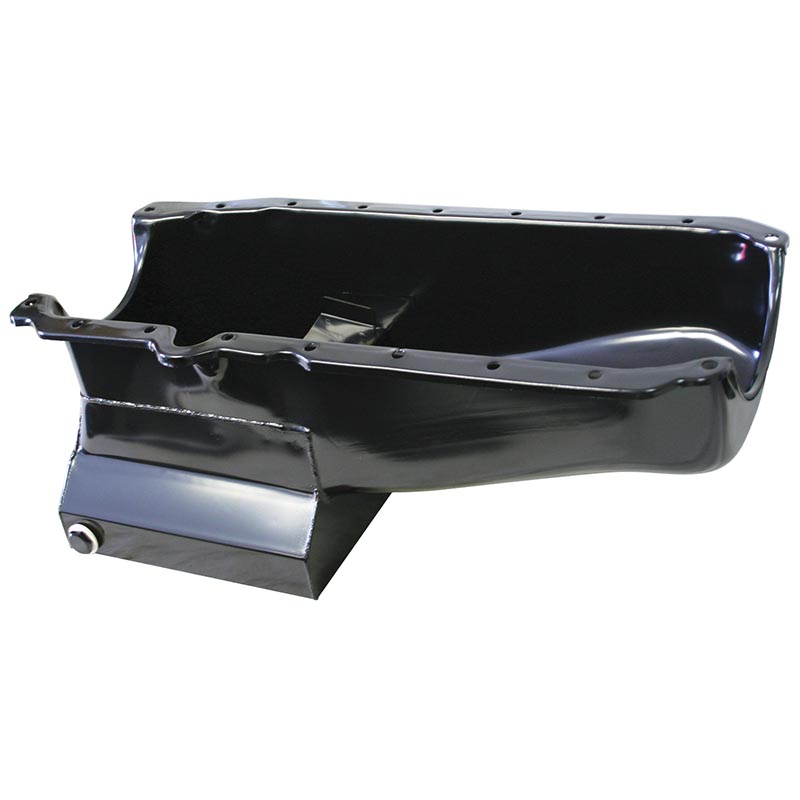

Power Products Low Profile Kicked-Out Sump Pan
More oil capacity and improved oil control without restricting ground clearance. The one-way trap door baffle keeps the oil contained in the pickup area to provide constant supply of oil under street performance or race conditions. A special electro deposit black coating helps prevent corrosion inside and out. This smoother finish also helps the flow of oil back into the sump area.
Part Type: Oil Pan
Application: Chevrolet Small Block 1980-1985 & Dart SHP
Oil Pan Style: Street/Strip Low Profile
Oil Pan Capacity: 7 Quarts
Oil Pan Depth: 8.250"
Oil Pan Sump Depth: 8.250"
Oil Pan Sump Length: 9.250"
Oil Pan Sump Width: 10.500"
Sump Location: Rear
Sump Style: Wet
Kicked Out Sump: Yes
Rear Main Seal Style: 2-Piece
Stroker Clearanced: No
Maximum Stroke with OE Rod: 3.800"
Dipstick Provision: Yes
Dipstick Location: Passenger Side
Dipstick Included: No
Baffled: Yes
Trap Door Baffle: Yes
Crank Scraper Included: No
Windage Tray Included: No
Sump Tray Included: No
Oil Level Sight Plug: No
Oil Temp Fitting: No
Pickup Included: No
Recommended Pickup for M55 (Standard Volume) Style Pump: PVT21-9726
Recommended Pickup for M55HV (High Volume) Style Pump: PVT21-9727
Oil Pump Included: No
Oil Pump Driveshaft Included: No
Drain Plug Included: Yes
Gaskets Included: No
Hardware Included: No
Oil Pan Material: Steel
Oil Pan Finish: Electro Deposit Black
Manufacturer: Power Products
Manufacturer's Part Number: 21-9731-PBK
Weight: 12.00 lbs.
Warranty: Race Application, No Warranty express or implied
Quantity: Sold as Each
Note: Requires Thick Front Seal.
Note: Fits all Chevy Chassis except 62-67 Nova/Chevy II.
