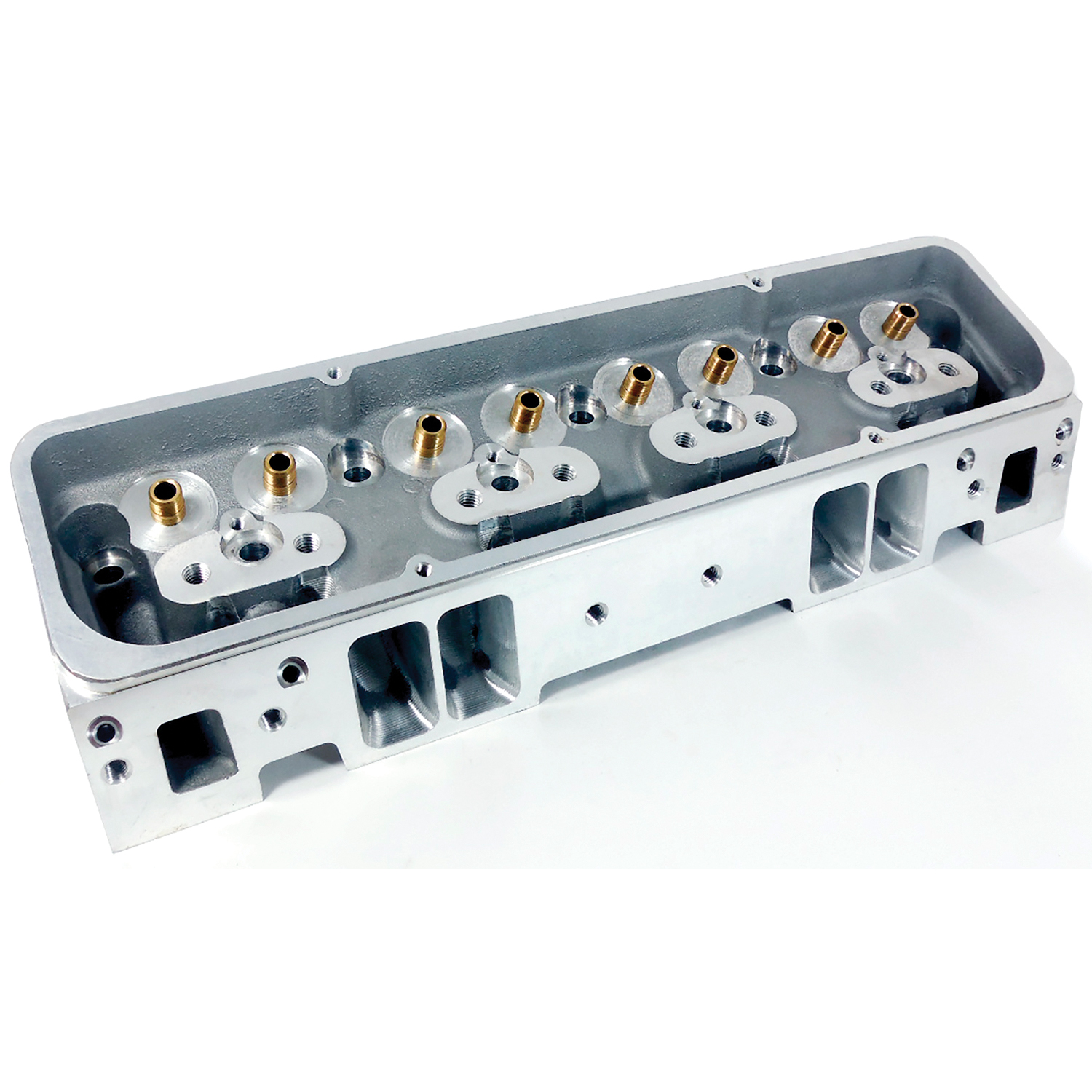

Power Products Power Plus 210 Full CNC Ported Aluminum Chev SB Heads
The perfect head for Pro Street, Street/Strip, or Competition. The fully CNC’d 210cc intake runners are capable of flowing over 300cfm and the exhaust up to 239cfm. Other features include bronze guides, hardened valve seats, large spring seats, and multi-angle valve job.
Part Type: Cylinder Head
Application: Chevrolet Small Block
Cylinder Head Material: Aluminum
Bare or Assembled: Bare
Combustion Chamber Size: 68cc
CNC Machined Combustion Chambers: Yes
Intake Valve Angle: 23
Exhaust Valve Angle: 23
Intake Port Volume: 210cc
CNC Machined Intake Port: Yes
Intake Port Flow: 301cfm
Intake Port Location: Standard
Intake Port Shape: Rectangular
Intake Port Dimensions:
Suggested Intake Gaskets:
Exhaust Port Volume:
CNC Machined Exhaust Port: Yes
Exhaust Port Flow: 239cfm
Exhaust Port Location: Standard
Exhaust Port Shape: Square
Exhaust Port Dimensions:
Suggested Exhaust Gaskets:
Spark Plug Style: Angle
Suggested Spark Plug:
Valve Guides: Yes (Bronze)
Valve Guide Spacing:
Valve Stem Diameter:
Valve Seats: Yes (Ductile Iron)
Valve Job: Multi-Angle
Intake Valve Diameter: 2.020"
Intake Valve Included: No
Exhaust Valve Diameter: 1.600"
Exhaust Valve Included: No
Suggested Valve Length:
Valve Spring Pockets:
Valve Springs Included: No
Valve Spring Application: NA
Valve Springs Retainers Included: No
Valve Locks Included: No
Valve Seals Included: No
Rocker Studs Included: No
Suggested Rockers: TND10001
Guide Plates Included: No
Valve Cover Mounting Style: Center Bolt and Perimeter
Steam Holes Drilled: No
Heat Crossover: No
Suggested Head Bolts:
Suggested Head Studs:
Suggested Stud Girdle:
Head Bolt Torque with Oil:
Rocker Stud Torque with Oil:
Intake Bolt Torque with Oil:
Manufacturer: Power Products
Manufacturer's Part Number: 54452
Weight:
Warranty: Race Application, No warranty expressed or implied
Quantity: Sold as Each
Note: 60/40 valve spacing (requires shaft rockers)
|
