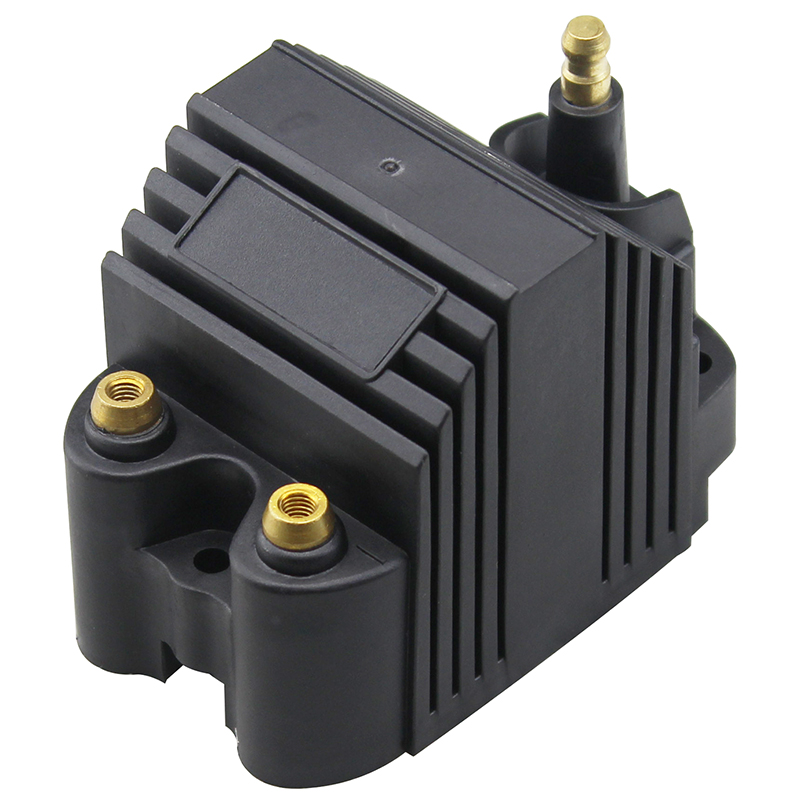

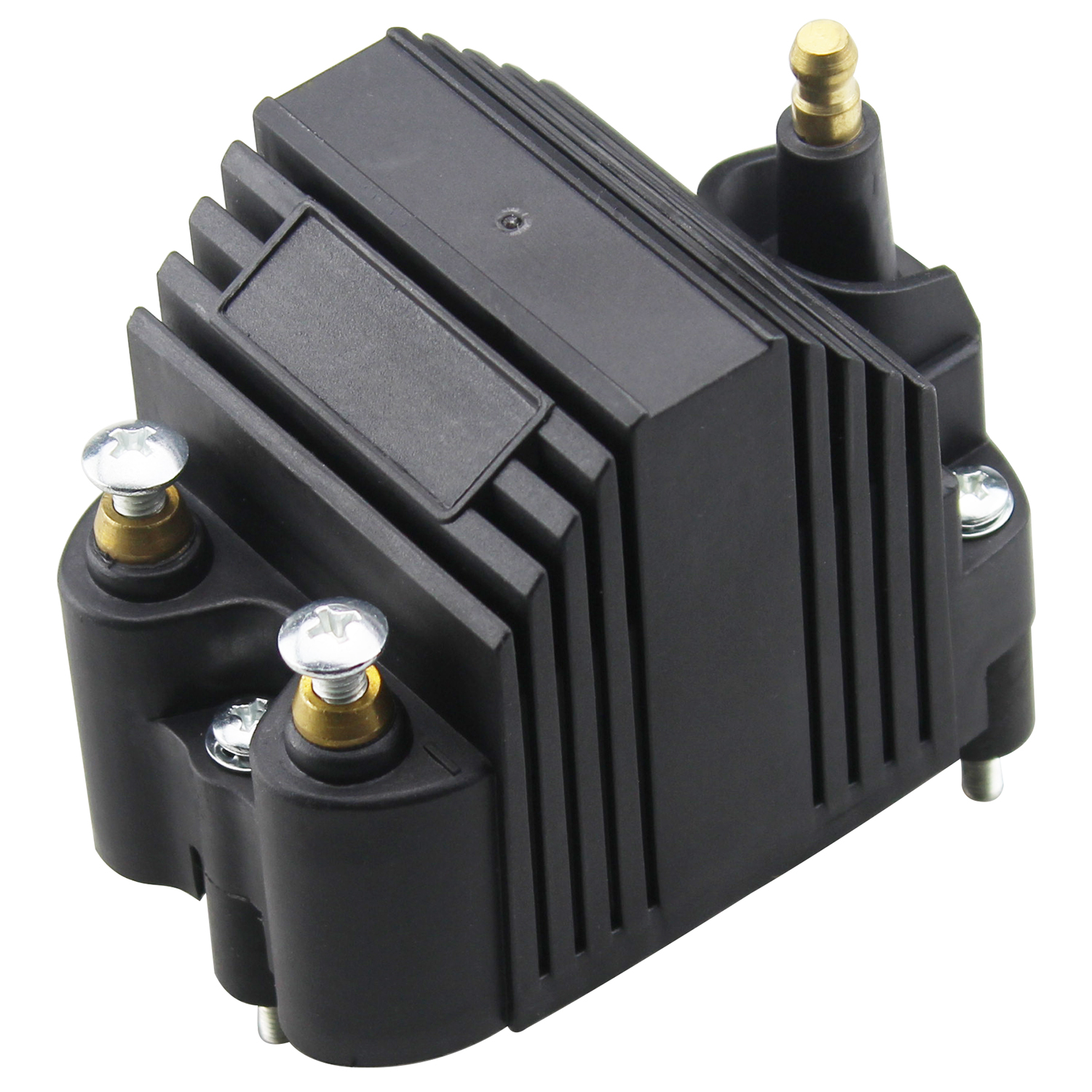

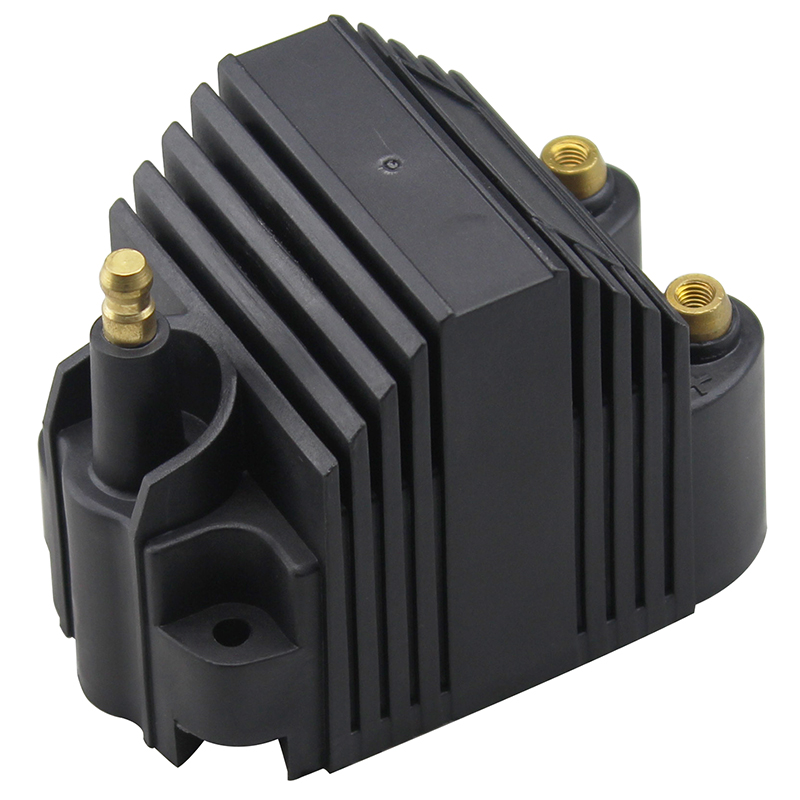

Power Products E-Power Ignition Coil
The high voltage epoxy E-core design is very efficient. This design allows for a compact coil to put out 40K volts. The E-core windings produce high amounts of current. Includes a 90 degree boot, terminal, and vibration mounts.
- Produces 300 Milliamps, 40,000 Volts
- 70:1 Turns Ratio
- Primary Resistance .35 ohms
Part Type: Ignition Coil
Application: Universal
Coil Style: E-Core
Maximum Voltage: 40,000V
Primary Resistance: .350 ohms
Secondary Resistance:
Coil Internal Construction: Epoxy-filled
Coil Shape: Square
Turns Ratio: 70:1
Inductance:
Peak Current: 300 mA
Spark Duration:
Coil Wire Attachment: Male/HEI
Mounting Bracket Included: Yes, Vibration Mounts
Coil Wire Included: No
Ballast Resistor Included: No
Coil Color: Black
Coil Length:
Coil Width:
Coil Height:
Manufacturer: Power Products
Manufacturer's Part Number: 25-1072
Weight: 1.350 lbs.
Warranty: Race Application, No Warranty expressed or implied
Quantity: Sold as Each
|
