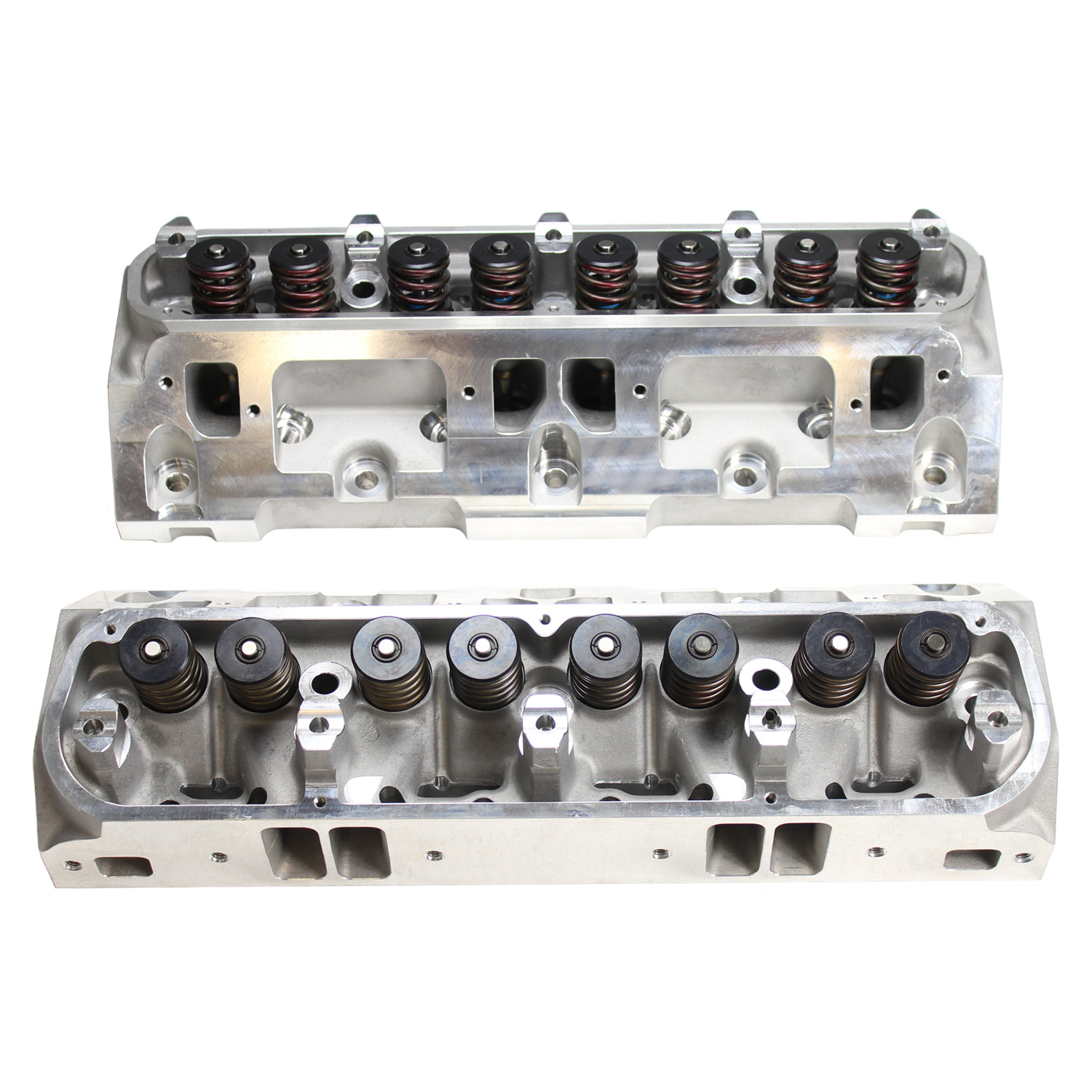

Power Products Power Plus Chrysler SB Aluminum Heads
Great for street, street/strip or mild competition. Designed to significantly increase horsepower and torque throughout a wide power band. Great throttle response and better top end power. Enhanced precision cast 171cc intake runners for increased flow. Made from 356T-6 aluminum for superior strength, looks, and flow. Other features include bronze guides, hardened valve seats, large spring seats and multi-angle valve job.
Assemblies are professionally assembled with 2.020"/1.600" 1-piece stainless steel severe application valves, high quality valve springs, chrome moly steel retainers and valve locks.
Part Type: Cylinder Head
Application: Chrysler Small Block
Cylinder Head Material: Aluminum
Bare or Assembled: Assembled
Combustion Chamber Size: 65cc
CNC Machined Combustion Chambers: No
Intake Valve Angle: 18
Exhaust Valve Angle: 18
Intake Port Volume: 171cc
CNC Machined Intake Port: No
Intake Port Flow:
Intake Port Location: Standard
Intake Port Shape: Rectangular
Intake Port Dimensions:
Suggested Intake Gaskets:
Exhaust Port Volume:
CNC Machined Exhaust Port: No
Exhaust Port Flow:
Exhaust Port Location:
Exhaust Port Shape: Square
Exhaust Port Dimensions:
Suggested Exhaust Gaskets:
Suggested Spark Plug:
Spark Plug Style:
Valve Guides: Yes
Valve Guide Spacing:
Valve Stem Diameter:
Valve Seats: Yes
Valve Job: 5-Angle
Intake Valve Diameter: 2.020"
Intake Valve Included: Yes
Exhaust Valve Diameter: 1.600"
Exhaust Valve Included: Yes
Suggested Valve Length: 4.910"
Valve Spring Pockets:
Valve Springs Included: Yes
Valve Spring Application: Hydraulic Flat Tappet
Valve Springs Retainers Included: Yes
Valve Locks Included: Yes
Valve Seals Included: Yes
Rocker Studs Included: No
Guide Plates Included: No
Valve Cover Mounting Style: Perimeter bolt
Steam Holes Drilled: No
Heat Crossover: No
Suggested Head Bolts: ARP144-3602
Suggested Head Studs:
Suggested Stud Girdle: NA
Head Bolt Torque with Oil:
Rocker Stud Torque with Oil:
Intake Bolt Torque with Oil:
Manufacturer: Power Products
Manufacturer's Part Number: 54446K2
Weight:
Warranty: Race Application, No warranty expressed or implied
Quantity: Sold as Pair
|
