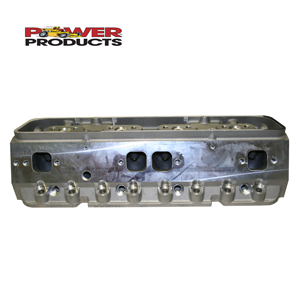

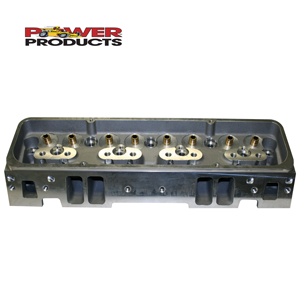

Power Products, Cylinder Head, Chev SB, Aluminum, 205/64cc, Straight Plug, Bare, Each |
|
 |
Power Products Power Plus Aluminum Heads
The Best Flowing Head Per Dollar
Designed to significantly increase horsepower and torque throughout a wide power band. Enhanced precision cast 205cc intake runners for increased flow. Other features include bronze guides, hardened valve seats, large spring seats and multi-angle valve job. Steam holes are drilled for 400ci applications. Great for Pro Street, Street/Strip or Competition.
Part Type: Cylinder Head
Application: Chevrolet Small Block
Cylinder Head Material: Aluminum
Bare or Assembled: Bare
Combustion Chamber Size: 64cc
CNC Machined Combustion Chambers: No
Intake Valve Angle: 23
Exhaust Valve Angle: 23
Intake Port Volume: 205cc
CNC Machined Intake Port: No
Intake Port Flow:
Intake Port Location: Standard
Intake Port Shape: Rectangular
Intake Port Dimensions:
Suggested Intake Gaskets:
Exhaust Port Volume:
CNC Machined Exhaust Port: No
Exhaust Port Flow:
Exhaust Port Location: Standard
Exhaust Port Shape: Square
Exhaust Port Dimensions:
Suggested Exhaust Gaskets:
Spark Plug Style: Straight
Suggested Spark Plug: NGK R5671
Valve Guides: Yes
Valve Guide Spacing:
Valve Stem Diameter: 11/32" (.3415")
Valve Seats: No
Valve Job: Multi-Angle
Intake Valve Diameter: 2.020"
Intake Valve Included: No
Exhaust Valve Diameter: 1.600"
Exhaust Valve Included: No
Suggested Valve Length:
Valve Spring Pockets:
Valve Springs Included: No
Valve Spring Application: NA
Valve Springs Retainers Included: No
Valve Locks Included: No
Valve Seals Included: No
Rocker Studs Included: No
Guide Plates Included: No
Valve Cover Mounting Style: Center Bolt and Perimeter
Steam Holes Drilled: Yes
Heat Crossover: No
Suggested Head Bolts: ARP134-3601 or ARP134-3701
Suggested Head Studs: ARP134-4001 or ARp134-4301
Suggested Stud Girdle: Power Products 43100K, Howards Cams 90100, Jomar 1104
Head Bolt Torque with Oil:
Rocker Stud Torque with Oil:
Intake Bolt Torque with Oil:
Manufacturer: Power Products
Manufacturer's Part Number: 54400
Weight:
Warranty: Race Application, No warranty expressed or implied
|
|
|
|
|
|
|
