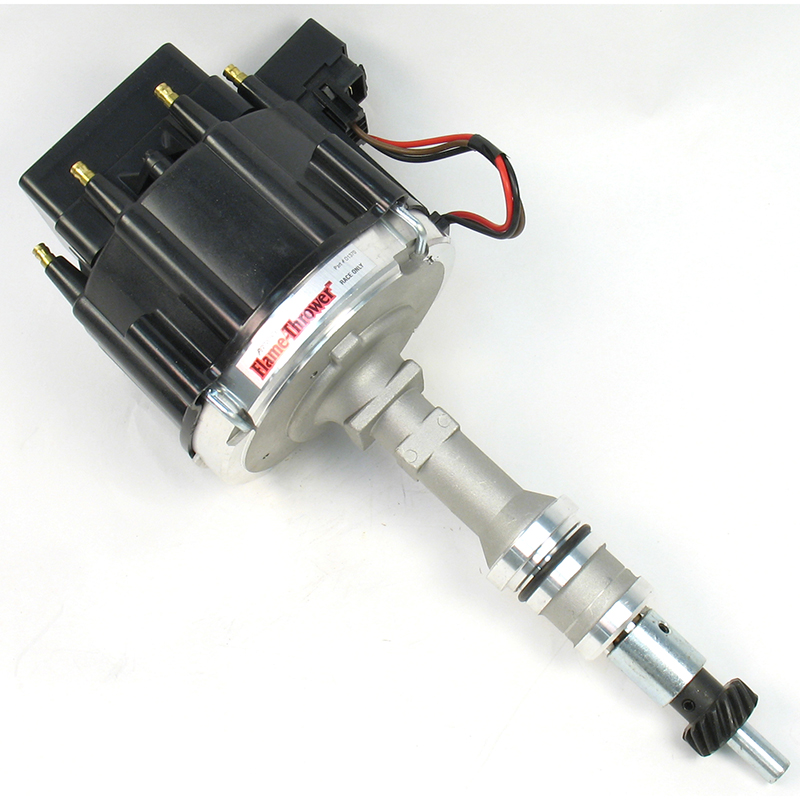

PerTronix Performance Products | Flame-Thrower HEI Race Distributor w/ Mechanical Advance
Race HEI distributors feature an electronic module and 50,000 volt coil combination that optimizes spark energy and peak current to the spark plug in the 6000 to 8500 RPM range. Each unit is TIG welded at critical points for improved reliability and to prevent high RPM distortion. Race HEI distributors are factory equipped with a specially designed vacuum advance lockout to prevent changes to rotor phasing and maximize combustion burn time. These distributors are not to be used on emission controlled vehicles, but are great for circle track or drag race applications where HEI distributors are mandated. Includes 7.2 amp "race only" module.
• New lightweight aluminum alloy housing.
• High dielectric strength cap with brass terminals and low resistance coil brush.
• Balanced rotor with nylon screws prevent arcing and reduce vibration at high RPMs.
• Precision machined chromoly advance weights and center plate eliminate erratic timing.
• Additional advance springs included for fine tuning of the advance curve.
• Bronze sintered bushings for reduced friction and extended life.
• Centerless ground shaft reduces friction and provides concentric operation.
• Distributor gear is grounded to exact tolerances for tighter mesh with camshaft.
• Meets stringent automobile susceptibility, vibration, and shock requirements.
• Limited One Year Warranty.
Part Type: HEI III Module Distributor
Application: Ford 289/302
Integrated Multi-Spark : Yes
Digital Rev Limiter: Yes
Advance Type: Mechanical
Adjustable Vacuum Advance: No
Trigger Style: Magnetic
Requires External Ignition Control: No
Computer Controlled Compatible: No
Cap Style: Male/HEI
Slip Collar: No
Distributor Cap Color: Black
Housing Material: Billet Aluminum
Housing Finish: Natural
Distributor Gear Rotation: Standard
Distributor Gear Material: Iron
Mechanical Tach Drive: No
Marine Use: No
Replacement Cap Part Number: D4050
Replacement Rotor Part Number: D4061
Manufacturer: Pertronix Performance Products
Manufacturer's Part Number: D71370
Weight: 7.30 lbs.
Warranty: Limited One Year Warranty
Quantity: Sold as Each
Note: Not for use with solid core spark plug wires.
Note: For closed course competition use only, not to be used on emission controlled vehicles.
|
