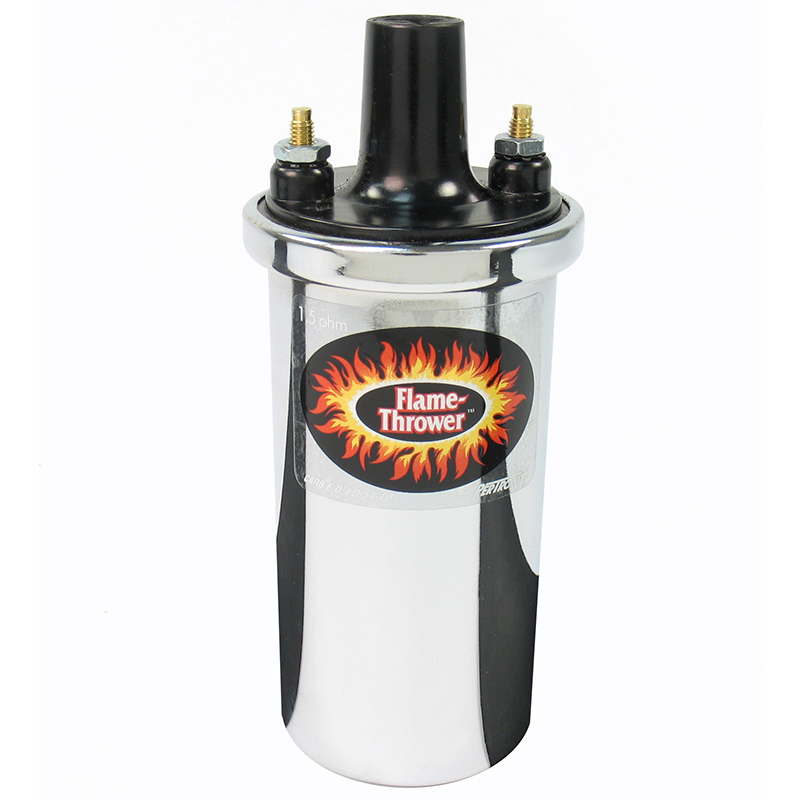

PerTronix Performance Products Flame-Thrower 40,000 Volt Ignition Coil
The 40,000 volt Flame-Thrower canister coil can benefit virtually any distributor type inductive system. Its higher voltage allows larger spark plug gaps for added power, smoother response, and better fuel economy. These coils are internally resisted so installation and wiring is drastically simplified. The oil filled coils offer great heat control for street driven vehicles.
• 40,000 Volts
• Chrome
• For use with inductive ignition systems.
• 1.5 Ohm primary resistance
• Legal in all 50 states and Canada. (C.A.R.B. E.O #D-57-21).
• Limited 90 Day Warranty.
Part Type: Ignition Coil
Application: Universal
Coil Style: Canister
Maximum Voltage: 40,000
Primary Resistance: 1.5 ohms
Secondary Resistance: 9.0K ohms
Coil Internal Construction: Oil-filled
Coil Shape: Round
Turns Ratio: 100:1
Inductance: 6.4 mH
Peak Current: 7.2 Amps
Spark Duration: 1.5 mS
Coil Wire Attachment: Female/Socket
Mounting Bracket Included: No
Coil Wire Included: No
Ballast Resistor Included: No
Coil Color: Chrome
Coil Diameter: 2.150"
Coil Height: 6.000"
Manufacturer: Pertronix Performance Products
Manufacturer's Part Number: 40001
UPC: 694342004859
Weight: 1.50 lbs.
Warranty: 90 Day Warranty
Quantity: Sold as Each
|
