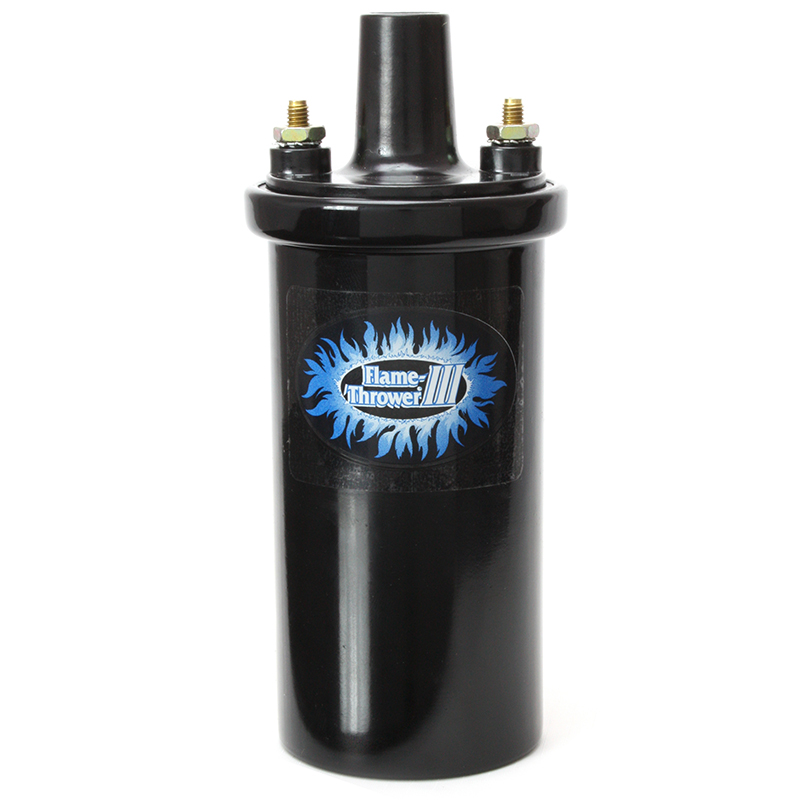

PerTronix Performance Products Flame-Thrower III 45,000 Volt Ignition Coil
Flame Thrower III coils feature an ultra low resistance and are designed specifically for the Ignitor III ignition system. Flame Thrower III coils have a high turns ratio and ultra low primary resistance enabling the ignition system to charge faster at high RPMs.
• 45,000 Volts
• Black "Stock Look"
• Compatible with Ignitor III systems as well as most capacitive discharge systems.
• Ultra Low 0.32 Ohm primary resistance
• Charges to peak current typically 30-70% faster than other coils.
• Rapid charge time means maximum spark energy is sustained to higher engine RPM.
• Legal in all 50 states and Canada. (C.A.R.B. E.O #D-57-21).
• Limited 90 Day Warranty.
Part Type: Ignition Coil
Application: Universal
Coil Style: Canister
Maximum Voltage: 45,000
Primary Resistance: 0.32 ohms
Secondary Resistance: 7.0K ohms
Coil Internal Construction: Oil-filled
Coil Shape: Round
Turns Ratio: 110:1
Inductance: 2.5 mH
Peak Current:
Spark Duration:
Coil Wire Attachment: Female/Socket
Mounting Bracket Included: No
Coil Wire Included: No
Ballast Resistor Included: No
Coil Color: Black
Coil Diameter: 2.150"
Coil Height: 6.000"
Manufacturer: Pertronix Performance Products
Manufacturer's Part Number: 44011
UPC: 694342531843
Weight: 1.50 lbs.
Warranty: 90 Day Warranty
Quantity: Sold as Each
|
