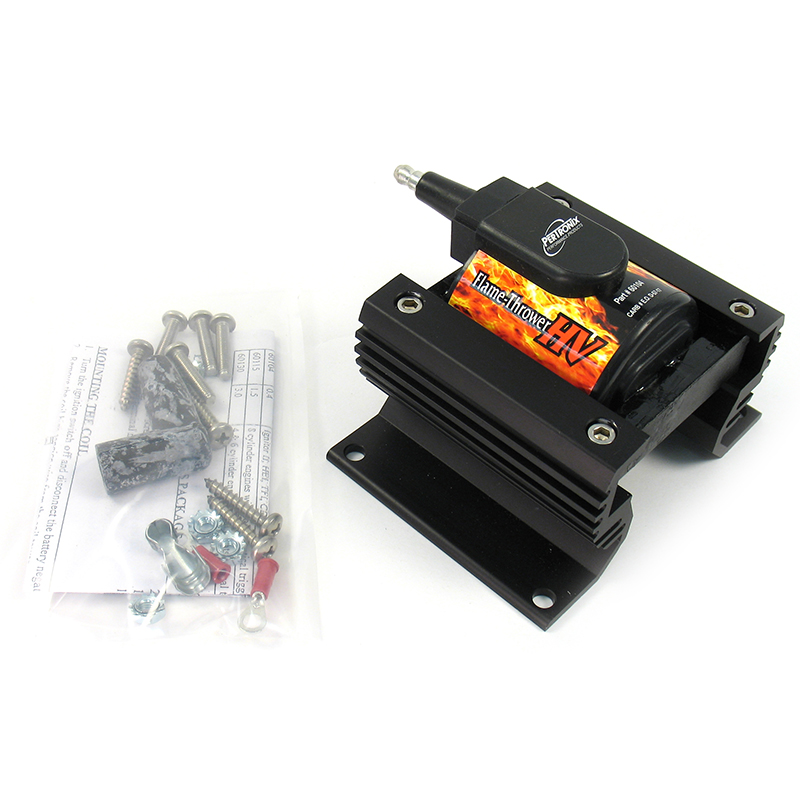

PerTronix Performance Products Flame-Thrower HV E-Core Ignition Coil
The HV (High Voltage) E-core design yields an incredible 60,000 volts and operates with no degradation throughout temperature ranges that surpass military specifications. The special heat sink design made from aircraft 6063 T5 aluminum efficiently transfers heat optimizing energy output for street/strip and off-road applications. Flame-Thrower HV 0.45 ohm coils are also compatible with most capacitive discharge boxes.
• 60,000 Volts
• Vacuum potted body for longer life and increased reliability
• 6063 T5 aluminum heat sink with black anodized corrosion resistant finish.
• Precision machined male high tension terminal and brass primary terminals.
• Legal in all 50 states and Canada. (C.A.R.B E.O. #D-57-21).
• Limited 90 Day Warranty.
Part Type: Ignition Coil
Application: Universal
Coil Style: E-Core
Maximum Voltage: 60,000V
Primary Resistance: .45 ohms
Secondary Resistance: 7.3K ohms
Coil Internal Construction: Epoxy-filled
Coil Shape: Square
Turns Ratio: 90:1
Inductance: 3.8 mH
Peak Current:
Spark Duration:
Coil Wire Attachment: Male/HEI
Mounting Bracket Included: No
Coil Wire Included: No
Ballast Resistor Included: No
Coil Color: Black
Coil Length: 4.600"
Coil Width: 4.650"
Coil Height: 3.150"
Manufacturer: Pertronix Performance Products
Manufacturer's Part Number: 60104
UPC: 694342015527
Weight: 2.70 lbs.
Warranty: 90 Day Warranty
Quantity: Sold as Each
|
