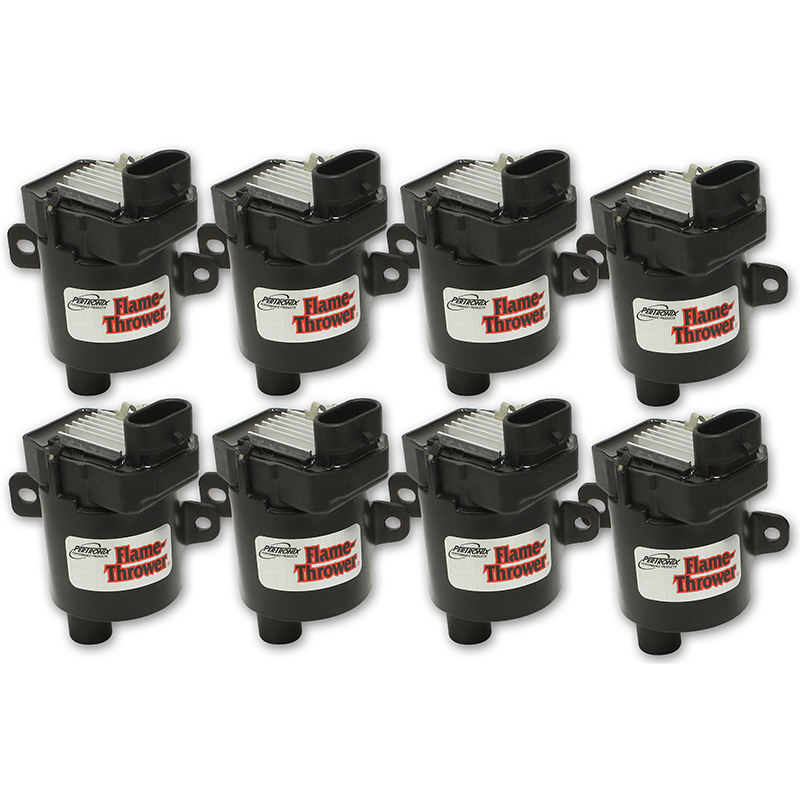

PerTronix Performance Products Flame-Thrower GM LS Coil On Plug Performance Coils
Flame-Thrower Coils GM LS engines feature an optimized coil design for improved spark energy. These coils are epoxy molded to prevent premature failure from moisture or winding fatigue. Direct OEM replacement connections means simple installation. Set of 8
• Optimized coil design for improved spark energy
• Provides consistent spark energy throughout the RPM range and with no energy degradation up to 11,000 engine RPMs.
• Moisture resistant construction ensures long life in harsh environments.
• Plated terminals for added current conduction.
• Epoxy molded for shock and vibration resistance.
• Direct OEM replacement.
• Legal in all 50 states and Canada. (C.A.R.B. E.O. #D-57-21).
• Limited 90 Day Warranty.
Part Type: Ignition Coil
Application: GM LS Truck
Coil Style: Coil-On Plug
Maximum Voltage: 35,000V
Primary Resistance: 1.05 ohms
Secondary Resistance: 11.6K ohms
Coil Internal Construction: Epoxy-filled
Coil Shape: Round
Turns Ratio: 73:1
Inductance: 4.5 mH
Peak Current:
Spark Duration:
Coil Wire Attachment: Female/Socket
Mounting Bracket Included: No
Coil Wire Included: No
Ballast Resistor Included: No
Coil Color: Black
Coil Length:
Coil Width:
Coil Height:
Manufacturer: Pertronix Performance Products
Manufacturer's Part Number: 30848
UPC: 694342546236
Weight: 6.00 lbs.
Warranty: 90 Day Warranty
Quantity: Set of 8
|
