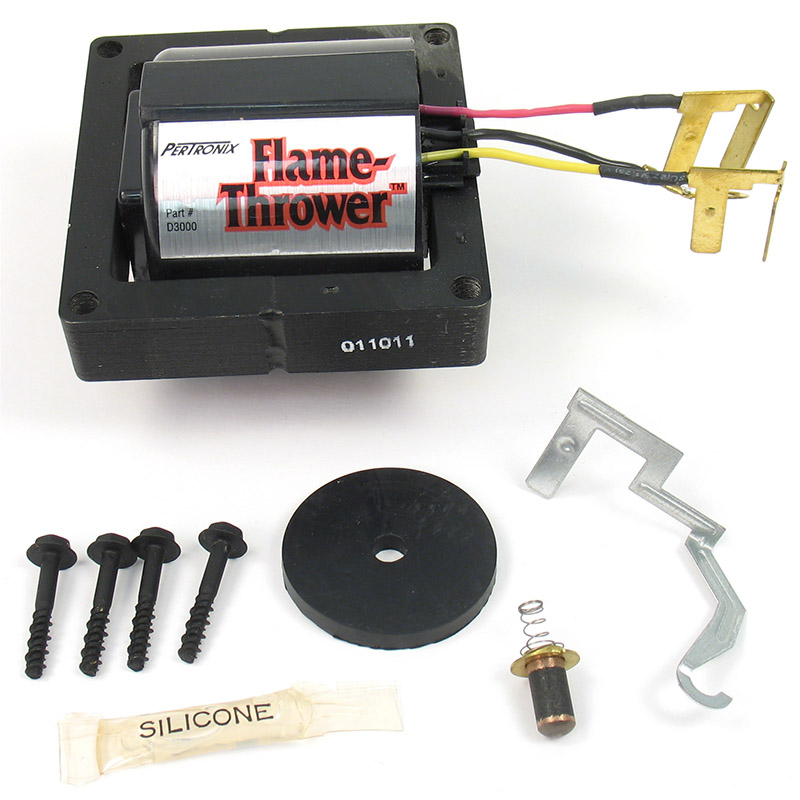

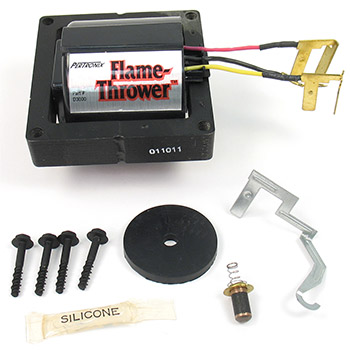

PerTronix Performance Products | Flame-Thrower 50,000 Volt E-Core Coil
Flame-Thrower E-Core coils feature optimized winding design to maximize spark gap current and available voltage. When teamed with Flame-Thrower ignition modules, they produce 100% more energy across the spark plug gap (during a one millisecond burn time) compared to the OEM coil.
• 50,000 Volts
• Ultra low primary resistance values
• Replaces internal GM coils with black, yellow, and red wires.
• Limited 90 Day Warranty
• Legal in all 50 states and Canada (C.A.R.B E.O. #D-57-21)
Part Type: Ignition Coil
Application: GM
Coil Style: E-Core
Maximum Voltage: 50,000
Primary Resistance: .50 ohms
Secondary Resistance: 8.3K ohms
Coil Internal Construction: Epoxy-filled
Coil Shape: Square
Turns Ratio: 80:1
Inductance: 4.4 mH
Peak Current: 7.9 Amps
Spark Duration: 1.5 mS
Coil Wire Attachment: HEI In-Cap
Mounting Bracket Included: No
Coil Wire Included: No
Ballast Resistor Included: No
Coil Color: Black
Coil Length: 3.080"
Coil Width: 3.080"
Coil Height: 2.440"
Manufacturer: Pertronix Performance Products
Manufacturer's Part Number: D3000
UPC: 694342006310
Weight: 1.30 lbs.
Warranty: 90 Day Warranty
Quantity: Sold as Each
|
