Painless Transmission Torque Converter Lock-Up Kit
This TH200-4R Transmission Torque Converter Lock-Up Kit takes all the guesswork out of controlling the lock-up function on your TH200-4R overdrive transmission. This kit will work with both carbureted and fuel injected engines and saves you from having to buy any separate, expensive computer controlled equipment. A provided vacuum controlled switch and 4th gear pressure switch controls the torque converter lock up solenoid. Kit comes with everything needed to complete the installation and fits any GM TH200-4R transmission.

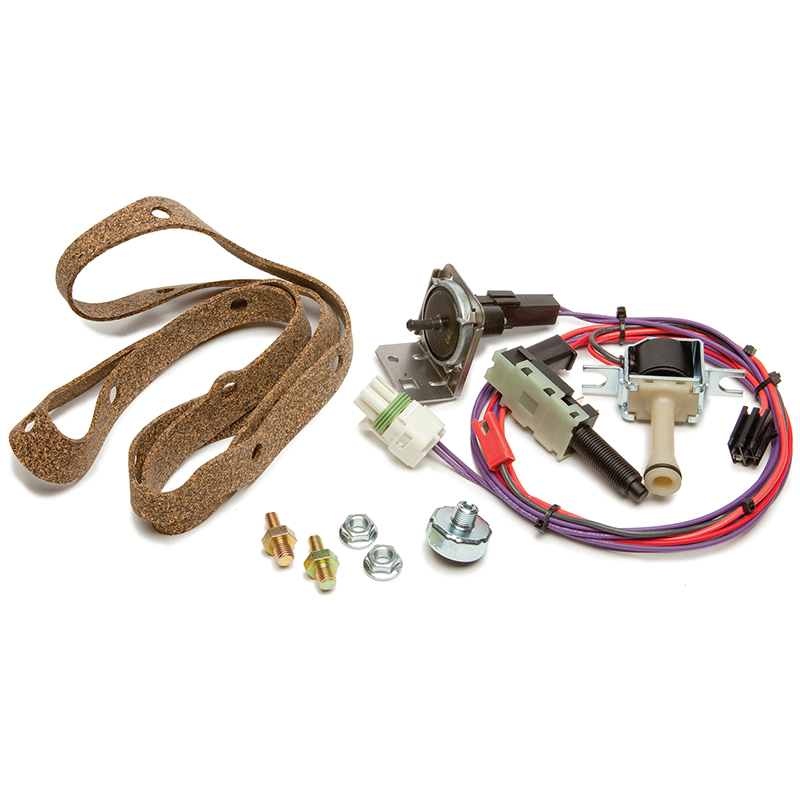

Kit Includes:
- Vacuum Switch
- 4th Gear Pressure Switch
- Brake Switch
- Torque Converter Lock-Up Solenoid
- Wire Harness
- New Transmission Pan Gasket
- Mounting Hardware
Connections Included:
- TCC (Torque Converter Clutch) Solenoid to 4th Gear Pressure Switch (included)
- TCC Solenoid to Main Case Pass-Through Connector
- Main Case Pass-Through Connector to Vacuum Switch (included)
- Vacuum Switch to 4 pin Brake Switch (included)
- Brake Switch to a 20 amp Fused Power Source
The GM TH200-4R transmissions were offered in GM cars from 1981 thru 1990. These transmissions used the square weatherpack connector that's provided in this kit.
Part Type: Torque Converter Lock-Up Kits
Indicator Light Included: No
Manual Override Switch Included: No
Quantity Sold as: A Kit
|
