Painless Trail Rocker System for Jeep Wrangler TJ 1997-2006
Introducing the brand new Trail Rocker from Painless, allowing you to control up to eight accessories on your CJ Jeep. The heart of this kit is enclosed in the weatherproof housing that surrounds the power center with eight fuses and relays. Controlling it are eight prewired switches mounted in their custom switch panel that mounts on your dash. The power center then provides you with the necessary weatherproof connectors and wiring to connect to your Jeep accessories ranging from lights to air lockers. Easily installed with their detailed instructions and plug-n-play design.
- Control up to eight accessories, (8) 30 amp fuses and (8) 30 amp relays
- Weather proof housing around the power center and connections
- Custom bolt-on powder coated bracket for the power center
- Switch panel mounts eight LED switches in a factory non-intrusive dash location
- Winch ready! The Trail Rocker system includes dedicated wires for controlling a which. Purchase of their winch control add-on kit is required to operation.
- The top of the weatherproof fuse & relay center features the stylish logo silkscreened onto it. Along with the fused power source mounted nxt to it. Underneath the fuse & relay center you will find the powder coated custom mounting bracket with stainless hardware. This bracket is designed to install in existing mounting holes under the hood.
- The heart of the Trail Rocker is the fuse & relay center. Here you will find (8) 30 amp fuses and (8) 30 amp relays
- The 200 amp MIDI fuse comes pre-installed ready to protect your investment.
- The underside of the fuse & relay cover has a built-in gasket to help keep any moisture out and to act as an extra support for the relays. This extra support on the relays ensures that no matter how good or bad you are on the trails, the relays will not pop out of place.
- Attention to detail shows in the bolt with O-ring combo to hold the top cover on.
- The switches are vibration, shock, thermoshock, moisture, and salt spray resistant. This panel mounts on top of your dash over your existing cubby hole. A new cubby is provided to place your goods in along with a padded insert.
- The back side of the switch panel comes pre-terminated and ready to plug into the fuse & relay center.
- The harness attaches the fuse & relay center to the switch panel. It's a plug-n-play design that only requires you to route it and plug it in.
- Exiting the fuse & relay center, is 21ft. of wire to reach any 12 volt accessory you have.
- Printed ever 12in. on the wire you'll find the circuit description.

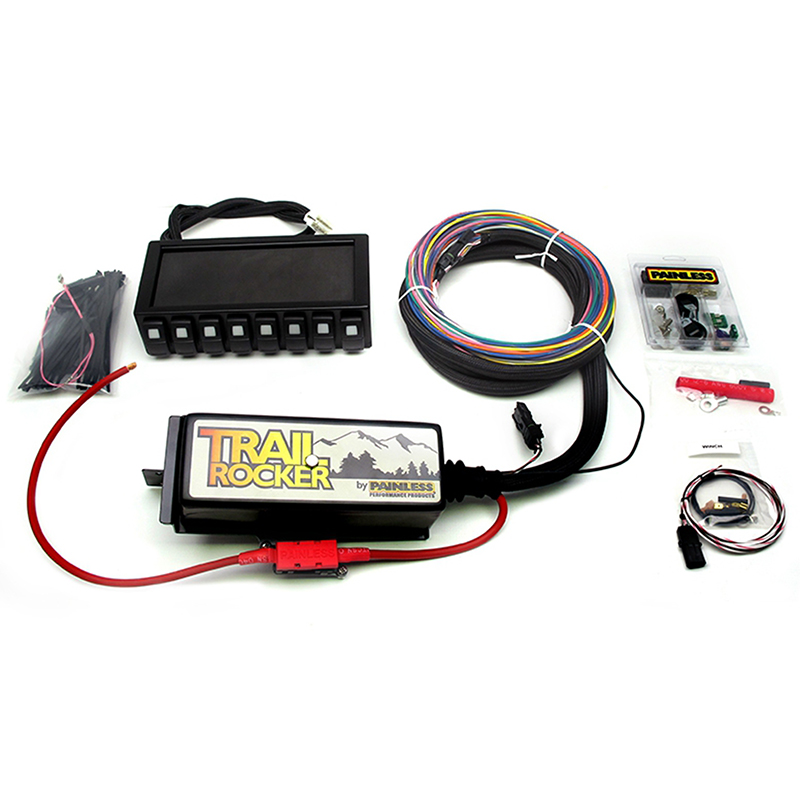

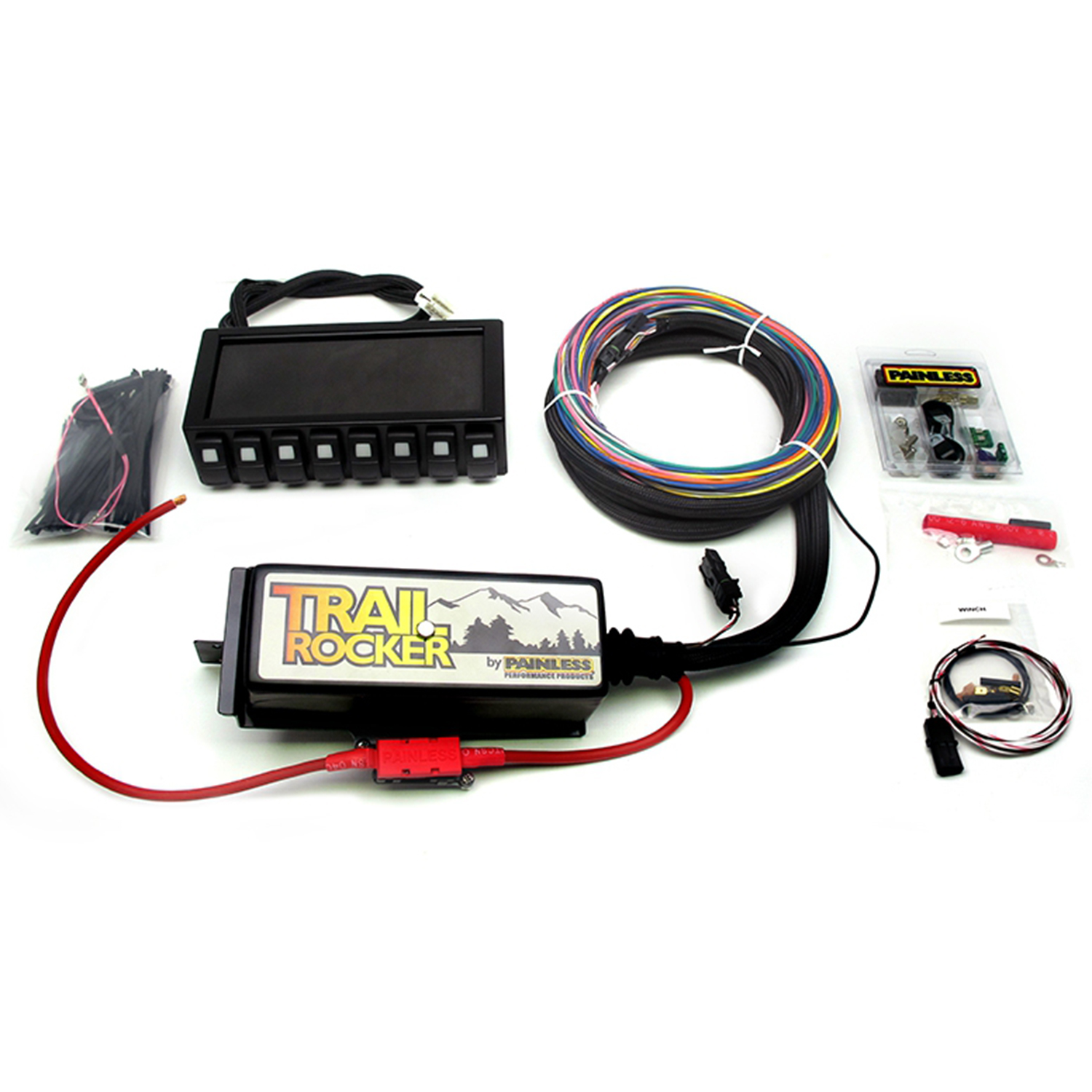

- The parts kit comes with everything you'll need to install the Trail Rocker, except the tools and the Jeep. You'll also find a custom pigtail that allows the Trail Rocker to power up only when the key is turned on. The system is shipped to be powered at all times.
|
