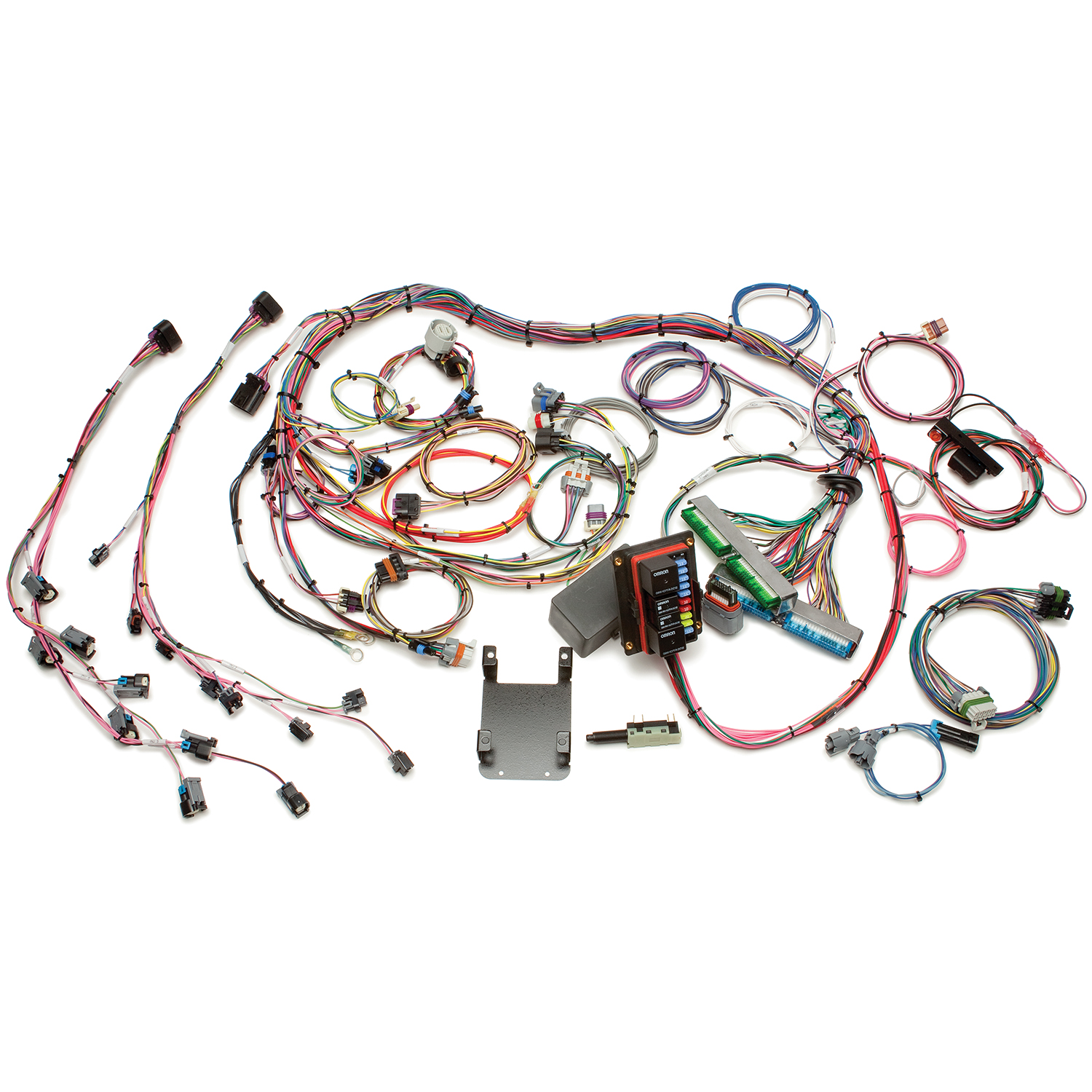

Painless Throttle by Wire Harness for GM Gen III '99-'06 4.8L/5.3L/6.0L
This harness is designed for the 1999-2006 4.8L, 5.3L, 6.0L throttle by wire engines with a 4L60E, 4L65E, 4L70E, 4L80E, 4L85E, or manual transmission. These engines were found in factory 2003-2006 Vortec trucks. 1999-2002 engines will require installing a 2003-2006 TBW throttle body. Engine codes supported are LR4, LM7, LM4,and LQ9. This harness will support flex fuel and non-flex fuel engines. Flex fuel engines will require an inline fuel composition sensor in order to run E85 fuel. Included with this harness is a 10 circuit weatherproof fuse block & mounting bracket and GM color coded wires with labels for easy installation.
This standard length harness allows four feet from the back of the intake manifold to where the fuse block and ECM mount. Perfect for those what plan to mount these components under the dash or in the glove box.
This kit includes:
- All new fuel injection harness with OEM fitment connectors and harness breakouts
- OBDII connector, mounting bracket and check engine light
- Crimp-on terminals, rubber grommet
- Mounting hardware
The fuse block protects the following circuits:
- Brake and Cruise Switch
- Dual 40 amp ignition relays
- ECM (IGN)
- ECM B+
- Fuel Injectors
- Fuel Pump
- Heated O2 sensors
- Ignition Coils
- Mass airflow and fuel compensation sensor
- Throttle Actuator Control Module
- Transmission and Park Neutral Position Switch
- 20 amp Cooling Fan Relay
- 20 amp Fuel Pump Relay
This harness includes connections for the following components:
- AC Request
- Accelerator Pedal Position Sensor
- Alternator
- Brake Switch
- Cam Position Sensor
- Cooling Fans
- Crank Position Sensor
- Cruise Control
- Data Link Connector
- Driver/Pass Front O2 Sensors
- ECM
- Engine Coolant Temperature
- Fuel Compensation Sensor
- Fuel Pump
- Fuel Pump Test
- Grounds
- Ignition Coils
- Ignition Switch Signal
- Injectors - Gas & Flex Fuel Sub-Harness
- Input Speed Sensor
- Knock Sensors
- Malfunction Indicator Lamp
- MAP Sensor
- Mass Airflow Sensor & Intake Air Temperature Sensor
- Output Speed Sensor
- Park/Neutral Switch
- ECM
- Reverse Lights
- Starter
- Starter Relay Activation
- Tachometer
- Throttle Actuator Control Module
- Throttle Actuator Control Module to Accelerator Pedal Pigtail
- Throttle Body
- Transmission
- VSS Output for Speedometer
- Knock Sensor Pigtail
|
