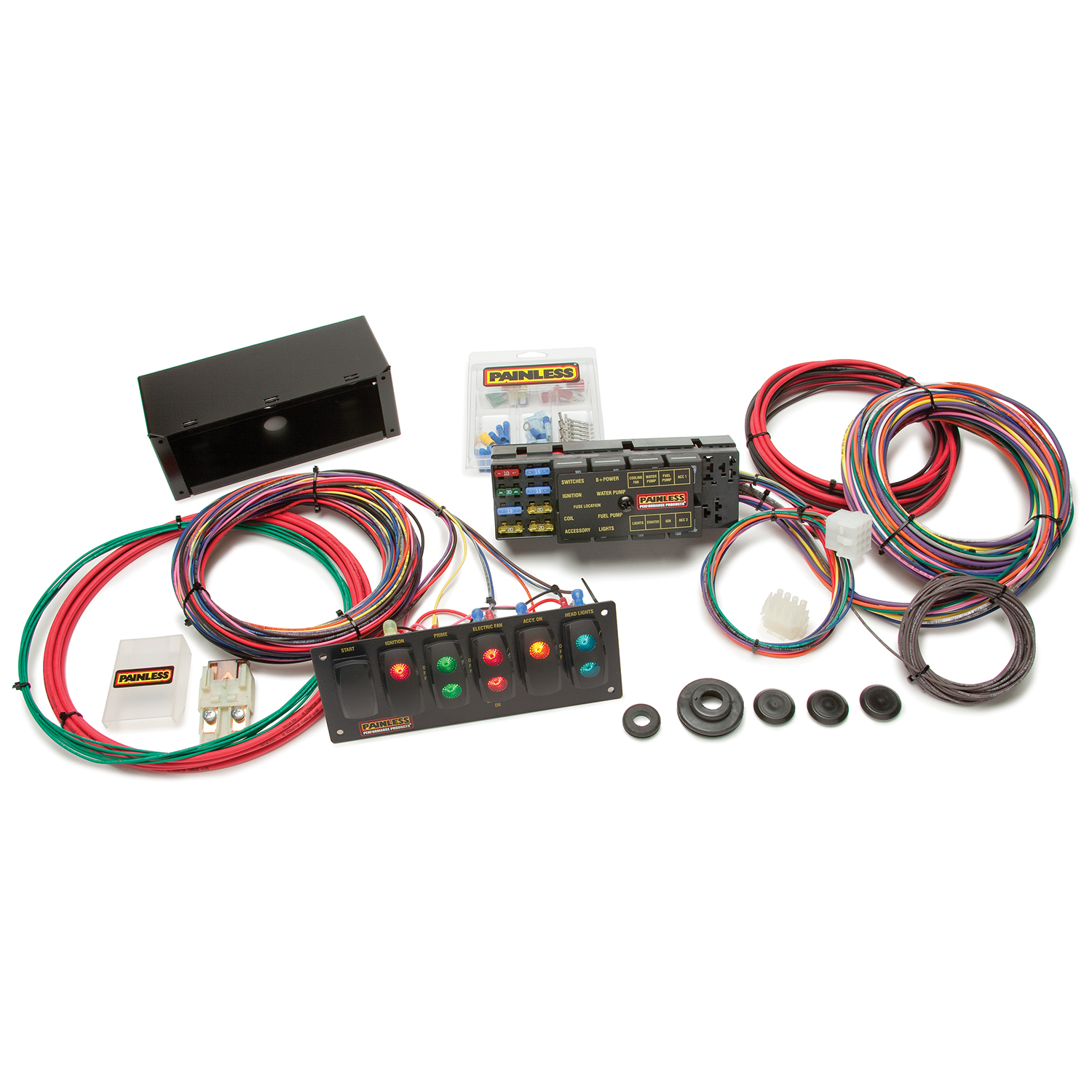

Painless Race Only Chassis Harness with Switch Panels

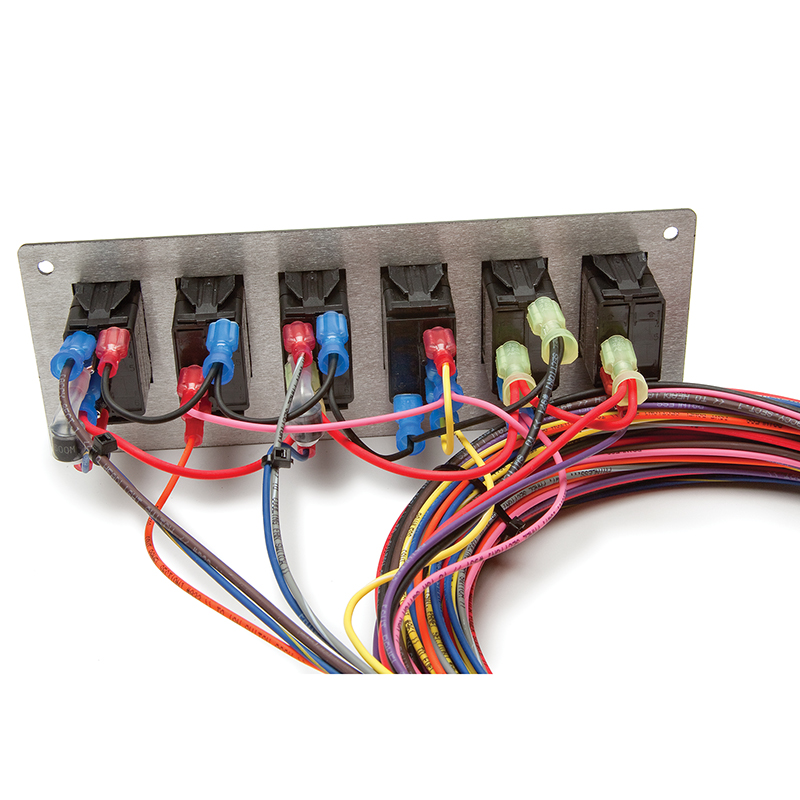

This 10 circuit race only harness features a relay for each fused circuit and 6 switch contour rocker panel to control it. The wires are pneumatically terminated and pre-inserted into the fuse block and relay block. The fuse block is labeled for the circuits below but can be used to power and 12 volt electrical component. The switch panel measures 8in. wide by 3in. tall. The panel is painted black and silkscreened for easy identification of switch functions. This panel can be roll bar or dash mounted. Each wire is oversized and custom printed with the circuit identification as well as using GM color codes for easy installation.
This harness includes these circuits:
- Accessory #1 (Relay)
- Accessory #2 (Relay)
- Electric Fuel Pump (Relay)
- Electric Water Pump (Relay)
- Electric Fan (Relay)
- Fused Power Source
- Headlights (Relay)
- Ignition Coil (Relay)
- Starting (Relay)
- Tail Lights
|
