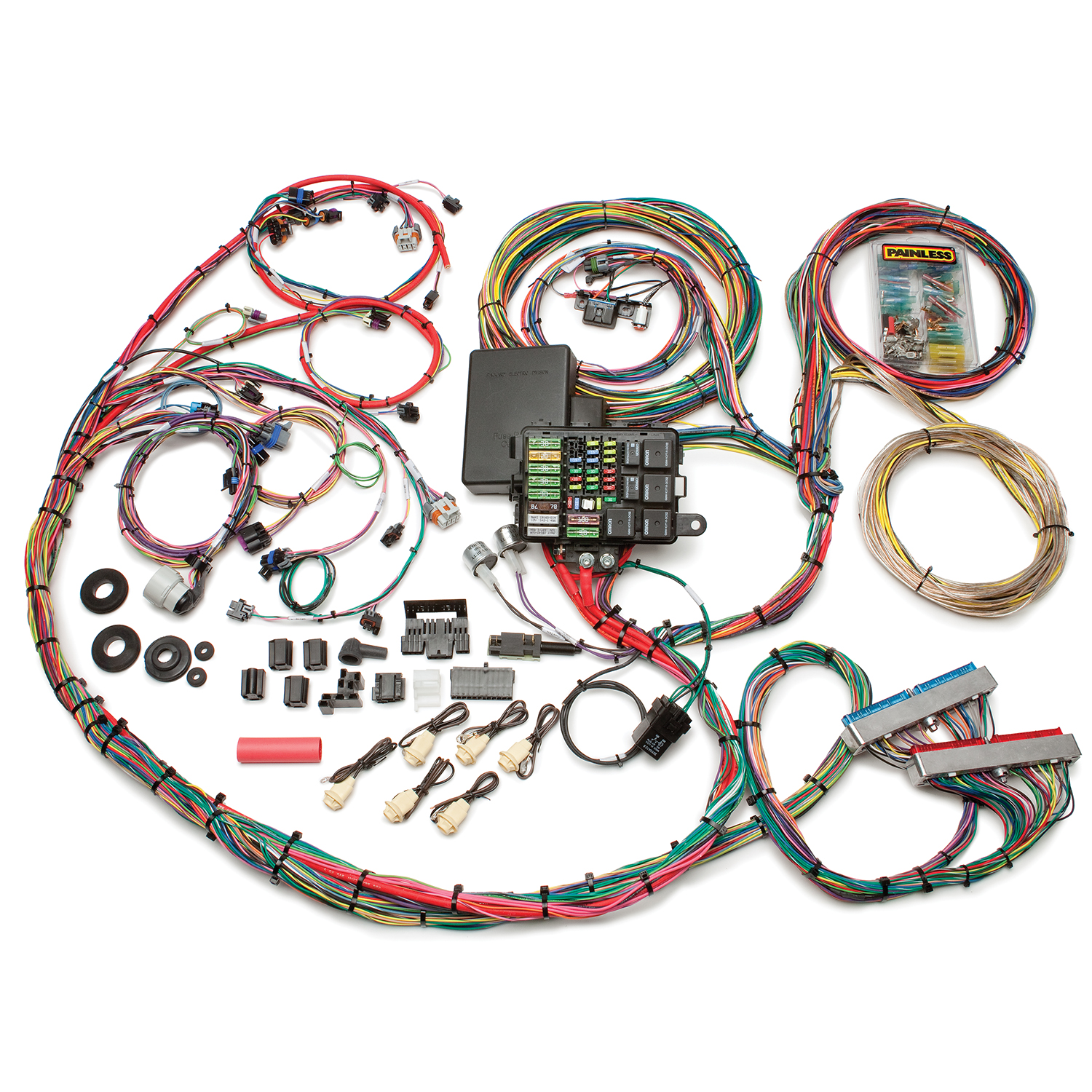

Painless Integrated EFI/Chassis Harness for GM LS1/LS6 1997-2004
These integrated EFI/Chassis harnesses are the perfect solution for anyone doing a complete rewire of a vehicle as well as transplanting a GM Gen III fuel injected engine. This kit is designed for use on 1999-2006 4.6L/5.3L/6.0L Vortec truck engines with a 4L60E transmission. The chassis wiring and fuel injection wiring are fully integrated into a single 26 circuit/7 relay fuse block, eliminating the need to have separate fuses and relays for the fuel injection. These harnesses do not support flex fuel engines and require the use of a mechanical throttle body. Included in this kit you will also find all the required terminals & connectors for easy installation.
This harness also requires the following mating parts: ECM #12200411
This harness has the following chassis connections:
- AC & Heat
- Accessory/Cigarette Lighter
- Backup Lights
- Brake Lights
- Charging
- Cruise Control
- Courtesy & Dome Light
- Electric Fuel Pump
- Emergency Flashers
- Cooling Fan Relay #1
- Cooling Fan Relay #2
- Fused Power Source
- Headlights
- Horn Relay
- Ignition Coil
- Instrument Panel Lighting and Gauges
- Park Lights
- Power Antenna
- Power Door Locks
- Power Windows
- Radio/Clock (Constant and Switched)
- Starting
- Tail Lights
- Third Brake Light
- Turn Signals
- Wipers
The fuel injection harness includes connections for the following components:
- AC Compressor
- Alternator
- Cam Position Sensor
- Coolant Temperature Gauge
- Crank Position Sensor
- Data Link Connector
- Driver/Pass Front O2 Sensors
- Engine Coolant Temperature
- Fuel Pump Relay
- Grounds
- Idle Air Control
- Ignition Coils
- Ignition Switch Signal
- Injectors
- Intake Air Temperature Sensor
- Knock Sensors
- Malfunction Indicator Lamp
- MAP Sensor
- Mass Airflow Sensor/Intake Air Temperature Sensor
- Oil Pressure Gauge
- ECM
- PRNDL Switch
- Starter
- Tachometer
- Throttle Position Sensor
- Transmission
- Vehicle Speed Sensor
- VSS Output for Speedometer
|
