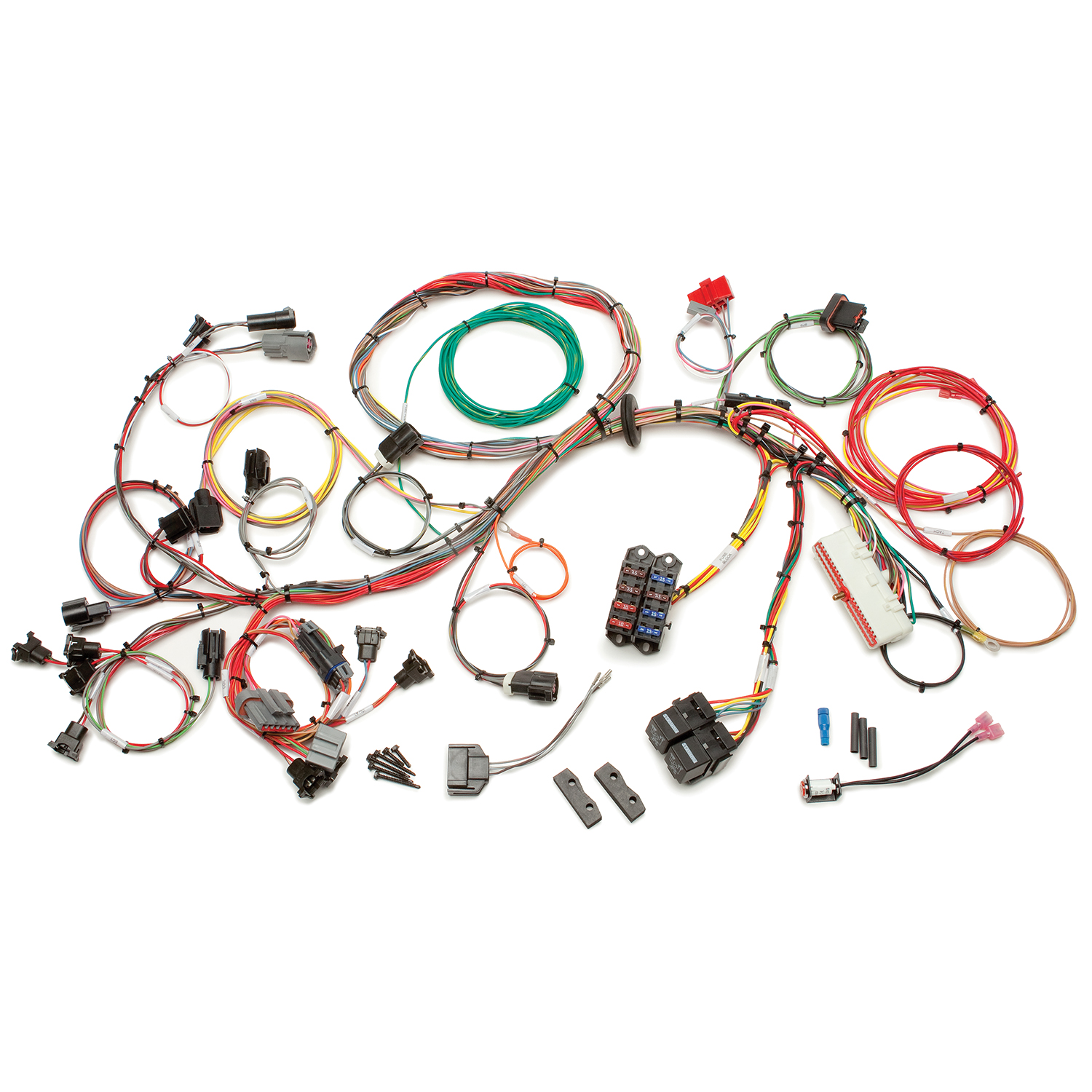

Painless Fuel Injection Harness for Ford 5.0L 1986-1995
This harness is designed for the 1986-1995 Ford 5.0L car HO EFI engines. You must use the 1989-1993 MAF, Distributor, and ECM. 1986-1988 must add MAF (mass air flow) sensor. 1994-1995 must modify TPS wiring and change distributor. Harnesses do not include all of the original connections for the original emissions. Included with this harness is an 8 circuit modular fuse block and ECM mount. Perfect for those that plan to mount these components under the dash or in the glove box.
This kit includes:
- All new fuel injection harness with OEM fitment connectors and harness breakouts
- Diagnostic connector and check engine light
- Rubber grommet
- Mounting hardware
The fuse block protects the following circuits:
- Check Engine Light
- Driver Side Injectors
- Dual 40 amp Ignition Relays
- EEC-IV
- Fuel Pump Relay (B+)
- Fuel Pump Relay (IGN)
- Heated O2 Sensors
- Mass Airflow, EVR, ISC
- Pass Side Injectors
This harness includes connections for the following components:
- Barometric Pressure Sensor
- Data Link Connector
- ECM
- EEC Ground
- EEC Power Relay
- EEC Test
- EGR Vacuum Regulator
- EGR Valve
- Engine Coolant Temperature
- Fuel Pump
- Fuel Pump Relay
- Grounds
- Idle Air Control
- Ignition Coil
- Ignition Switch Signal
- Ignition Timing Setting
- Injectors
- Intake Air Temperature
- Malfunction Indicator Lamp
- Mass Airflow Sensor
- Neutral Safety Switch
- O2 Sensor
- Starter Relay
- TFI Ground
- TFI Pigtail
- Throttle Position Sensor
- VSS
|
