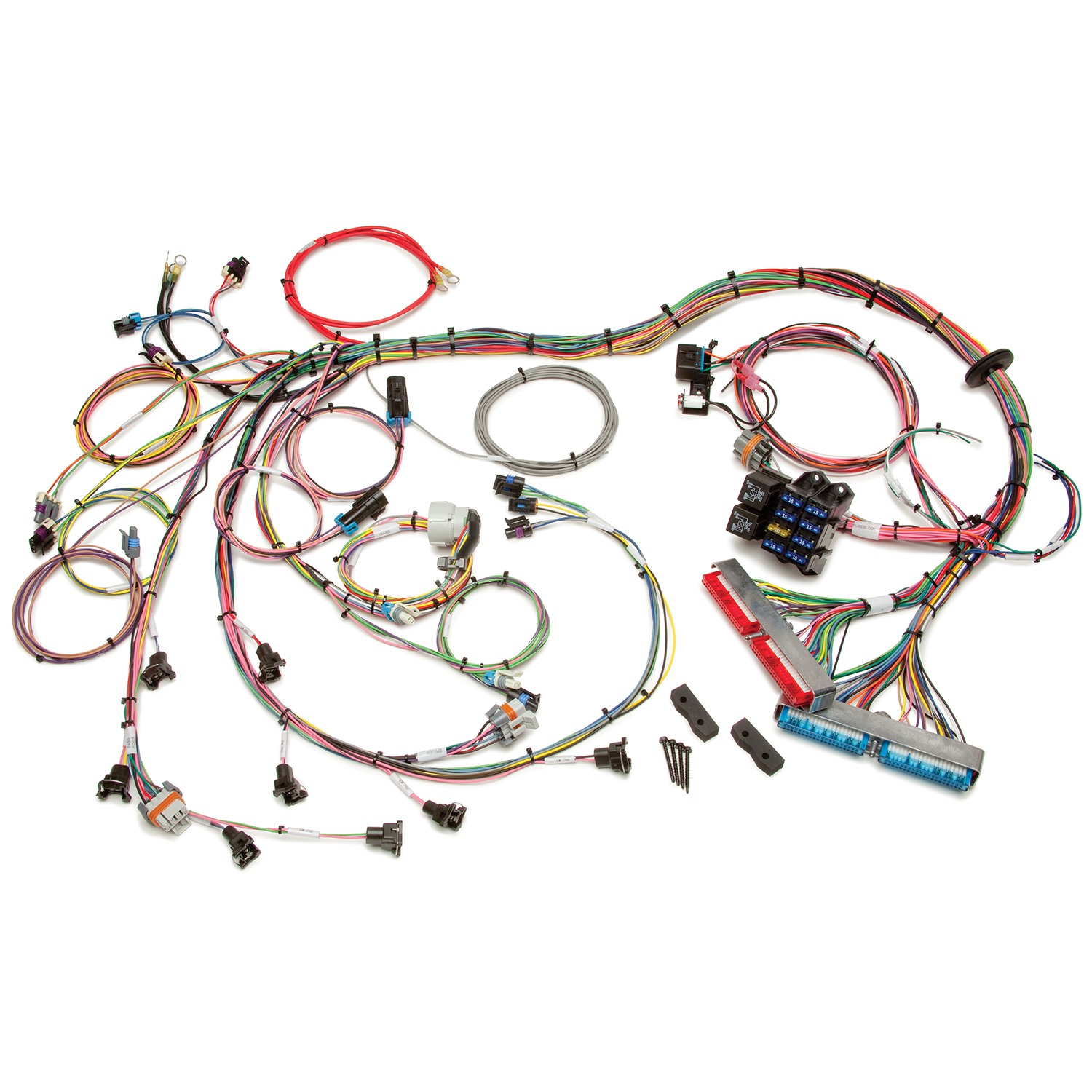

Painless Engine Harness for GM LS1 '98-'04
This harness is designed for the 1998-2004 LS1 mechanical throttle body engines using a 1999+ LS1/LS6 ECM with a 4L60E/4L65E/4L80E automatic or T56 manual transmission. These engines were found in 1998-2002 Camaro/Firebird. This harness will also work on 1997-2004 Throttle By Wire (TBW) LS1/LS6 engines which has been changed to mechanical throttle body or any 1999-2006 (4.8L, 5.3L, & 6.2L) Vortec truck engine which has been changed to a factory or aftermarket LS1 intake manifold, mechanical throttle body, and injectors. Harnesses do not include any emissions related connections but are available separately. Included with this harness is an 8 circuit modular fuse block and GM color coded wires with labels for easy installation.
This standard length harness allows four feet from the back of the intake manifold to where the fuse block and ECM mount. Perfect for those that plan to mount these components under the dash or in the glove box.
This kit includes:
- All new fuel injection harness with OEM fitment connectors and harness breakouts
- OBDII connector, mounting bracket and check engine light
- Rubber grommet
- Mounting hardware
The fuse block protects the following circuits:
- DLC B+
- Driver Side Injectors and Coils
- Dual 40 amp Ignition Relays
- Fuel Pump
- Heated O2 Sensors, Mass Airflow Sensor, & Brake Switch
- Pass Side Injectors and Coils
- ECM and Malfunction Indicator Lamp
- ECM B+
- Transmission
This harness includes connections for the following components:
- Alternator
- Brake Switch
- Cam Position Sensor
- Data Link Connector
- Driver/Pass Front O2 Sensors
- Engine Coolant Temperature
- Fan #1 Relay Ground ECM Activation
- Fan #2 Relay Ground ECM Activation
- Fuel Pump
- Fuel Pump Relay
- Fuel Pump Test
- Gear Indicator Switch
- Grounds
- Idle Air Control
- Ignition Coils
- Ignition Switch Signal
- Injectors
- Intake Air Temperature Sensor
- Knock Sensors
- Malfunction Indicator Lamp
- MAP Sensor
- Mass Airflow Sensor
- ECM
- Reverse Lockout Solenoid
- Skip Shift Light
- Skip Shift Solenoid
- Starter
- Tachometer
- Throttle Position Sensor
- Transmission
- VATS
- Vehicle Speed Sensor
- VSS Output for Speedometer
|
