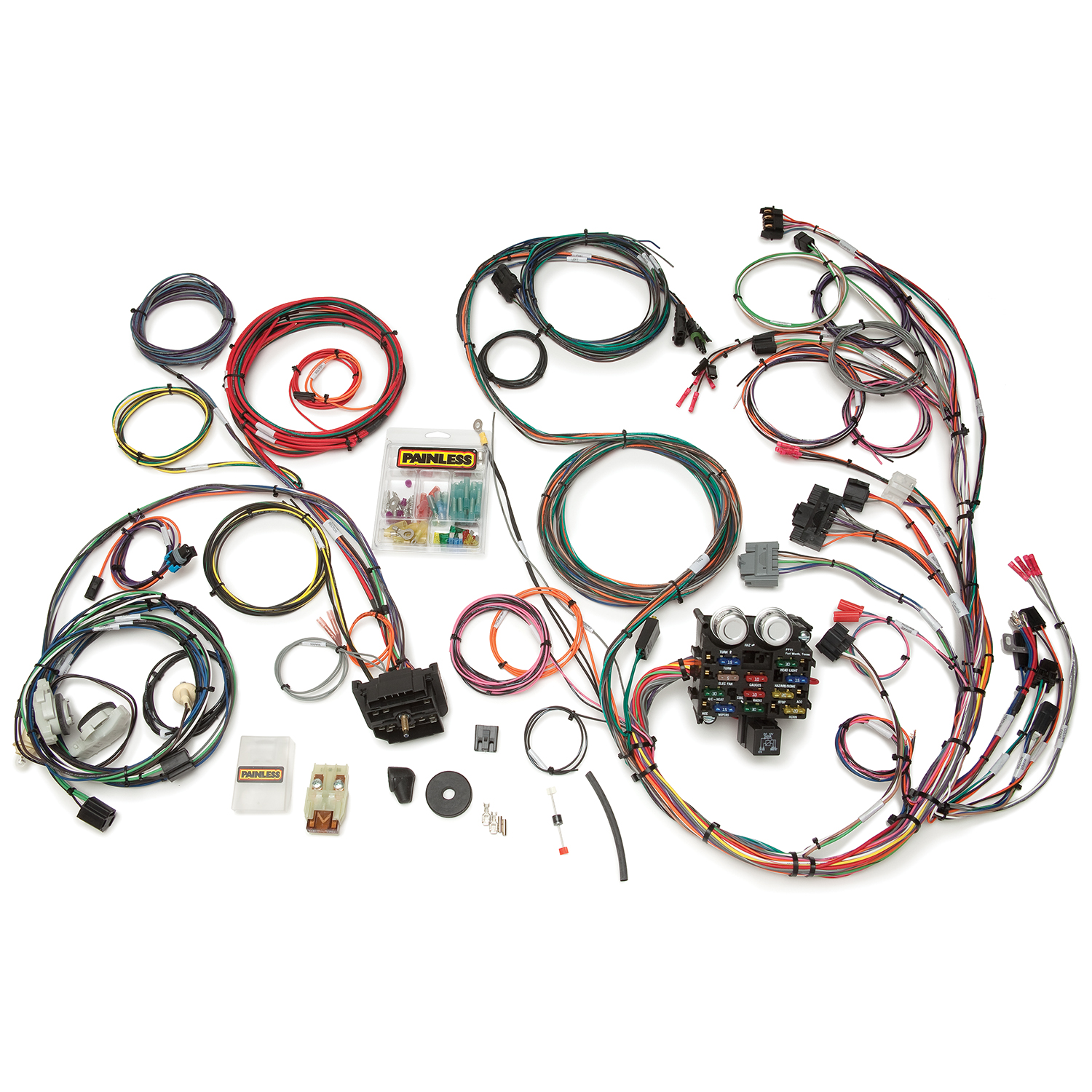

Painless Direct Fit Chassis Harness
This Painless Performance 23 circuit direct fit harness for 1987 to 1991 YJ Jeeps features a factory style bulkhead connector that mounts the fuse block in the OEM location. This Jeep harness includes many of the factory connectors and terminals needed. Included in this kit you will find a detailed manual and all of the wires are factory color coded and labeled for an easy install.
Note: Factory EFI emissions ICM are not supported.
Connections Included: Dimmer switch, speedometer, turn switch, ignition switch, gauge cluster, wiper switch, brake switch, wiper motor, tachometer, heater resistor, heater switch, tail lights, fuel tank, washer pump, horn, headlights, marker lights, blower motor, and turn/park lights.
Includes circuits for:
- AC & Heat
- Accessory / Cigarette Lighter
- Backup Lights
- Brake Lights
- Charging
- Dome and Courtesy Lights
- Electric Choke
- Electric Fuel Pump
- Emergency Flashers
- Fan Relay Activation Power
- Fuel Injection Power
- Fused Power Source
- Headlights
- Horn (Relay)
- Ignition Coil
- Instrument Panel Lighting and Gauges
- Park Lights
- Radio/Clock (Constant and Switched)
- Starting
- Tail Lights and License Plate Light
- Third Brake Light
- Turn Signals
- Wipers and Washer Pump (Front and Rear)
Including Wires For:
- Brake Warning Light
- Four Wheel Drive Light
- Fuel Gauge
- HVAC Panel Lighting
- Oil Gauge
- Tachometer
- Temperature Gauge
|
