Painless Direct Fit Chassis Harnesses

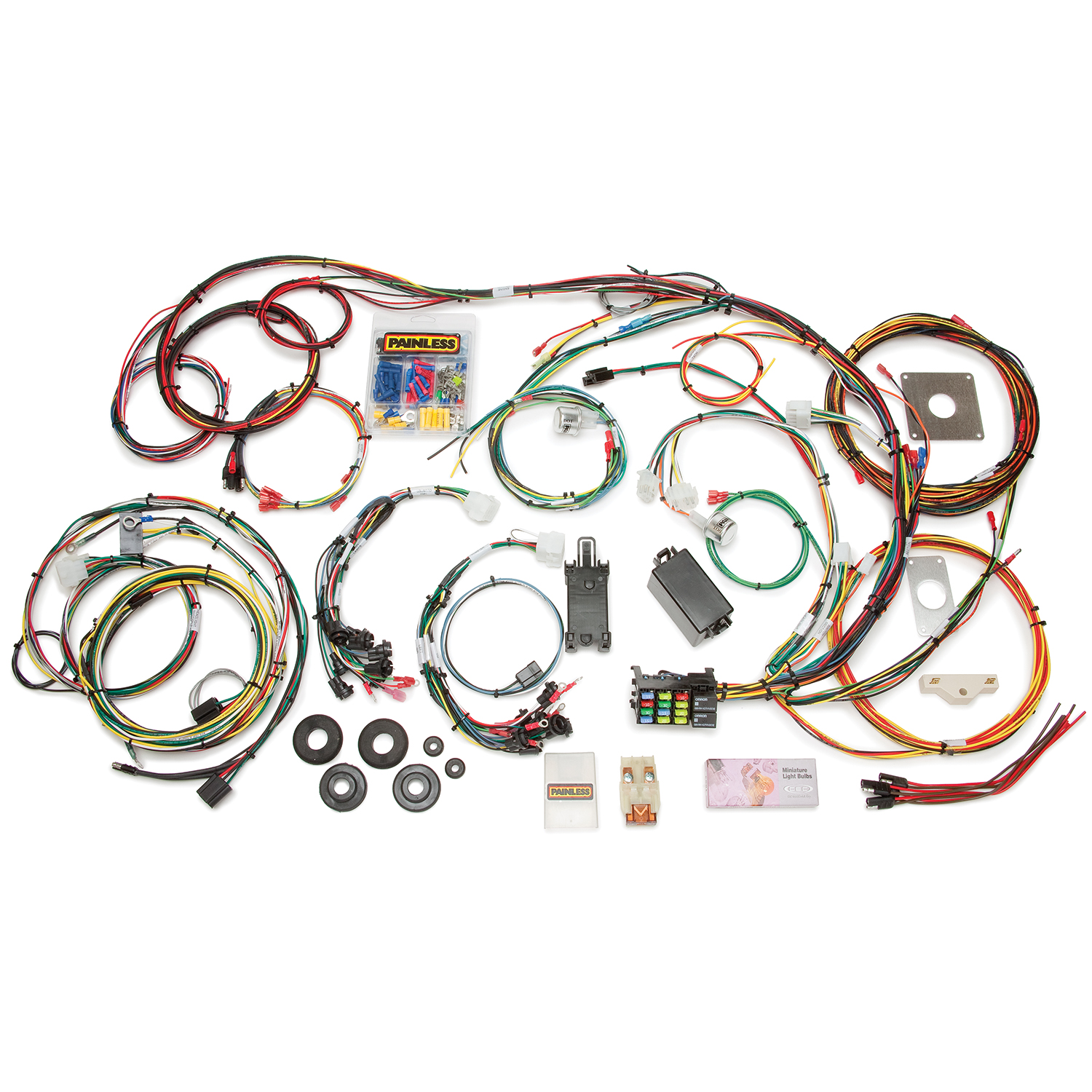

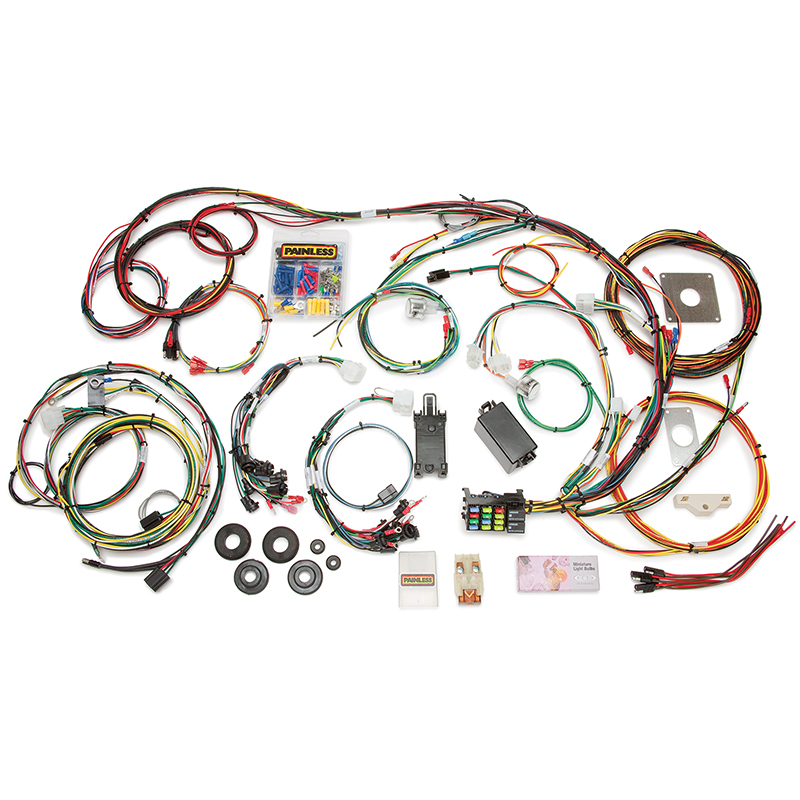

This 22 circuit direct fit 1965-1966 Ford Mustang wiring harness has many of the factory connector already installed on the harness out of the box. This harness uses our unique covered micro-fuse block. Also featured is an auxiliary circuit with 20 amp relay for accessories such as fog lights or an electric fuel pump. Each wire is custom printed with the circuit identification as well as using Ford wiring color codes for easy installation.
NOTE: This harness will not fit 1964 1/2 Mustangs.
Connections Included: Blower motor, wipers, ignition, headlight switches, voltage regulator, turn signals and flashers, lighter brake switch, dimmer switch, brake warning light and headlight bulbs. Complete Ford color coded chassis wiring harness for 1965-1966 Mustangs.
Includes circuits for:
- AC & Heat
- Accessory / Cigarette Lighter
- Accessory Relay
- Backup Lights
- Brake Lights
- Charging
- Courtesy and Dome Light
- Electric Choke
- Emergency Flashers
- Fan Relay Activation Power
- Fused Power Source
- Glove Box Light
- Headlights
- Horn (Relay)
- Ignition Coil
- Instrument Panel Lighting and Gauges
- Park Lights
- Radio/Clock (Constant and Switched)
- Starting
- Tail Lights and License Plate Light
- Turn Signals
- Wipers and Washer Pump
Including Wires For:
- Ammeter
- Fuel Gauge
- Oil Gauge
- Tachometer
- Temperature Gauge
- Voltmeter
|
