Painless Direct Fit Chassis Harnesses

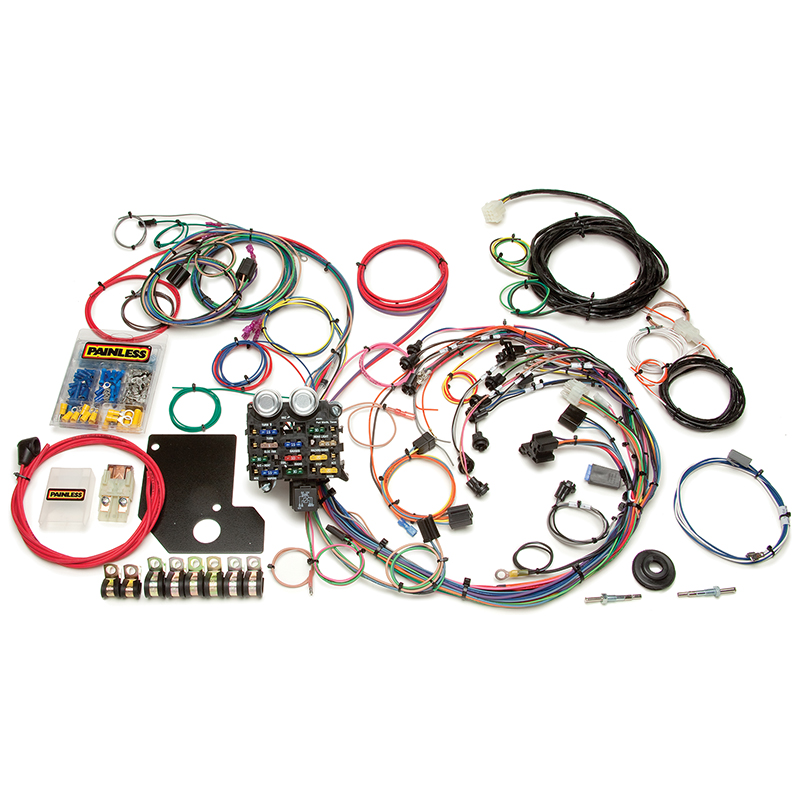

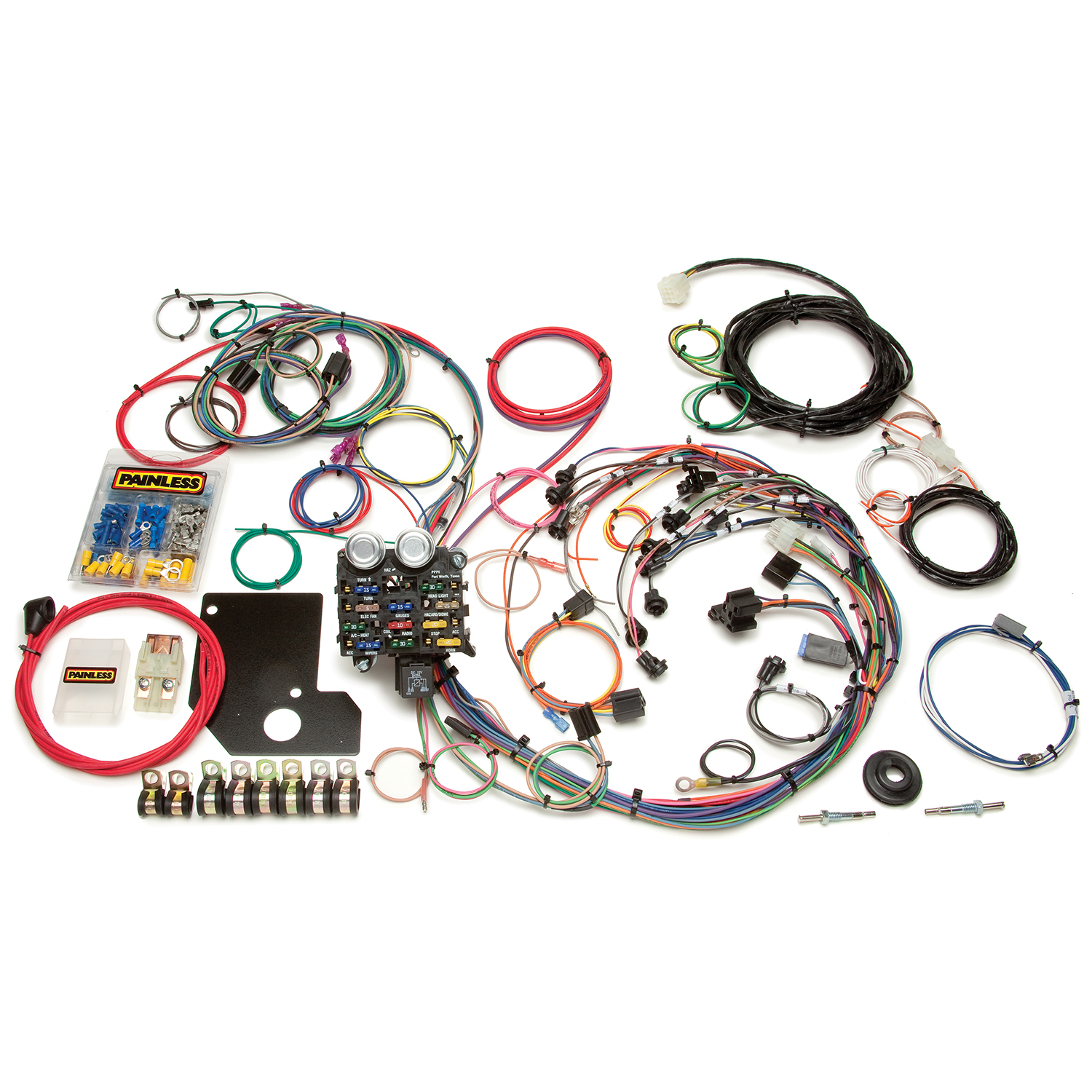

This 21 circuit direct fit wiring harness has many of the factory connectors already installed on the harness out of the box for your 1966 or 1967 Chevy II or Nova. Including: the headlight connectors & switch, fuel gauge connector, dimmer switch, brake switch, heater switch, blower resistor, wiper switch, backup switch, horn, dash light sockets and warning light sockets. This harness is split into three sections (engine, dome light, & rear) for easy installation and troubleshooting. You'll also find in this kit a harness for the factory air, a high output alternator pigtail with the connector installed, two door jam switches, 12 instrument panel light bulbs, eight harness mounting clamps, a custom Painless mounting plate for the fuse block, and each wire is custom printed with the circuit identification as well as using GM color codes for easy installation. Wire your Nova or Chevy II once and wire it right with Painless wiring.
Includes circuits for:
- AC & Heat
- Accessory / Cigarette Lighter
- Backup Lights
- Brake Lights
- Charging
- Dome Light
- Electric Choke
- Emergency Flashers
- Fan Relay Activation Power
- Fused Power Source
- Glove Box Light
- Headlights
- Horn (Relay)
- Ignition Coil
- Instrument Panel Lighting and Gauges
- Park Lights
- Radio/Clock (Constant and Switched)
- Starting
- Tail Lights and License Plate Light
- Turn Signals
- Wipers
Including Wires For:
- Brake Warning Light
- Charge Light
- Fuel Gauge
- Oil Gauge
- Tachometer
- Temperature Gauge
|
