Painless Classic Customizable Pickup Truck Chassis Harnesses

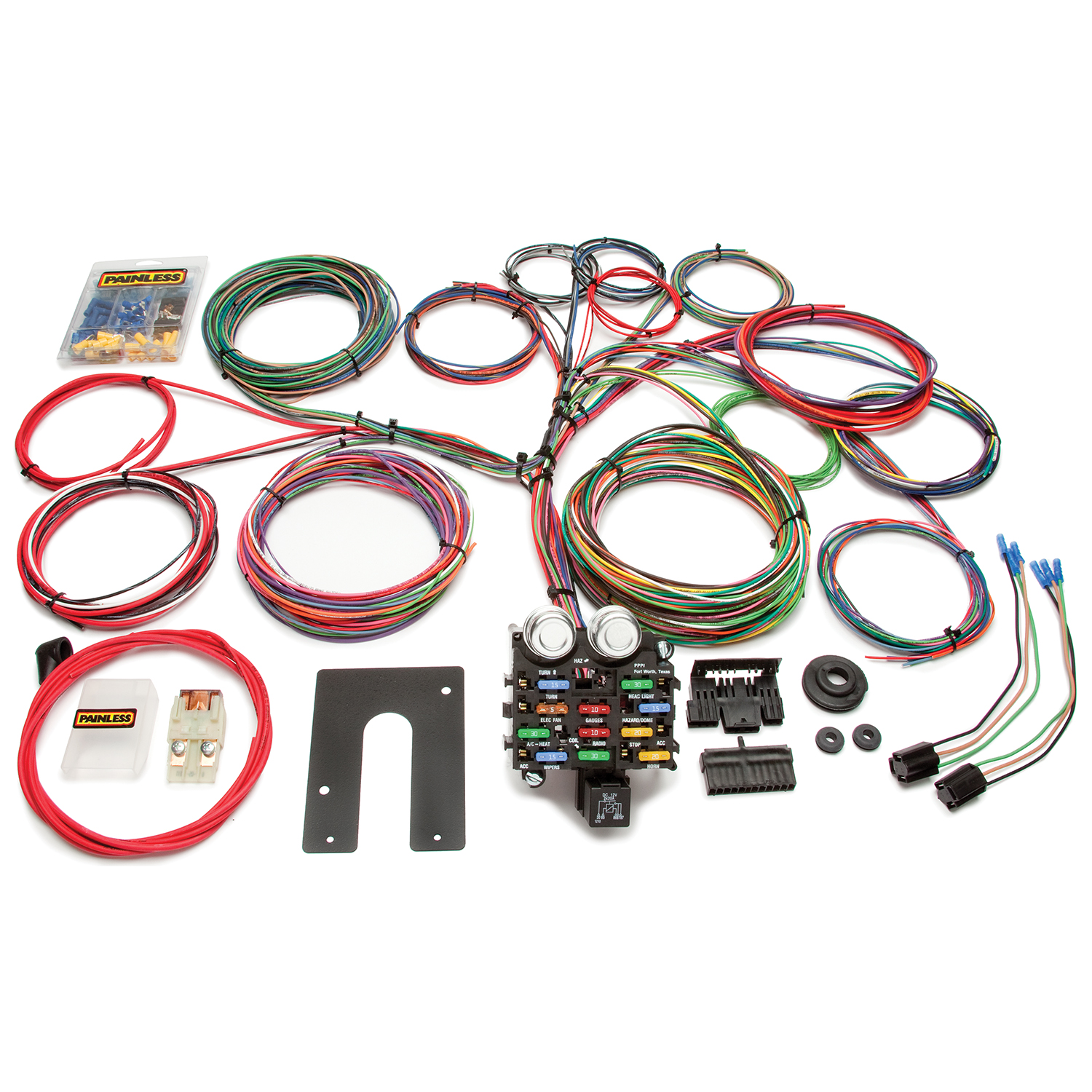

This Painless Performance customizable 21 circuit pickup chassis wiring harness provides ample wire lengths, making the wiring harness especially well-suited for trucks with long beds and extended cabs. This harness comes with open ended ignition switch wires that can easily be adapted to any ignition switch out there. For those using a GM Keyed Column, part number PLW10103 comes with a Pre-Terminated GM ignition switch connector. Included with this harness are the following parts; a GM engineered fuse block & Painless mounting bracket; GM turn signal connectors; pre wire plugs for the headlights & dimmer switch; and each wire is custom printed with the circuit identification as well as using GM color codes for easy installation.
Connections Included: GM steering column turn switch and ignition switch, dimmer switch, two headlight pigtails, 10SI & 12SI alternator, HEI power and tach and 20 extra 56 series terminals for use with any factory GM 56 series connector such as headlight switch, wiper switch or A/C switch/blower motor.
Includes circuits for: Includes wires for:
- A/C & Heat - Fuel Gauge
- Accessory / Cigarette Lighter - Oil Gauge
- Backup Lights - Tachometer
- Break Lights - Temperature Gauge
- Charging - Voltmeter
- Dome Light
- Electric Choke
- Emergency Flashers
- Fan Relay Activation Power
- Fused Power Source
- Headlights
- Horn (Relay)
- Ignition Coil
- Instrument Panel Lighting and Gauges
- Park Lights
- Radio/Clock (Constant and Switched)
- Starting
- Tail Lights
- Third Brake Light
- Turn Signals
- Wipers
|
