Painless Direct Fit Chassis Harnesses

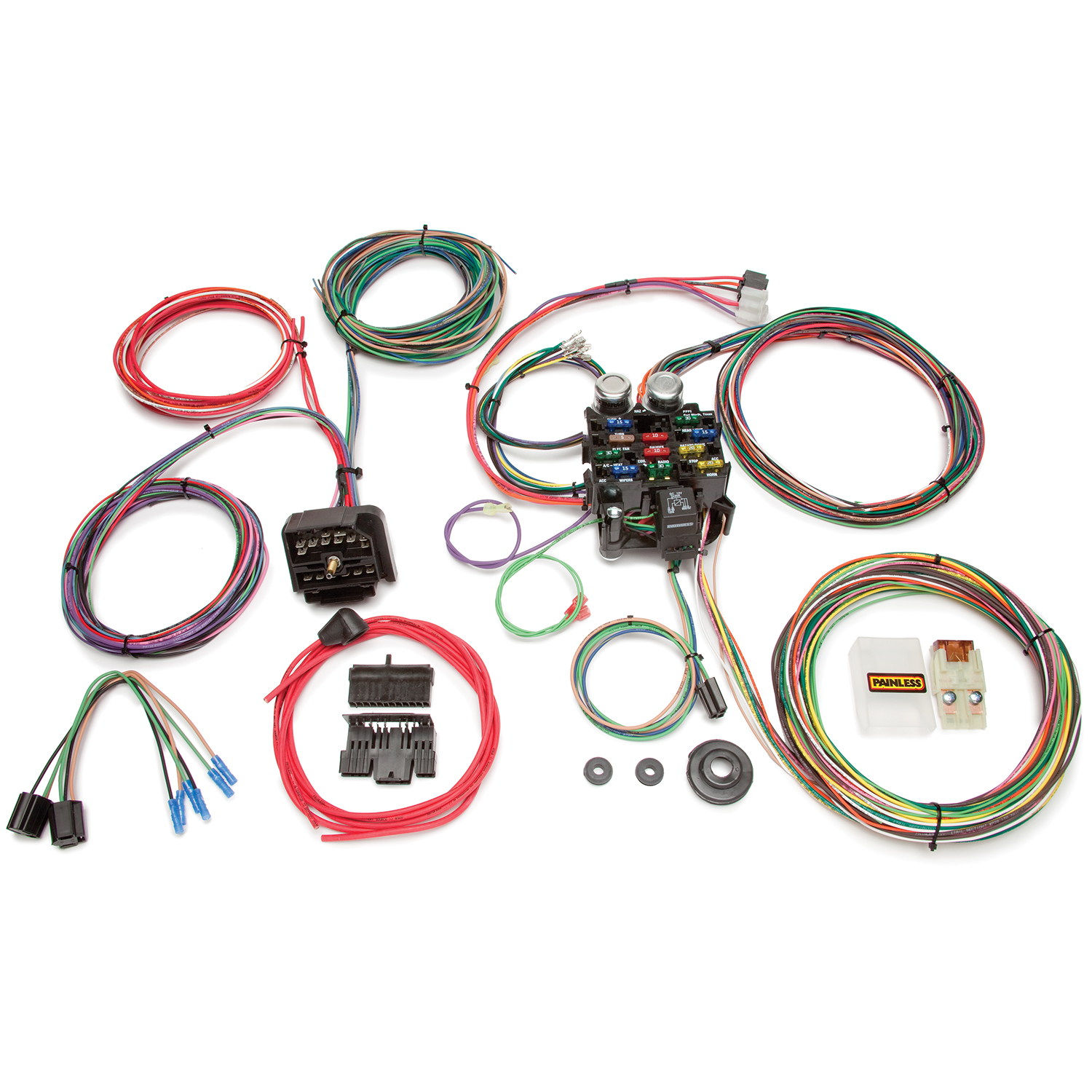

This 22 circuit Painless Performance factory upgrade harness for 1976-1986 CJ Jeeps uses the OEM style fuse block. Open ended wire leads allow for custom routing of the wiring for your CJ. This harness is designed to be a customizable kit, and routes the wire through the firewall via a bulkhead connector. Like from the factory on your Jeep, the ignition switch is in the column. This kit includes GM column mounted ignition switch connectors and a GM column mounted turn signal switch connector pre-terminated and ready to install. Also included are pre-wire plugs for headlights and the dimmer switch. Each wire is custom printed with the circuit identification as well as using factory color codes for easy installation.
Connections Included: Column mounted ignition switch, turn switch, dimmer switch, two headlight pigtails, 10SI & 12SI Alternator, HEI Power and tach and 20 extra 56 series terminals for use with factory GM 56 series connector such as headlight switch, wiper switch or AC switch/blower motor.
Includes circuits for:
- AC & Heat
- Accessory / Cigarette Lighter
- Backup Lights
- Brake Lights
- Charging
- Dome Light
- Electric Choke
- Emergency Flashers
- Fan Relay Activation Power
- Fused Power Source
- Headlights
- Horn (Relay)
- Ignition Coil
- Instrument Panel Lighting and Gauges
- Park Lights
- Radio/Clock (Constant and Switched)
- Starting
- Tail Lights
- Third Brake Light
- Turn Signals
- Under Hood Light
- Wipers
Including Wires For:
- Emergency Brake Light
- Four Wheel Drive Light
- Fuel Gauge
- Oil Gauge
- Tachometer
- Temperature Gauge
- Voltmeter
|
