Painless Direct Fit Chassis Harnesses

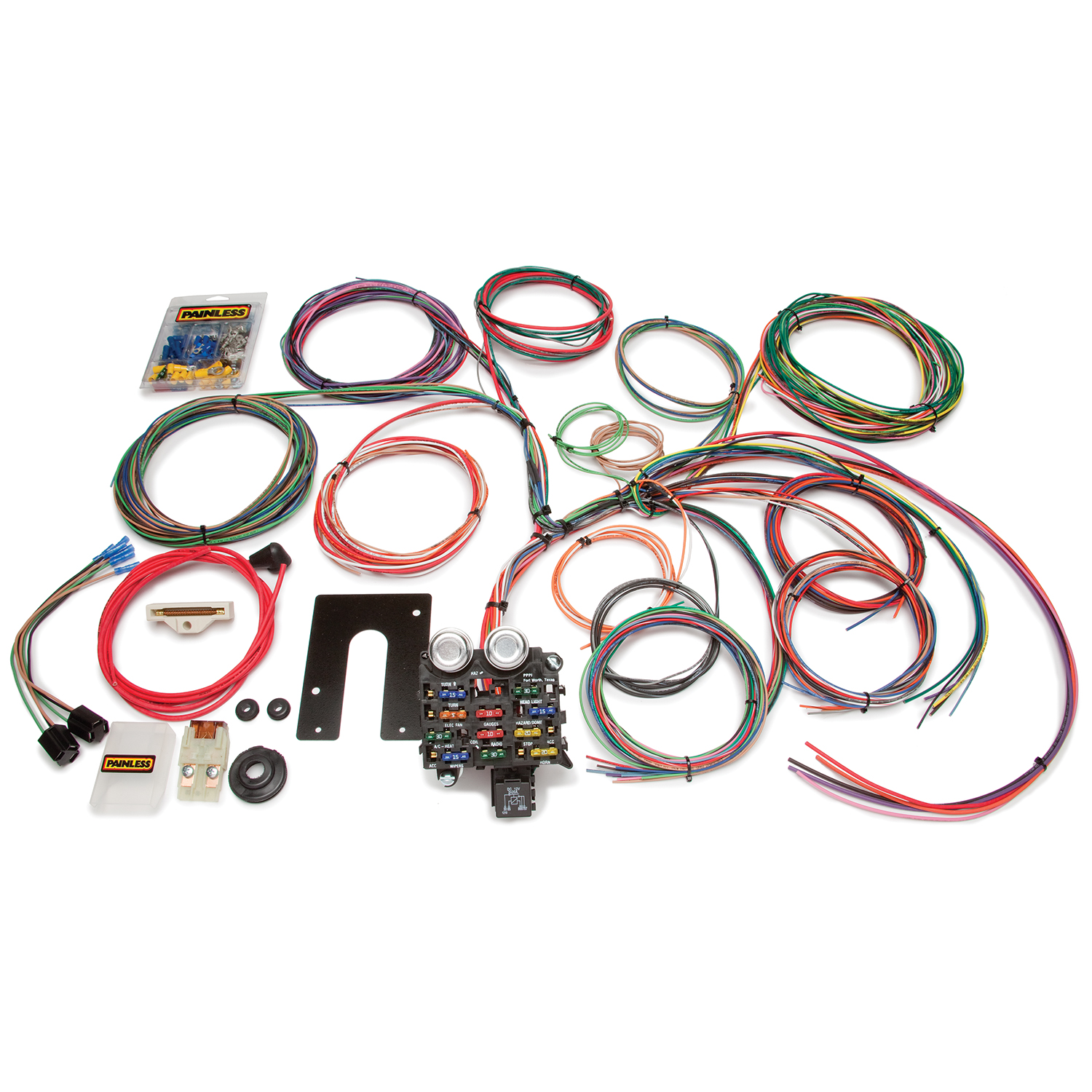

This 22 circuit Painless Performance factory upgrade harness for 1944-1974 CJ Jeeps uses the OEM style fuse block. Open ended wire leads allow for custom routing of the wiring for your CJ. This harness routes the wires through a firewall via a grommet in the bulkhead and the ignition switch is in the dash for your earlier Jeep CJ. Also included are pre-wire plugs for headlights. Each wire is custom printed with the circuit identification as well as using factory color codes for easy installation.
Connections Included: Two headlight pigtails, 10SI & 12SI alternator, dimmer switch and 20 extra 56 series terminals for use with any Factory GM 56 series connector such as headlight switch, wiper switch, or AC switch/blower motor.
Includes circuits for:
- AC & Heat
- Accessory / Cigarette Lighter
- Backup Lights
- Brake Lights
- Charging
- Dome Light
- Electric Choke
- Emergency Flashers
- Fan Relay Activation Power
- Fused Power Source
- Headlights
- Horn (Relay)
- Ignition Coil
- Instrument Panel Lighting and Gauges
- Park Lights
- Radio/Clock (Constant and Switched)
- Starting
- Tail Lights
- Third Brake Light
- Turn Signals
- Under Hood Light
- Wipers and Washer Pump
Including Wires For:
- Brake Warning Light
- Emergency Brake Light
- Four Wheel Drive Light
- Fuel Gauge
- Oil Gauge
- Tachometer
- Temperature Gauge
- Voltmeter
|
