Painless, Classic Customizable Chassis Harness, 28 Circuit, GM Keyed Column |
|
 |
Painless Classic Customizable Chassis Harness

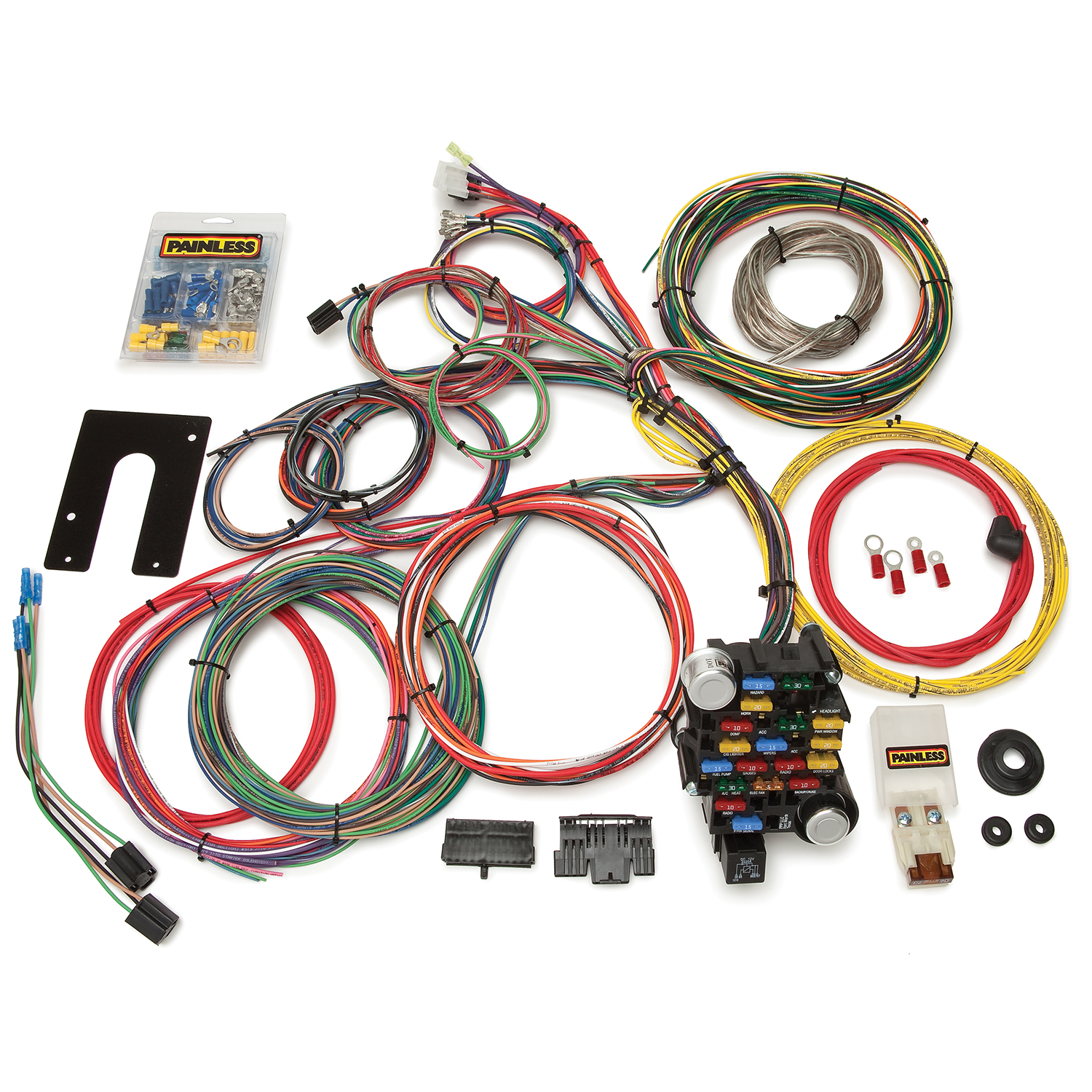

This Painless Performance 28 circuit chassis harness their most widely used customizable automotive wiring harness. This universal kit is great for hot rod or street rod builds, but you'll find that it's easily adaptable to almost any vehicle included larger full size or muscle cars. This kit comes with GM column mounted ignition switch connectors. Included with this harness are the following parts; a GM engineered fuse block & Painless mounting bracket; GM turn signal connectors; prewired plugs for the headlights & dimmer switch; and each wire is custom printed with the circuit identification as well as using GM color codes for easy installation. Wire your classic car once and wire it right with a Painless Customizable wiring harness.
Connections Included: GM steering column turn switch and ignition switch, dimmer switch, two headlight pigtails, 10SI & 12SI alternator, HEI power and tach and 20 extra 56 series terminals for use with any factory GM 56 series connector such as headlight switch, wiper switch or A/C switch/blower motor.
Includes circuits for:
- A/C & Heat
- Accessory
- Accessory / Cigarette Lighter
- Accessory / Trunk Light
- Backup Lights
- Brake Lights
- Charging
- Dome Light
- Electric Choke
- Emergency Flashers
- Fan Relay Activation Power
- Fused Power Source
- Headlights
- Horn (Relay)
- Ignition Coil
- Instrument Panel Lighting and Gauges
- Park Lights
- Radio/Clock (Constant and Switched)
- Starting
- Tail Lights
- Third Brake Light
- Turn Signals
- Wipers
Includes Wires For:
- Fuel Gauge
- Oil Gauge
- Speakers
- Tachometer
- Temperature Gauge
- Voltmeter
|
|
