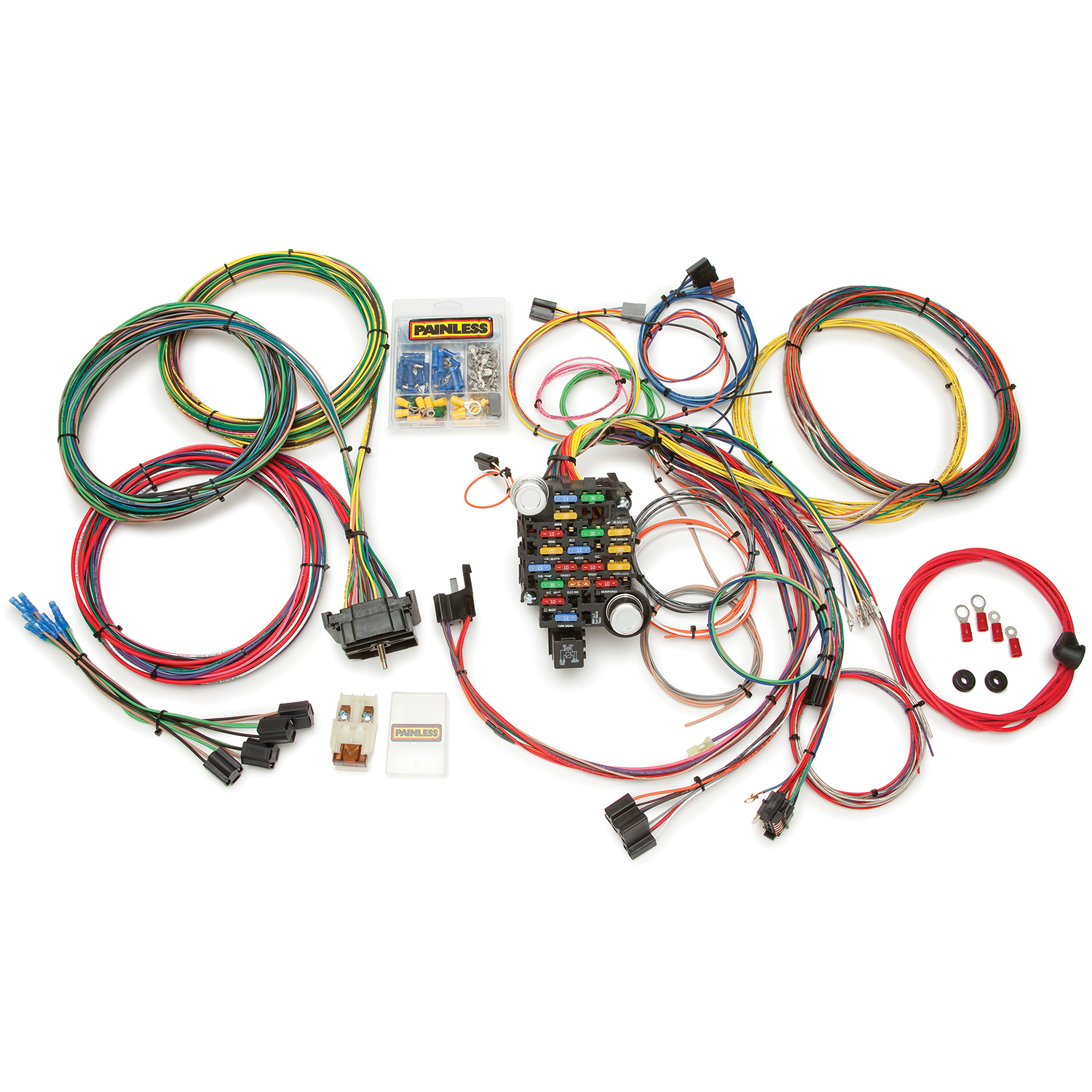

Painless Classic Plus Customizable Chassis Harness
This Painless 28 circuit 1967-1972 GMC/Chevy wiring harness was designed to fit the trucks, Blazers, and Suburbans, whether C10, C20, or C30. It features a factory style bulkhead connector and has many of the factory connectors already installed on the harness out of the box.
Includes: The headlight connectors and switch, dimmer switch, wiper motor, ignition switch, blower motor & switch, blower resistor, and instrument cluster. Each wire is custom printed with the circuit identification as well as using GM color codes for easy installation.
Connections Included: Ignition switch, headlight switch, dimmer switch, wiper motor, blower switch, blower motor, blower resistor, instrument cluster and headlights, 10SI & 12SI alternator, HEI power and tach, and 20 extra 56 series terminals for use with any factory GM 56 series connector such as headlight switch, wiper switch, or AC switch/blower motor.
Includes circuits for:
- AC & Heat
- Accessory / Camper Cover Light
- Accessory / Cigarette Lighter
- Accessory / Four Wheel Drive Switch
- Backup Lights
- Brake Lights
- Charging
- Cruise Control
- Dome Light
- Electric Choke
- Electric Fuel Pump
- Emergency Flashers
- Fan Relay Activation Power
- Fused Power Source
- Headlights
- Horn (Relay)
- Ignition Coil
- Instrument Panel Lighting and Gauges
- Park Lights
- Power Antenna
- Power Door Locks
- Power Windows
- Radio/Clock (Constant and Switched)
- Starting
- Tail Lights
- Third Brake Light
- Turn Signals
- Wipers and Washer Pump
Including Wires For:
- Ammeter
- Brake Warning Light
- Four Wheel Drive Light
- Fuel Gauge
- Generator Light
- Oil Gauge
- Tachometer
- Temperature Gauge
|
