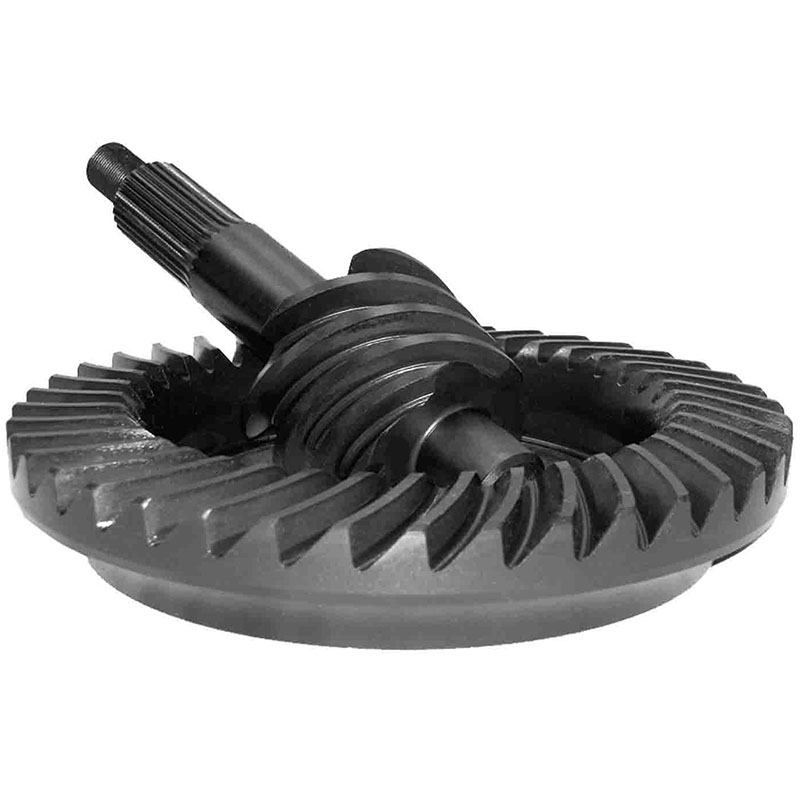

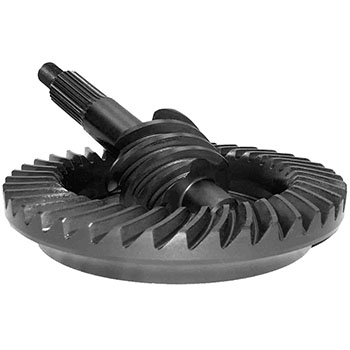

Motive Gear Performance "AX" Series Lightweight Ring & Pinion Set
AX Series is the industry's first factory lightweight racing gear. 2 lbs. of rotating weight eliminated. Lightened during the manufacturing process. This results in gear sets that have been engineered, not modified. Computerized heat treatment is applied after the lightening process. Manufactured from 8620 material. Designed for all forms of competition. Ratios available from 4.22 to 7.33
Part Type: Ring & Pinion Gear
Application: Ford 9.0"
Ring & Pinion Ratio: 6.66:1
Ring Teeth: 40
Pinion Teeth: 6
Ring Gear Bolts: 10, 7/16"-20 RH
Ring Gear Diameter: 9.0"
Pinion Shaft Diameter: 1.313"
Pinion Spline Count: 28 Spline
Ring Gear Rotation: Standard
Installation Kit Included: No
Manufacturer: Motive Gear Performance
Manufacturer's Part Number: F890666AX
UPC: 698231482704
Weight: 19.15 lbs.
Warranty: No warranty expressed or implied
Quantity: Sold as Set
|
