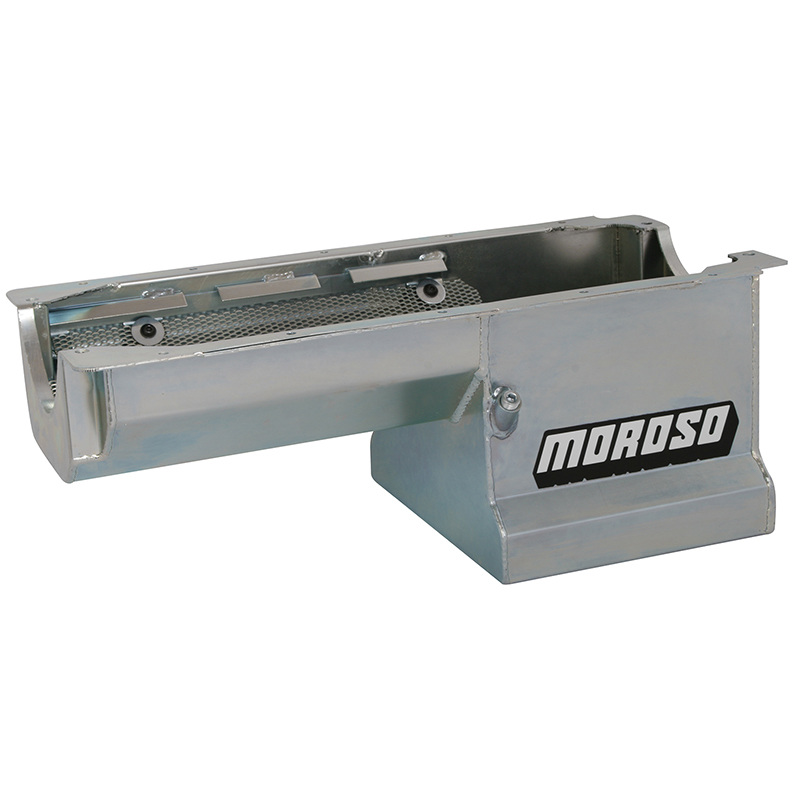

Moroso Kicked-Out Sump Pan
Increased oil capacity without restricting ground clearance. Trap door baffles are included to provide constant supply of oil to the pickup under street performance or race conditions.
Accepts 4.125" stroke with most steel rods
Kicked-out sump

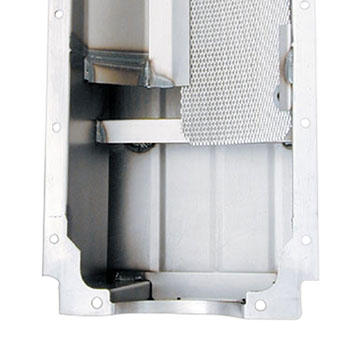

Trap door baffle for improved oil control
Compatible with most starter/flywheel combinations
Will clear stock exhaust, Borla, Hedman and Hooker headers
Part Type: Oil Pan
Application: Chevrolet Small Block Dart/Rocket Blocks
Oil Pan Style: Street/Strip
Oil Pan Capacity: 7 Quarts

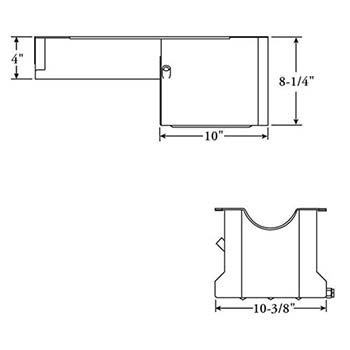

Oil Pan Depth: 8.250"
Oil Pan Sump Depth: 8.250"
Sump Location: Rear
Sump Style: Wet
Kicked Out Sump: Yes
Rear Main Seal Style: 2-Piece
Stroker Clearanced: No
Maximum Stroke with Steel Rod: 4.125"
Dipstick Provision: Yes
Dipstick Location: Driver Side
Dipstick Included: No
Baffled: Yes
Trap Door Baffle: Yes
Crank Scraper Included: Yes
Windage Tray Included: Yes
Sump Tray Included: No
Oil Level Sight Plug: No
Oil Temp Fitting: No
Pickup Included: No
Recommended Pickup for M55 Style Pump: MOR24171
Recommended Pickup for M55HV Style Pump: MOR24351
Oil Pump Included: No
Oil Pump Driveshaft Included: No
Drain Plug Included: Yes
Gaskets Included: No
Hardware Included: No
Oil Pan Material: Steel
Oil Pan Finish: Clear Zinc
Manufacturer: Moroso
Manufacturer's Part Number: 20193
UPC: 084663201936
Weight: 16.50 lbs.
Warranty: http://moroso.com/warranties
Quantity: Sold as Each
|
