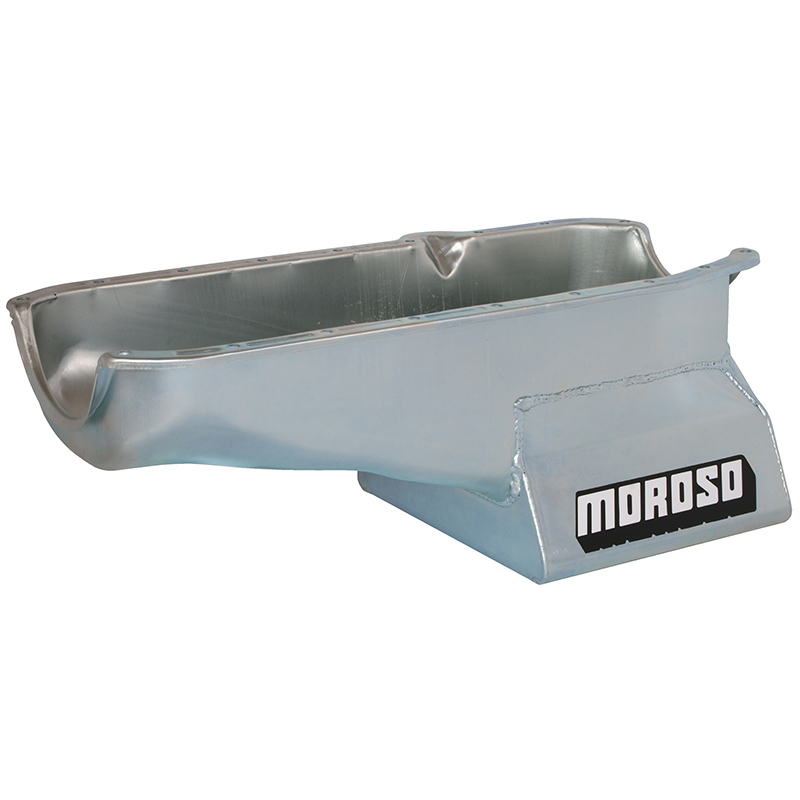

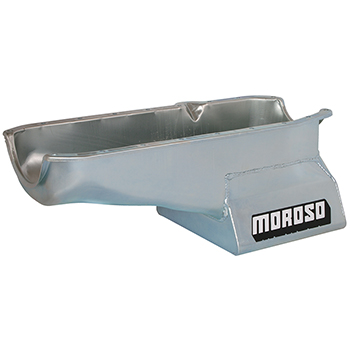

Moroso Kicked-Out Sump Pan
Increased oil capacity without restricting ground clearance. Trap door baffles are included to provide constant supply of oil to the pickup under street performance or race conditions.
Accepts 4.125" stroke with most steel rods
Kicked-out sump
Trap door baffle for improved oil control
Compatible with most starter/flywheel combinations
Will clear stock exhaust, Borla, Hedman and Hooker headers
Part Type: Oil Pan
Application: Chevrolet Small Block (except '62-'67 Nova/Chevy II and V8 Monza/Vega) '86-Up
Oil Pan Style: Street/Strip
Oil Pan Capacity: 7 Quarts
Oil Pan Depth: 8.250"
Oil Pan Sump Depth: 8.250"
Sump Location: Rear
Sump Style: Wet
Kicked Out Sump: Yes
Rear Main Seal Style: 2-Piece
Stroker Clearanced: Yes
Maximum Stroke with Steel Rod: 4.125"
Dipstick Provision: Yes
Dipstick Location: Passenger Side
Dipstick Included: No
Baffled: Yes
Trap Door Baffle: Yes
Crank Scraper Included: No
Windage Tray Included: No
Sump Tray Included: No
Oil Level Sight Plug: No
Oil Temp Fitting: No
Pickup Included: No
Recommended Pickup for M55 Style Pump: MOR24170
Recommended Pickup for M55HV Style Pump: MOR24350
Recommended Pickup for M155HV Style Pump: MOR24360
Oil Pump Included: No
Oil Pump Driveshaft Included: No
Drain Plug Included: Yes
Gaskets Included: No
Hardware Included: No
Oil Pan Material: Steel
Oil Pan Finish: Clear Zinc
Manufacturer: Moroso
Manufacturer's Part Number: 20205
UPC: 084663202056
Weight: 12.575 lbs.
Warranty: http://moroso.com/warranties
Quantity: Sold as Each
|
