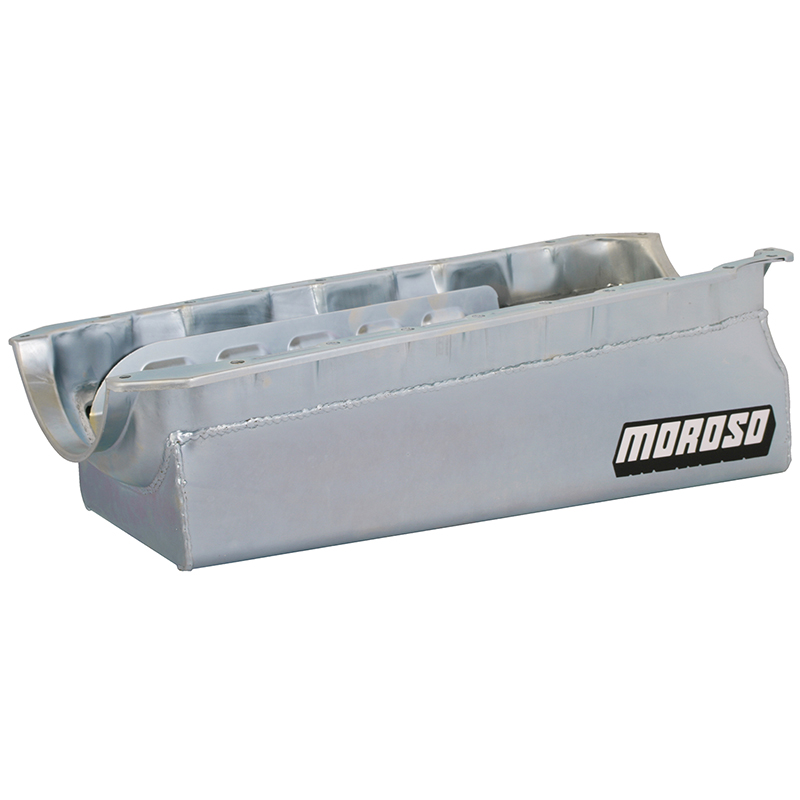

Moroso "Eliminator" Full Sump Oil Pan
Equipped with a solid, louvered, radiused tray that extends to the rear of the pan, scraping away power robbing windage. Dual rear baffles keep oil from riding up the back of the pan. Three additional baffles keep oil in the pickup area.
• Core based oil pan, utilizing stock pan rail bolt pattern
• Box design sump for high capacity applications
• Pan clears 4.50" stroke with steel rods, 4.25" stroke with aluminum rods
• Solid louvered tray for increased oil control
• For use with 168 and 153 tooth flywheel combinations
Painted steel pan Part Type: Oil Pans
UPC: 084663200328
Oil Pan Style: Drag Race
Sump Style: Wet
Sump Location: Full
Rear Main Seal Style: 2-Piece
Oil Pan Capacity: 7.00 quarts
Stroker Clearanced: Yes
Maximum Stroke with OE Rod: 4.500"
Oil Pan Depth (in): 7.750"
Dipstick Provision: No
Dipstick Included: No
Baffled: Yes
Oil Pan Material: Steel
Oil Pan Color: Black
Kicked Out: No
Hardware Included: No
Drain Plug Thread Size: 1/2"-20
Gaskets Included: No
Crank Scraper Included: No
Oil Pump Included: No
Oil Pump Driveshaft Included: No
Note: Fits tube chassis race cars only. Max stroke with aluminum rods is 4.250".
Quantity Sold as: Individually
|
