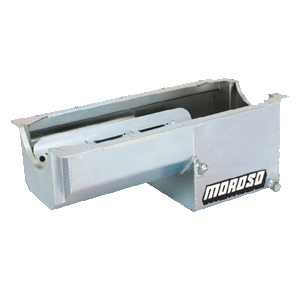

Moroso "Eliminator" Drag Race Oil Pan
These pans improve oil control for solid, horsepower gains. The large power kickout, integral crank scraper, windage tray and internal baffling insure quick oil return to the pickup area.
• Accepts 4.250" stroke with steel rods
• Core based oil pan, utilizing stock pan rail bolt pattern
• Passenger side kick-out, with 8-1/4" rear depth, 4-3/4" front depth

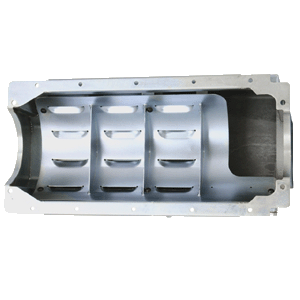

• Solid louvered tray with main cap partitions for maximum power and oil control
• For use with 168 and 153 tooth flywheel combinations
• Clears most cross-members
• Passenger side dipstick
• Clear zinc plated steel pan
Part Type: Oil Pan
Application: Chevrolet Small Block Dart/Rocket
Oil Pan Style: Drag Race
Oil Pan Capacity: 7 Quarts
Oil Pan Depth: 8.250"
Oil Pan Sump Depth: 8.250"
Oil Pan Sump Length: 10.031"
Sump Location: Rear
Sump Style: Wet
Kicked Out Sump: Yes
Rear Main Seal Style: 2-Piece
Stroker Clearanced: Yes
Maximum Stroke with Steel Rod: 4.250"
Dipstick Provision: No
Dipstick Location: Passenger Side
Dipstick Included: No
Baffled: Yes
Trap Door Baffle: No
Crank Scraper Included: No
Windage Tray Included: Yes
Sump Tray Included: No
Oil Level Sight Plug: No
Oil Temp Fitting: No
Pickup Included: No
Recommended Pickup for M55 Style Pump: MOR24171
Recommended Pickup for M55HV Style Pump: MOR 24351
Oil Pump Included: No
Oil Pump Driveshaft Included: No
Drain Plug Included: Yes, Magnetic
Gaskets Included: No
Hardware Included: No
Oil Pan Material: Steel
Oil Pan Finish: Clear Zinc
Manufacturer: Moroso
Manufacturer's Part Number: 21019
UPC: 084663210198
Weight: 10.656 lbs.
Warranty: http://moroso.com/warranties
Quantity: Sold as Each
Note: Oil pan capacities DO NOT include oil filter capacity.
|
