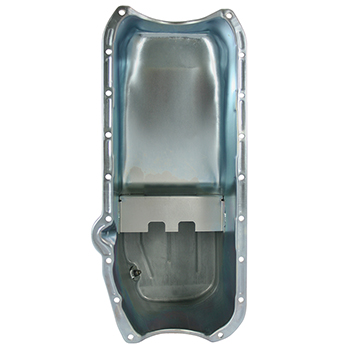

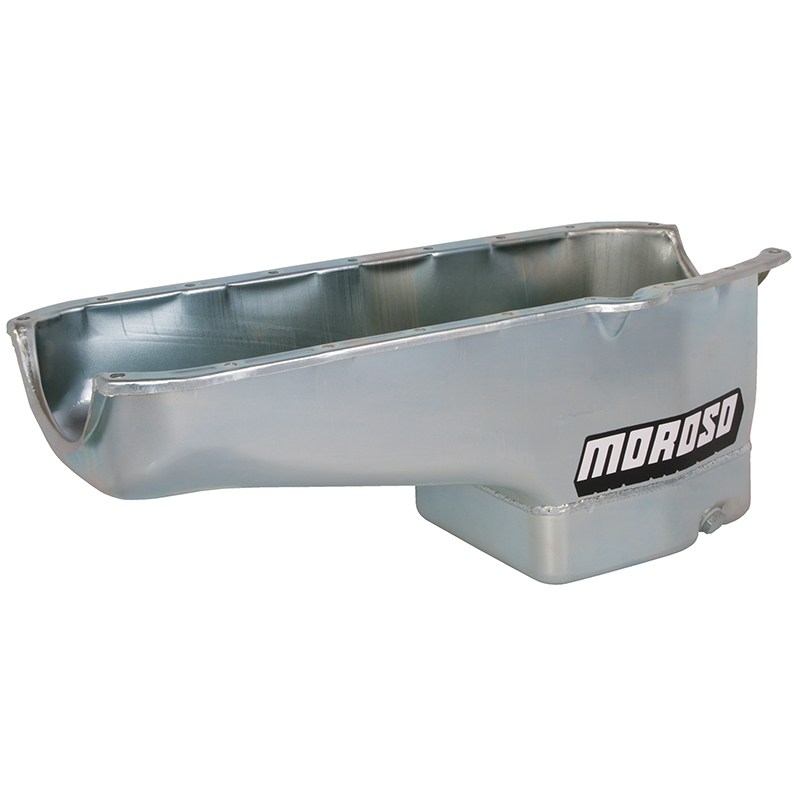

Moroso Deep Sump Oil Pan
Increased capacity and improved oil control. Many are specially baffled with a swinging trap door. The one-way baffle keeps the oil contained in the pickup area to prevent starvation under hard acceleration.
Part Type: Oil Pan
Application: Chevrolet Small Block Pre-1980
Oil Pan Style: Street/Strip Deep Sump
Oil Pan Capacity: 6 Quarts

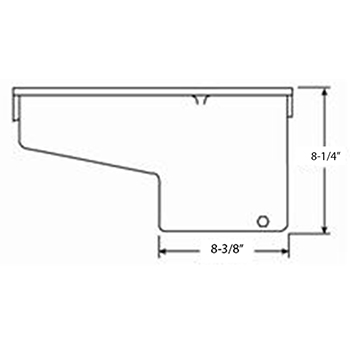

Oil Pan Depth: 8.250"
Oil Pan Sump Depth: 8.250"
Oil Pan Sump Length: 8.375"
Sump Location: Rear
Sump Style: Wet
Kicked Out Sump: Yes
Rear Main Seal Style: 2-Piece
Stroker Clearanced: Yes
Maximum Stroke with Steel Rod: 3.800"
Dipstick Provision: Yes
Dipstick Location: Driver Side
Dipstick Included: No
Baffled: Yes
Trap Door Baffle: Yes
Crank Scraper Included: No
Windage Tray Included: No
Sump Tray Included: No
Oil Level Sight Plug: No
Oil Temp Fitting: No
Pickup Included: No
Recommended Pickup for M55 Style Pump: MOR24170
Recommended Pickup for M55A Style Pump: MOR 24350
Recommended Pickup for M155HV Style Pump: MOR24360
Oil Pump Included: No
Oil Pump Driveshaft Included: No
Drain Plug Included: Yes, Magnetic
Gaskets Included: No
Hardware Included: No
Oil Pan Material: Steel
Oil Pan Finish: Clear Zinc
Manufacturer: Moroso
Manufacturer's Part Number: 20180
UPC: 084663201806
Weight: 10.656 lbs.
Warranty: http://moroso.com/warranties
Quantity: Sold as Each
Note: Fits all Chevy Chassis except 62-67 Nova/Chevy II.
Note: Oil pan capacities DO NOT include oil filter capacity.
|
