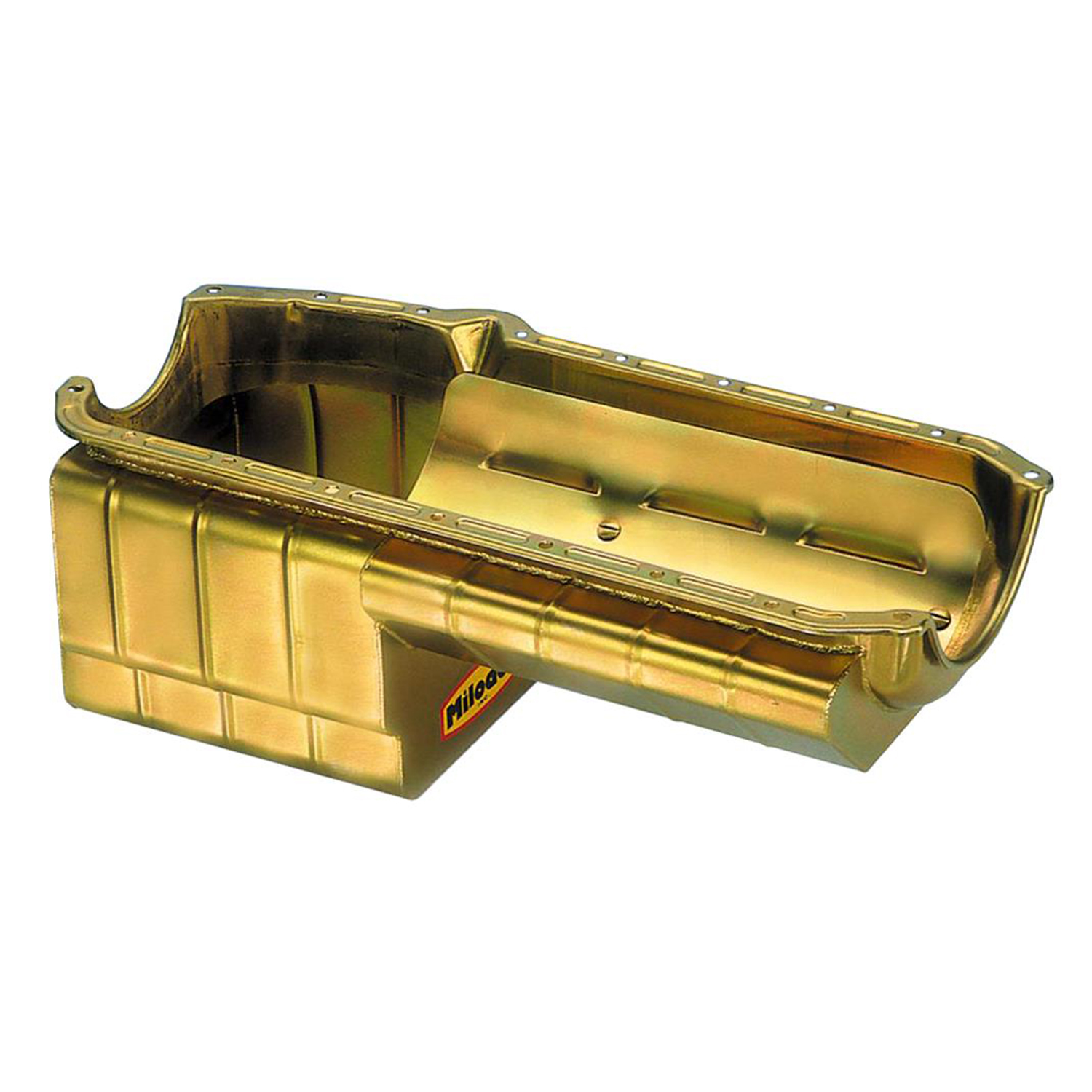

Milodon Pro Competition Stepped Sump Drag Race Oil Pan
For tube chassis cars, stock framed cars or dragsters where maximum power output and shut-off oil control is needed. Designed to fit crossmembered cars, such as Camaros and Chevelles, with only a reasonable amount of crossmember modification. This horsepower style pan incorporates lightweight steel construction with a full kick-out and full-length louvered tray assembly which gives maximum horsepower output. Will fit 4" stroke and steel Carillo or Eagle style rods.
Part Type: Oil Pans
UPC: 806621311675
Oil Pan Style: Drag Race
Rear Main Seal Style: 2-Piece
Sump Style: Wet
Dipstick Location: Driver Side
Sump Location: Rear
Oil Pan Color: Gold
Oil Pan Material: Steel
Oil Pan Depth (in): 8.250"
Dipstick Included: No
Dipstick Provision: Yes
Maximum Stroke with OE Rod: 4.000"
Oil Pan Capacity: 5.00 quarts
Stroker Clearanced: Yes
Baffled: Yes
Kicked Out: Yes
Oil Pump Included: No
Pickup Included: No
Windage Tray Included: Yes
Kickout Position: Driver and passenger side
Oil Pump Driveshaft Included: No
Drain Plug Thread Size: 1/2"-20
Crank Scraper Included: No
Gaskets Included: No
Hardware Included: No
Note: Should use "tall/narrow" engine mounts to allow easy fit, not the "short/wide" mounts. Front depth 4.250" deep. Requires thick front seal.
Quantity Sold as: Individually
|
