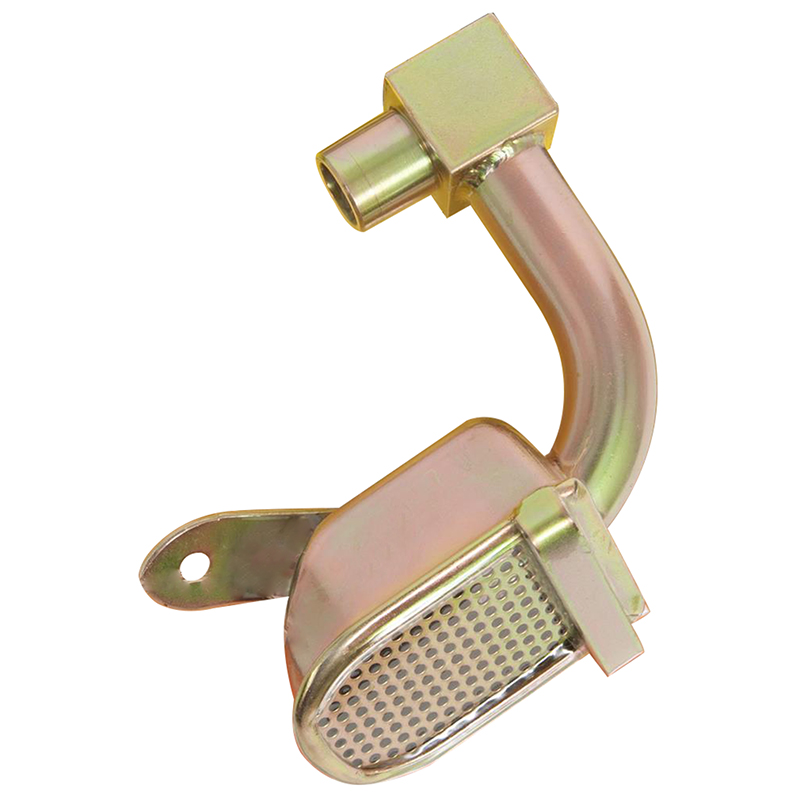

Milodon Oil Pump Pickup
All tube ends are CNC machined from solid billet bar stock and seal perfectly to the pump inlet and have exactly the correct amount of press fit. Between these CNC machined tube ends and the bolt-on support brackets, there is absolutely no need to weld pickups into the pump.
Milodon's exclusive clearance foot on the pickup bottom assures that in all cases, the engine can never be starved of oil due to insufficient pickup to pan floor clearance. This can be caused from running over an object, which dents the pan or an inaccurate initial pickup depth, otherwise unnoticed except to the bearings.
• Engineered for maximum flow & long term durability, even in extreme applications.
• Precision bent, thick wall tubing, larger than stock inside diameter.
• Heli-arc welded to aircraft specs.
• Milodon's exclusive high flow, compact pick-up head design.
• Milodon's exclusive pickup clearance foot assures proper oil flow.
• Engineered to work perfectly in the listed pan and application.
Part Type: Oil Pump Pickup
Application: Chevrolet Small Block
Oil Pan Style: Low Profile Street/Strip/Road Race
Oil Pan Depth: 7.875"
Oil Pump Style: High Volume
Pickup Mount: Press-Fit
Pickup Material: Steel
Pickup Finish: Gold Iridited
Manufacturer: Milodon
Manufacturer's Part Number: 18465
UPC: 806621184651
Weight: 1.00 lbs.
Warranty: All products sold by Milodon Inc. are warranted to be free from defects in workmanship and materials for a period of 120 days from the date of purchase. Milodon will repair or replace, at its option, any part that has been determined by Milodon to have failed due to defective workmanship or materials. The warranty does not cover failure of a product due to improper installation or maintenance, misuse, abuse, or unauthorized applications, removal or replacement, oil, shipping costs, damage to related components, costs incurred due to downtime of vehicle or towing, normal wear and tear, or products used for racing.
Quantity: Sold as Each
|
