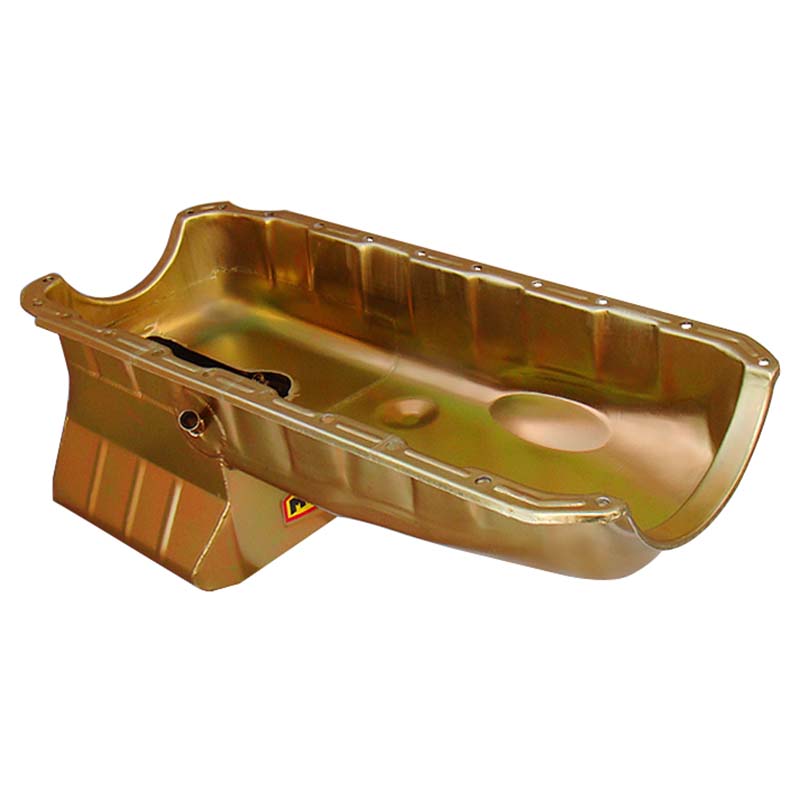

Milodon Low Profile Oil Pan
The low profile "triangulated" sump was developed by Milodon over two decades ago, giving both adequate ground clearance, as well as sufficient oil capacity for any kind of high performance use. Well engineered to actually free up horsepower. These pans are equally suited for the street or strip. Oil control baffles subdue oil movement 100% and provide increased horsepower.
Part Type: Oil Pan
Application: Chevrolet Big Block Mark IV 1965-1990
Oil Pan Style: Street/Strip Low Profile
Oil Pan Capacity: 7 Quarts
Oil Pan Depth: 8.500"
Oil Pan Sump Depth: 8.500"
Oil Pan Sump Length: 9.500"
Sump Location: Rear
Sump Style: Wet
Kicked Out Sump: Yes
Rear Main Seal Style: 2-Piece
Stroker Clearanced: No
Maximum Stroke with OE Rod: 4.500"
Dipstick Provision: Yes
Dipstick Location: Passenger Side
Dipstick Included: No
Baffled: Yes
Trap Door Baffle: No
Crank Scraper Included: No
Windage Tray Included: No
Sump Tray Included: No
Oil Level Sight Plug: No
Oil Temp Fitting: No
Pickup Included: No
Recommended Pickup for M77 Style Pump: MIL18301, MIL18201
Recommended Pickup for M77HV Style Pump: MIL18301, MIL18201
Oil Pump Included: No
Oil Pump Driveshaft Included: No
Drain Plug Included: Yes, Magnetic
Gaskets Included: No
Hardware Included: No
Oil Pan Material: Steel
Oil Pan Finish: Gold Iridited
Manufacturer: Milodon
Manufacturer's Part Number: 30950
UPC: 806621309504
Weight: 15.00 lbs.
Warranty: All products sold by Milodon Inc. are warranted to be free from defects in workmanship and materials for a period of 120 days from the date of purchase. Milodon will repair or replace, at its option, any part that has been determined by Milodon to have failed due to defective workmanship or materials. The warranty does not cover failure of a product due to improper installation or maintenance, misuse, abuse, or unauthorized applications, removal or replacement, oil, shipping costs, damage to related components, costs incurred due to downtime of vehicle or towing, normal wear and tear, or products used for racing.
Quantity: Sold as Each
Note: Fits all Chevy Chassis except 62-67 Nova/Chevy II.
|
